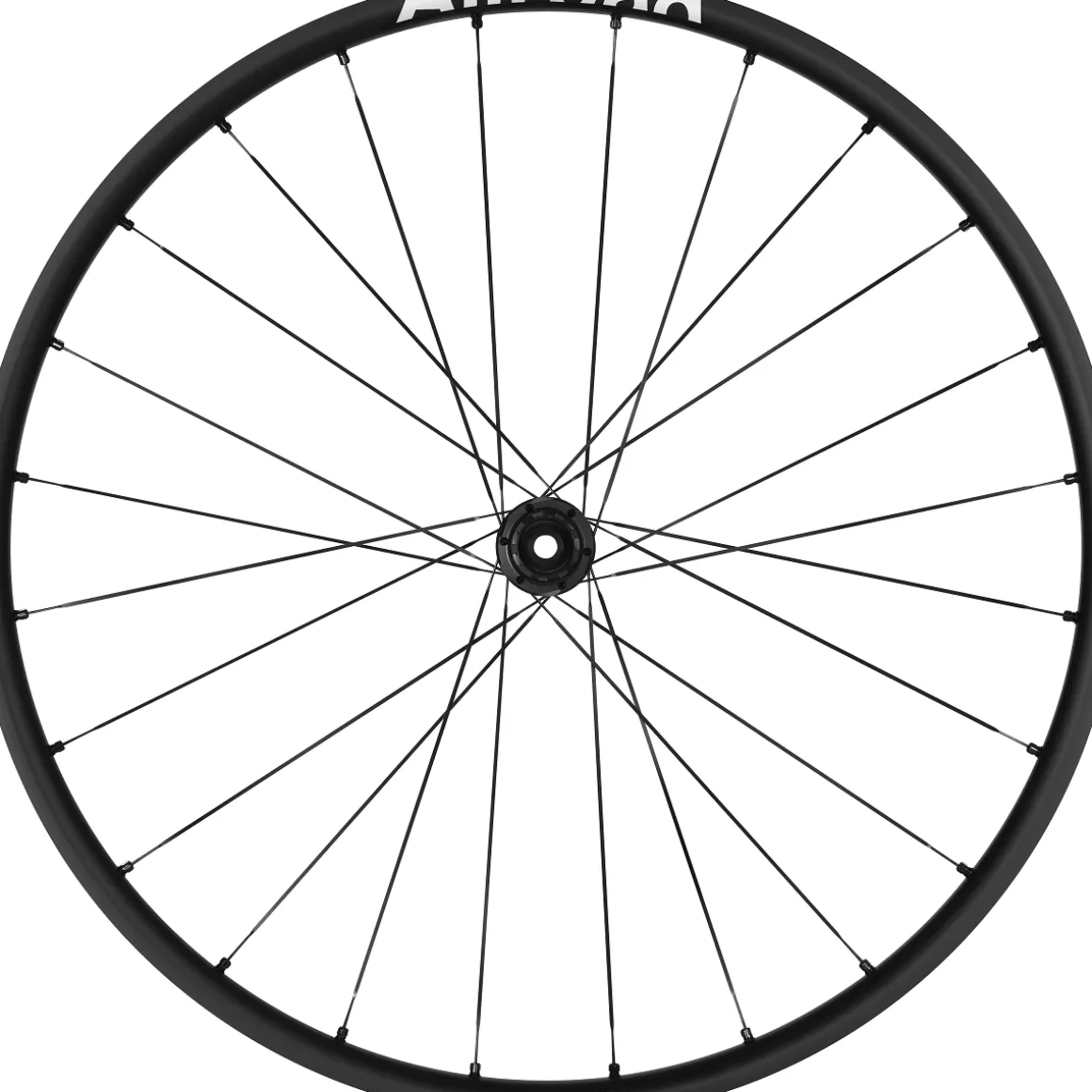

Allroad S Disc Centerlock 28“/700C Gravel Rear Wheel SHIMANO HG

The Allroad S Disc rear wheel from Mavic not only feels at home on asphalt, but is also robust enough to easily cope with poorly maintained roads, dusty gravel roads or light off-road use!
This makes it perfect for all your adventures – from road bike touring to gravel and bikepacking!

For the model year 2024, Mavic has equipped the Allroad S with a hookless UST rim made of robust Maxtal aluminium that can take up tyres up to 64 mm. Its performance is optimised with the help of Mavic Fore technology. Thanks to special Fore screw nipples, holes in the rim base are not required here, which improves the firmness and stiffness of the rim and eliminates the need for additional rim tape. Thanks Mavic’s UST tubeless technology, you can also benefit from lower rolling resistance, increased puncture protection and more comfort when riding tubeless.

The hub of the Mavic Allroad Disc rear wheel also meets these requirements and can shine with double-sealed industrial bearings with self-adjusting bearing preload (QRM Auto). In addition, the Instant Drive 360 freewheel with 9° degree engagement ensures fast propulsion and high durability, which can give you a noticeable advantage, especially when off-roading.

With its discreet design, the Mavic Allroad S Disc rear wheel not only rides fast, it also looks fast! The matt lacquered front hub, the high-quality SUP-welded and almost invisible rim seam as well as deep black bladed spokes give the wheel a premium look that stands out from the crowd.

Top technologies:
Maxtal: Light and strong – this special aluminium alloy offers a better strength-to-weight ratio than conventional 6106 alloys.
SUP (Soudé Usiné Process): Particularly stable, welded rim joint where the weld seam of the rim joint is perfectly flat milled for a seamless, smooth transition to achieve balanced rotation without brake vibrations.
UST tubeless technology: Refers to Mavic tubeless technology, in which the rim and tyre are perfectly matched for a complete tubeless system through exact harmonisation.
ID 360 Instant Drive:
A lightweight and low-friction Dual Ratchet freewheel system with a fast 9° engagement angle. Thanks to the modular hub design, it offers high compatibility with common axle types and freewheel standards.
Fore tapeless tubeless technology: With Mavic Fore Technology, the spokes are connected directly to the lower rim bridge with a special screw nipple in an incorporated threaded receptacle to increase the resistance of the rim. The closed rim bed remains intact as part of the tubeless system. This makes it easy to change spokes and saves the extra weight of the rim tape.
QRM Auto (Qualité de Roulements Mavic Auto): Smooth-running, double-sealed and maintenance-free industrial bearings with high dimensional accuracy and self-adjusting bearing preload.

Technical details:
Rim material: Maxtal aluminium
Wheel size: 28″ / 700C
UST Road Tubeless
Hookless rim profile
Rim width: approx. 28 mm
Rim depth: approx. 22 mm
Inner rim width: 25 mm
ETRTO: 622-25TSS
For Presta valve
Max. tyre pressure: 4.05 bar / 59 PSI (with 30 mm tyre width)

Spokes: double butted, straight aero steel spokes (straight pull)
Number of spokes: 24 pcs
Spoke pattern: 2-cross
Nipples: Fore aluminium nipples

Hub material: aluminium hub body, aluminium axle
Brake disc mount: Centerlock
Freewheel: robust Instant Drive 360 freewheel system (toothed disc system)
Compatibility: 8-/9-/10-/11-/12-speed SHIMANO HG ROAD
Bearings: self-adjusting, sealed cartridge bearings (QRM Auto)
Hub width: 12 x 142 mm thru axle
Weight: approx. 950 g
Recommended tyre width: 30 – 64 mm (1.20″ to 2.50″)
Recommended max. system weight: 120 kg (cyclist, bike, gear and luggage)
ASTM category 2: for on and off-road use with jumps up to 15 cm

In the box:
1 Mavic Allroad S Disc Centerlock 28″/700C Gravel Rear Wheel SHIMANO HG
1 Mavic UST valve

Note:
Please make sure to fill the tyre with sufficient sealant before using the Mavic UST wheels in tubeless mode!
