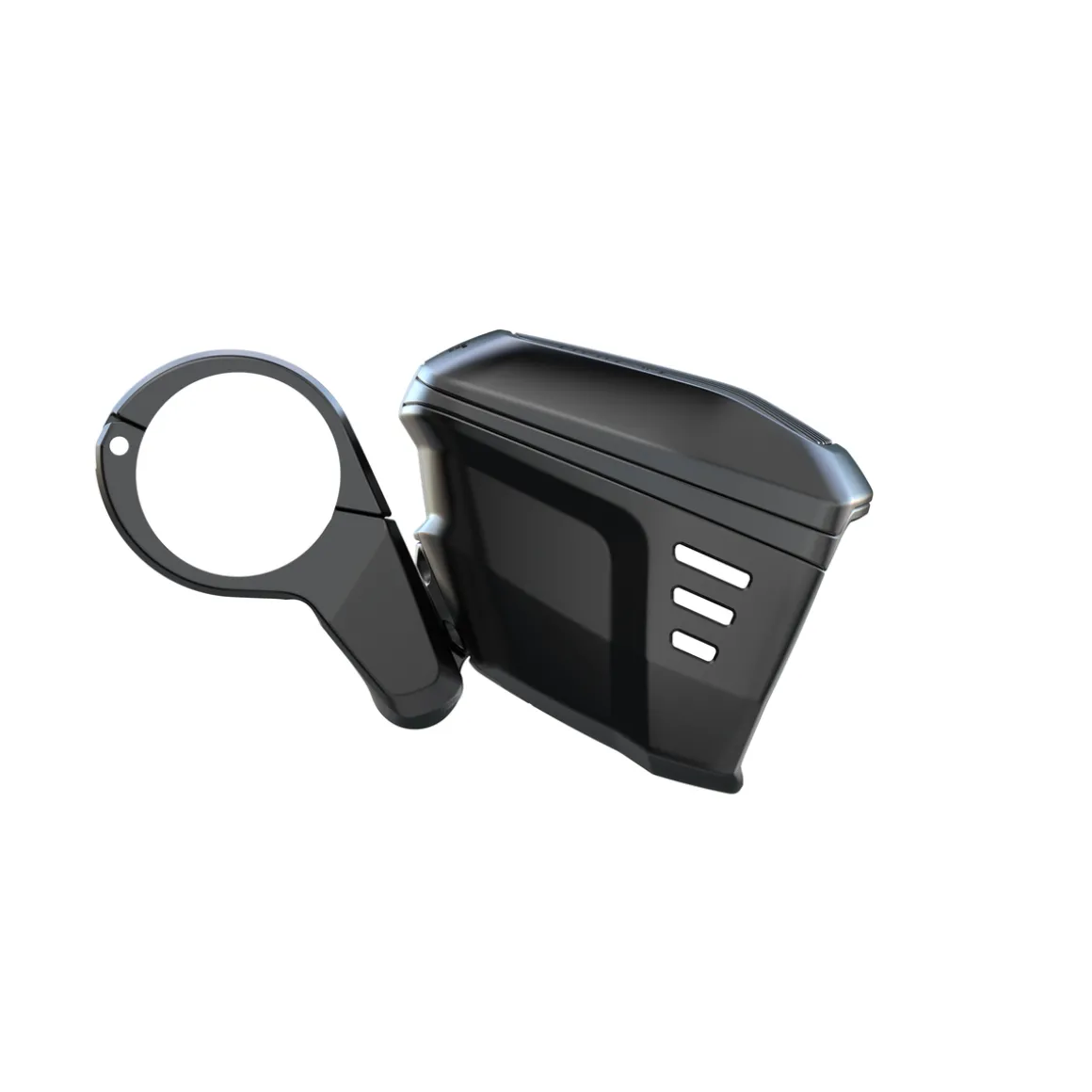

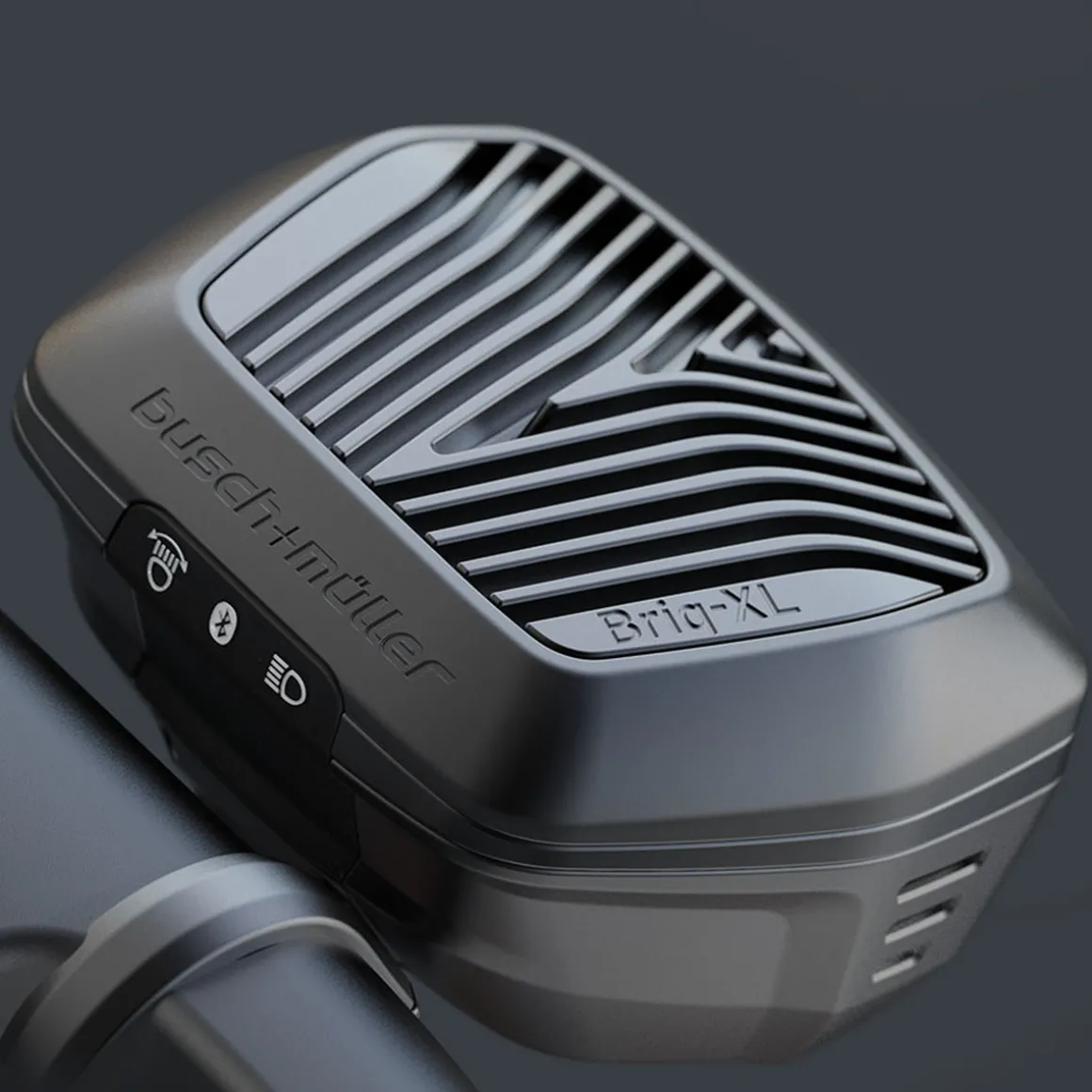

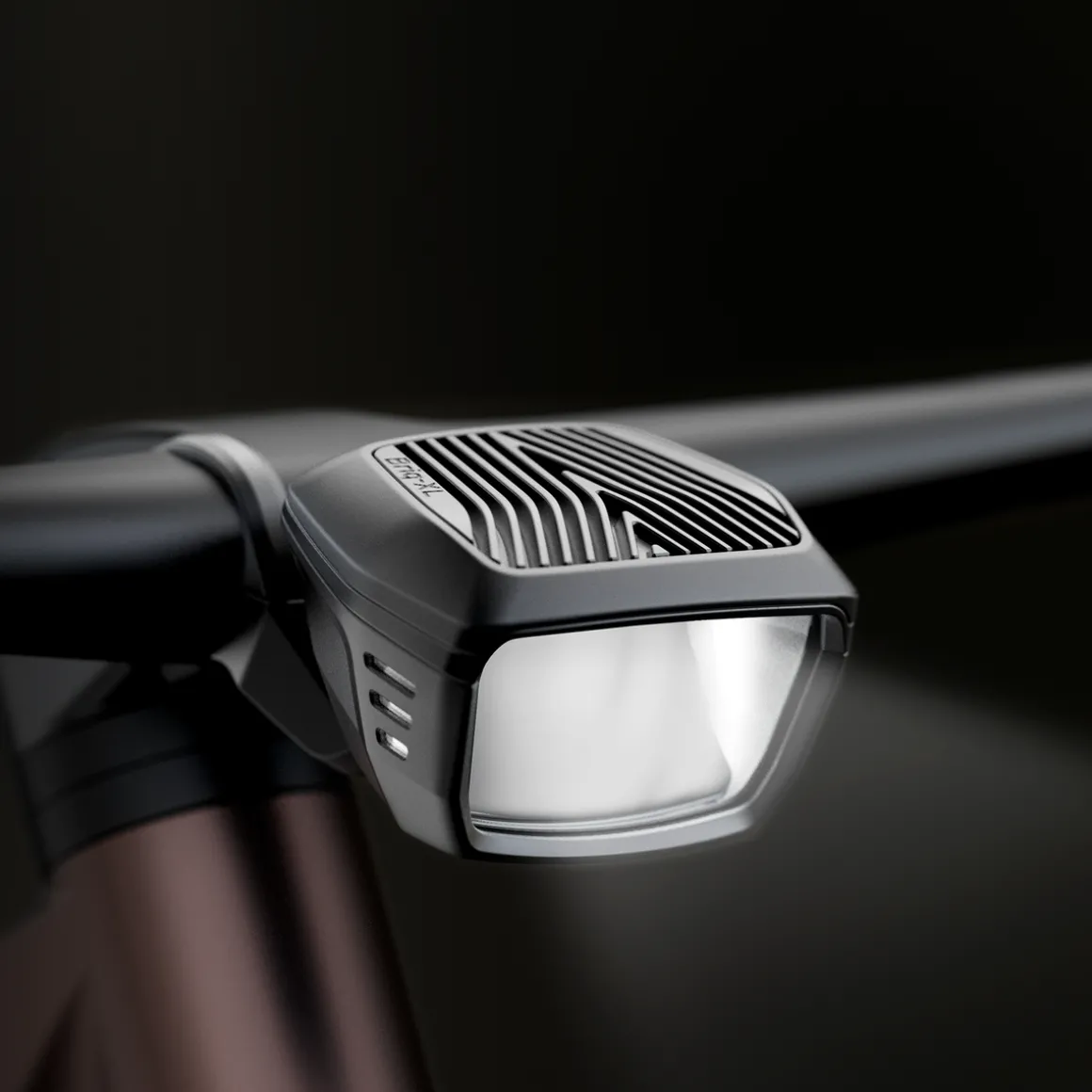

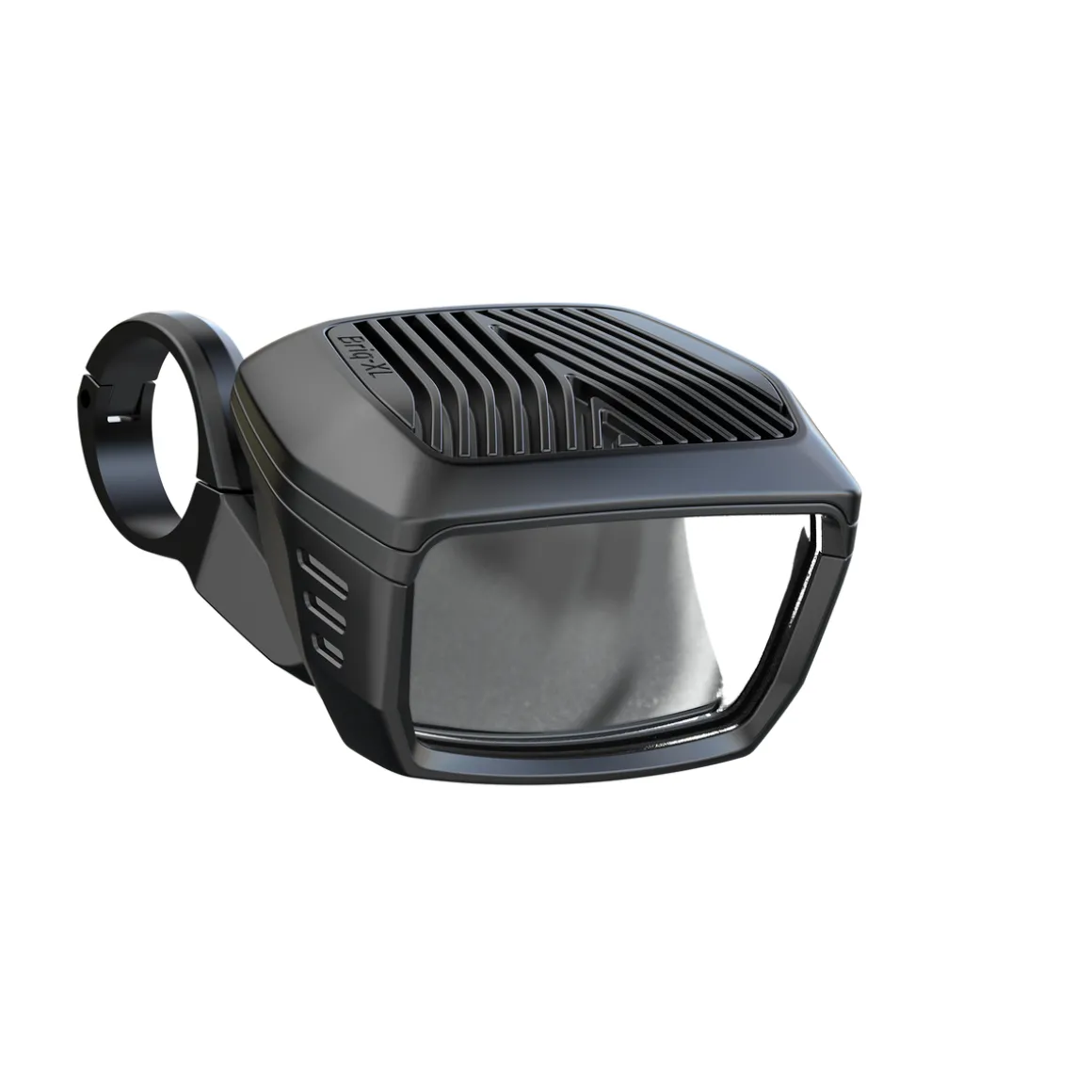

Briq-XL E Headlight with Curve Light

With up to 220 lux lighting power, switchable high beam and digital curve light, the Briq-XL E front light is positioned at the very top of the Busch und Müller e-bike product range.

The front light combines a large reflector with smart control electronics. This not only enables it to create a homogeneous and wide carpet of light with a sharp cut-off line on the road, but also outstanding energy efficiency and high durability.

Another special highlight is the digital curve light: It switches on sequentially depending on the handlebar angle and the angle of inclination of the bike, thus enabling dynamic illumination when cornering. At the same time, the light on the outside of the bend is reduced so you don’t dazzle oncoming traffic. Furthermore, there is a switchable high beam to enable anticipatory driving, especially when riding at speed. The range of features is rounded off with sensor-controlled daytime running lights.

The front light is controlled via the handlebar control unit supplied. This has an app connection via Bluetooth, which can be used to configure various light modes with individual settings for the handlebar buttons.

Details:
Powerful e-bike headlight with digital curve light

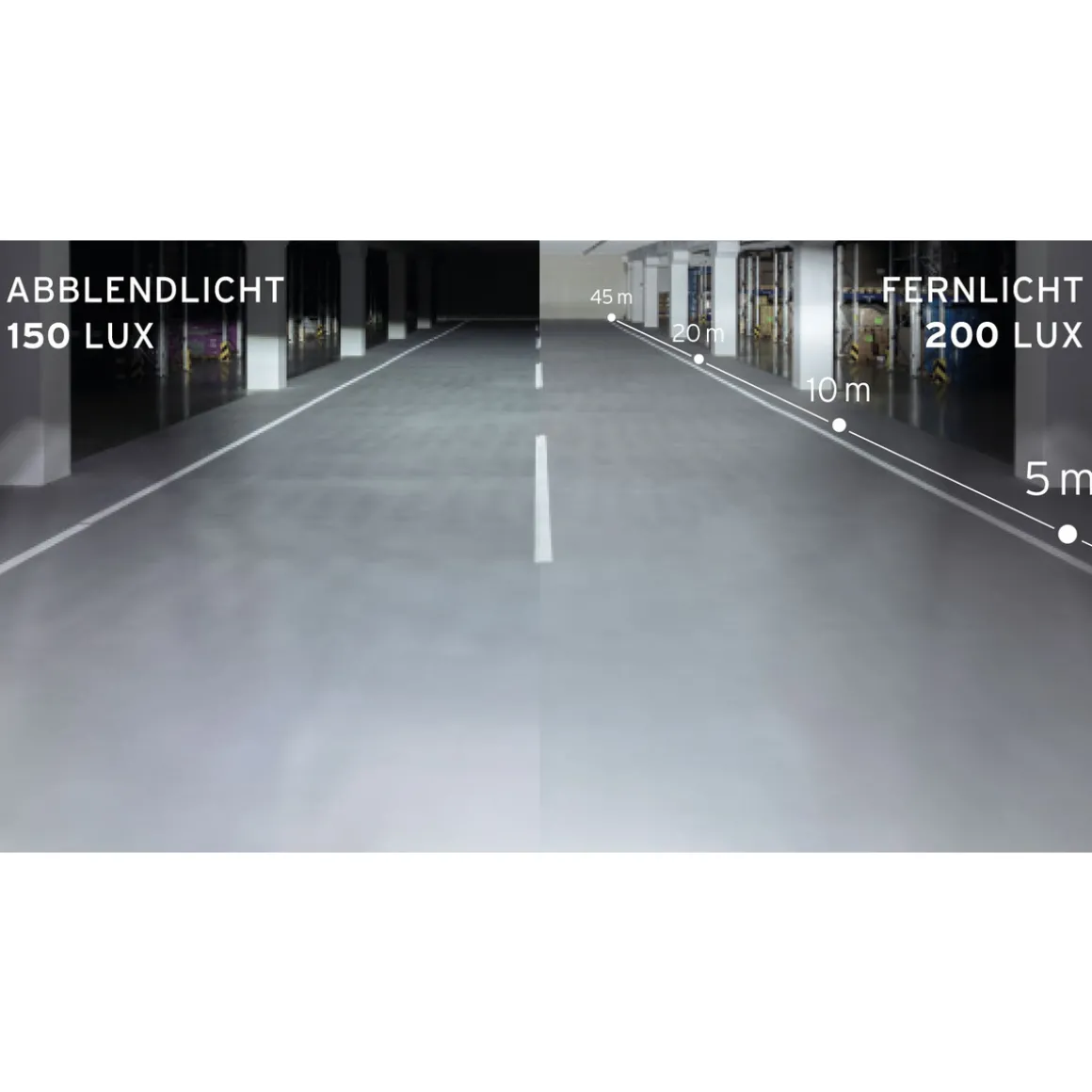

Homogeneous and wide light range with up to 220 lux lighting power
Digital curve light with tilt sensor and adaptive bend lighting
Bright dipped beam with close-range illumination
Switchable high beam for anticipatory riding
Sensor-controlled daytime running light enables increased visibility

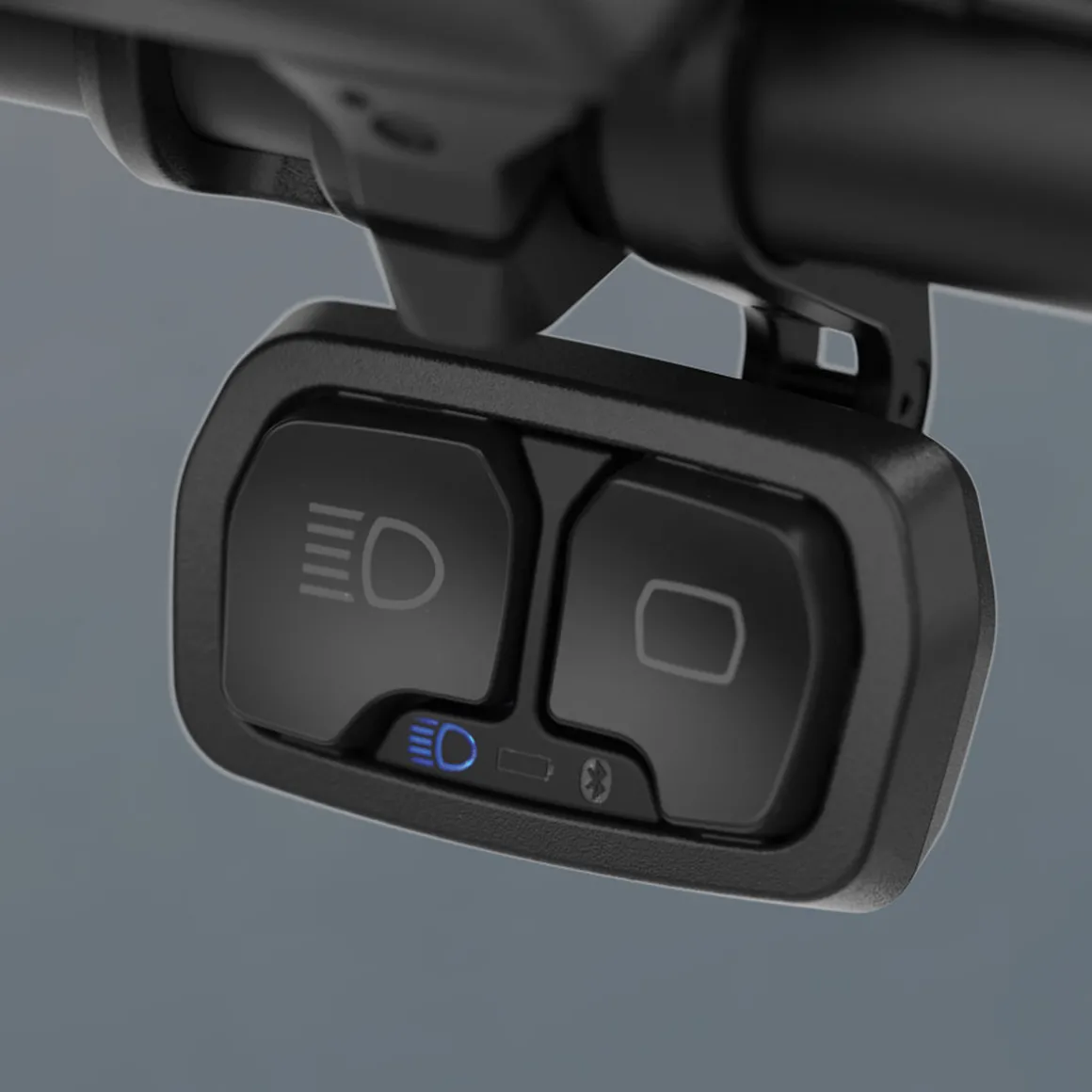

Handlebar control unit with two buttons
Individual configuration of the stored light profiles (app required)
Control LEDs for high beam, curve light and bluetooth
Robust aluminium lamp housing with lateral light outlets
Sturdy aluminium mounting clamp
According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h

Technical details:
Material: Aluminium (lamp housing, handlebar mount)
Installation: Handlebar mount for lamp body (Ø 31.8 mm), handlebar mount for control unit (Ø 22.2 mm)
Power supply: from 12 to 60 volts direct current
Power consumption: 16–60 W
Lamp: LED
Lighting power: up to 220 lux
Lateral visibility: yes
Daytime lighting: Yes
Light modes: Dipped beam, curve light, high beam, daytime running light
Dust- and waterproof in accordance with IP67
Dimensions: approx. 74 x 94 x 64 mm
Weight: approx. 320 g

In the box:
1 B+M Briq-XL E headlight
1 handlebar mount
1 handlebar control unit incl. connection cable

Note:
The front light is compatible with a direct current power source (DC) of 12 to 60 volts. Some e-bikes can provide this, but NOT all do!
The light connection of your drive system must provide a rated power of at least 16 watts to operate the headlight.
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

Tip:
You can find a replacement handlebar mount under prod. code: 2351861.
