COMPIT+/Power Smartphone Holder with Powerbank

Intelligently networked bicycle mobility – with products from the COMPIT Series by SKS Germany!
Derived from the words “Communication” and “cockpit”, COMPIT stands for a new generation of smartphone holders that integrate your bike’s display with modern communication technology on the handlebar in a clever, clean and compact way.

The COMPIT+/Power smartphone holder with power bank can be mounted on most bikes, especially on e-bikes/pedelecs with a central display from Bosch, Shimano or Yamaha. The mount is adapted so that the power bank and on-board computer form a closed unit on the handlebars, which keeps your docked smartphone securely and firmly in position even in rough terrain.

Depending on the display and the desired position, adapters or the extension set can help you to place the power bank with smartphone centrally under or in front of the display. Thanks to the oversized bayonet mount, the mobile phone can be easily be mounted horizontally or vertically in the holder. In addition, it can be precisely angled to the desired position for optimal readability.

The COMPIT+/Power Set with +COM/CHARGER Powerbank from SKS is all about cockpit integration and power. The performance of the COMPIT-compatible charging battery has doubled compared to the +COM/UNIT charging station, so you have an even longer-lasting power supply for mobile phones, navigation devices or action cameras. Power-hungry applications on smartphones can now be supported for longer with the Qi-certified +COM/CHARGER with inductive or wired charging capability, even charging multiple devices simultaneously. So you can get have more juice for navigating and recording the route, listening to music or simply communicating on the move.

In conjunction with the COMPIT bracket, the +COM/CHARGER can additionally be connected directly to the USB interface of the Bosch display via a USB cable and charged directly from the e-bike battery. At the same time, you can charge the battery of your connected smartphone. Perfect for touring cyclists who require high comfort and reliability when navigating but don’t want to pay attention to the battery charge of their smartphone.

Details:
Smartphone holder with powerbank from the SKS COMPIT system for handlebar mounting
For secure attachment and power supply (mobile phone requires COMPIT cover or bag)

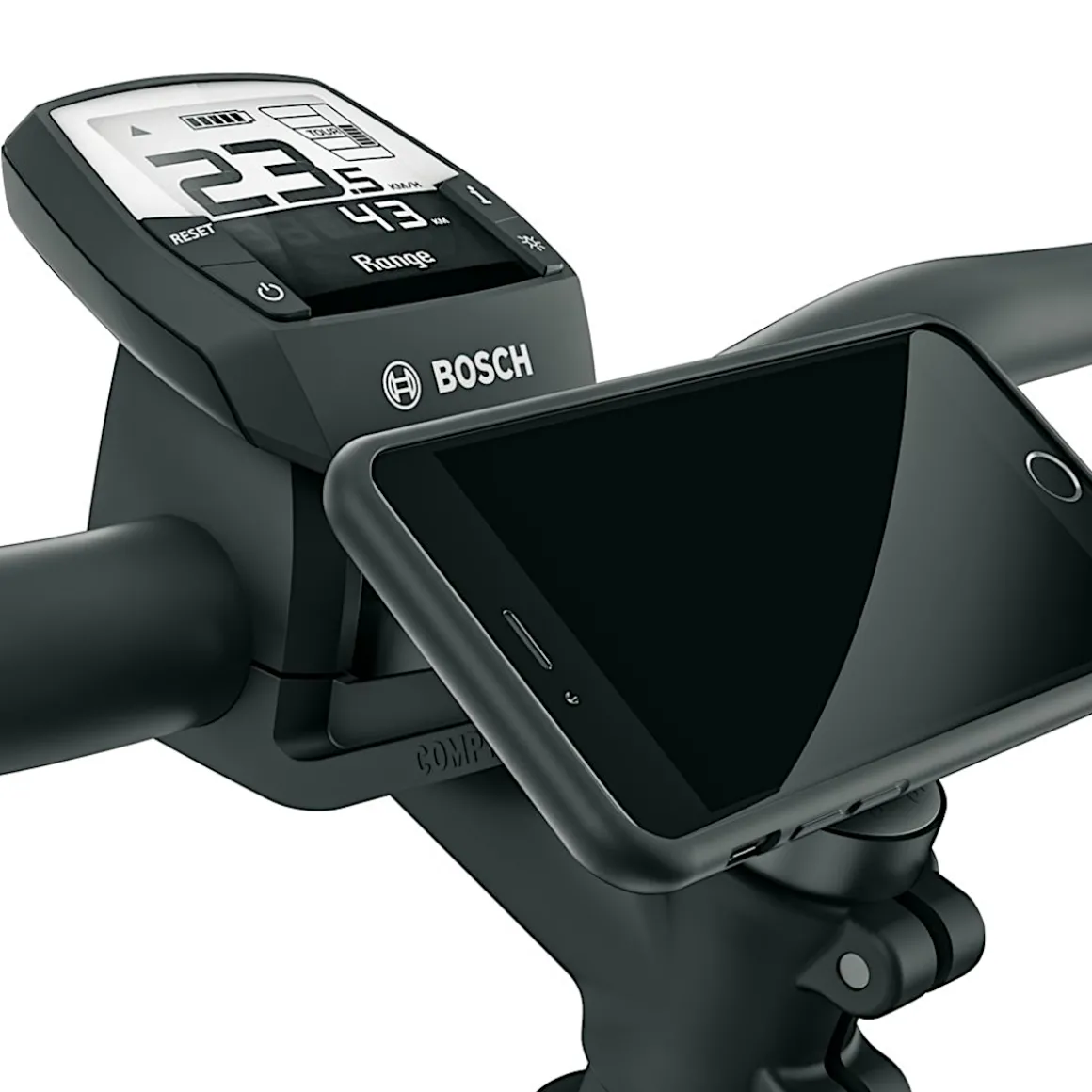

Additional mounting options for e-bikes with centre display (e.g. Bosch Intuvia/Nyon)*
Can be mounted in portrait or landscape mode*
Tilt adjustable to optimise display readability
Suitable for all standard round handlebar diameters
Mountable with max. 80 mm handlebar clamping width of the stem
Powerbank with digital battery capacity display 0 – 100
Fast charging function
USB port and inductive charging function
Charges 3 devices simultaneously (inductive and with cable)
Optical status indicator for wireless charging
Bayonet mount at the bottom for attachment to COMPIT holder
Bayonet mount on top for docking COMPIT-COVER or COM/SMARTBAG
Connection to e-bike electrical system with COMPIT connection cable

Technical details:
Compatible handlebar Ø: 22.2 / 25.4 / 31.8 / 35 mm
Stem clamp width: max. 49 mm (without clamping arms and spacers)
Distance between clamping arms: max. 80 mm (with spacers)
Battery type: lithium-polymer battery
Battery capacity: 10.000 mAh / 37 Wh
Dimensions: approx. 140 x 71 x 19 mm
Weight: approx. 250 g
Material of holder: plastic, steel
USB-C Input: DC 5 V-3.1 A / 9 V-2 A / 12 V-1.5 A
USB-C Output: DC 5 V-3.1 A / 9 V-2 A / 12 V-1.7 A
USB-A Output: DC 5 V-4.5 A / 9 V-2 A / 12 V-1.5 A
Inductive output power (QI): 5 W / 7.5 W / 10 W
Wireless efficiency: >70%
Magnetic field strength level: -7 . 26dBuA/m
Operation frequency: 110 KHz–205 KHz
Type of protection: IP54
Operating temperature: -10 °C to +60 °C
Charging temperature: 0° to 45° C

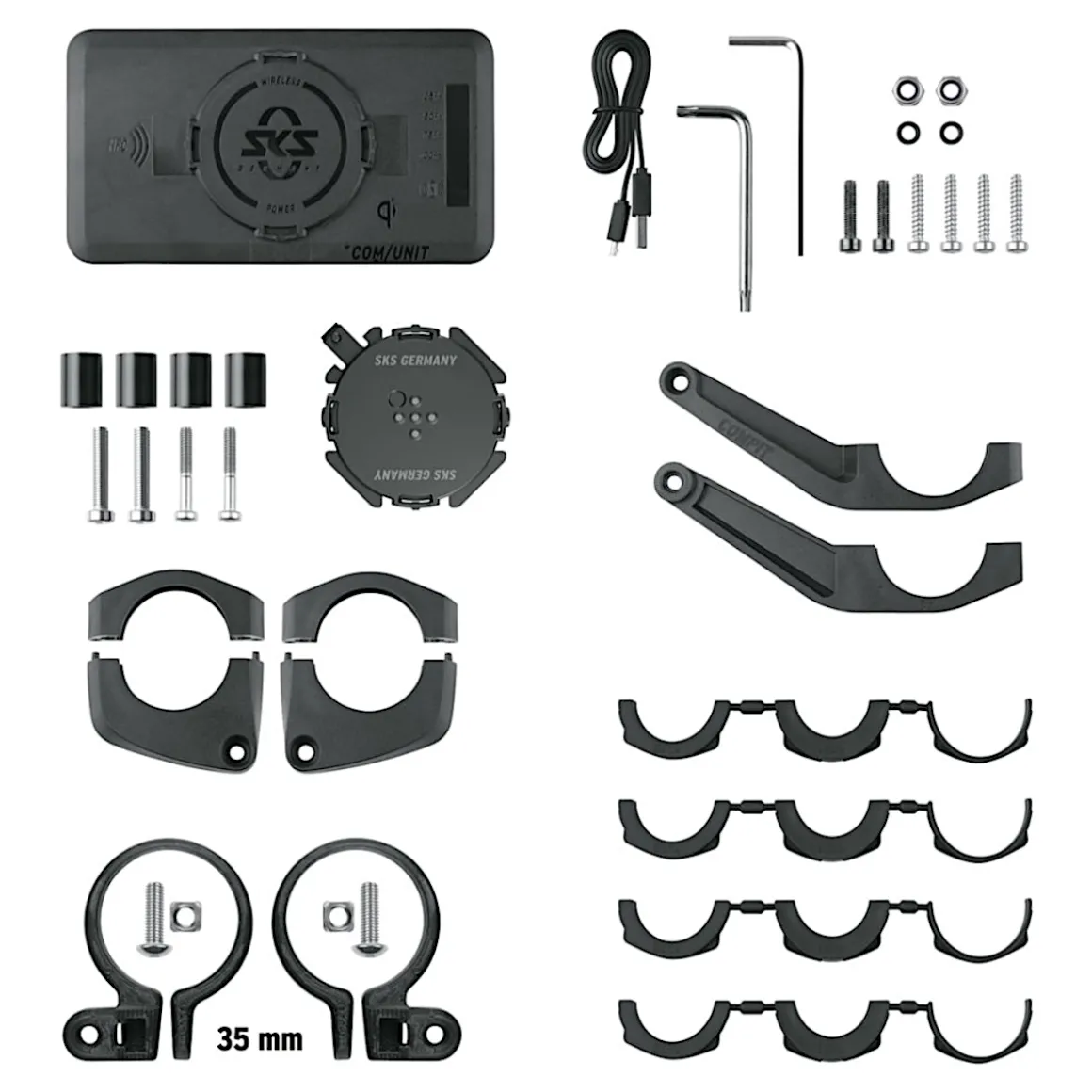

In the box:
1 docking station with O-rings and bolts
2 side panels for docking station
2 clamps for COMPIT without adapter
2 clamping arms for COMPIT with adapter for Bosch Intuvia
4 bolts 4 x 20 for the clamp arm attachment on the handlebars
2 COMPIT 35 mm clamping arms with bolts/nuts
4 reducer sleeves (for handlebar Ø 31.8 mm)
4 reducer sleeves (for handlebar Ø 25.4 mm)
4 reducer sleeves (for handlebar Ø 22.2 mm)
4 PVC spacer sleeves with bolts
1 +COM/CHARGER Powerbank
1 +COM/CHARGER USB charging cable
1 hex wrench 3 mm
1 star wrench TX20

*Attention:
With the Bosch Intuvia or Nyon display (up to model year 2020), you can mount the enclosed clamping arms directly on the display holder. With other centre displays, you can mount the clamping arms to the right and left of the handlebars. Please check in advance how wide your centre display is, including the bracket on the handlebar. If your e-bike display is mounted on the stem/headset (e.g. Bosch Kiox), you can instead mount the COMPIT clamping arms facing forwards.

Depending on the individual mounting option, the size of your smartphone, and possibly the length of the stem, it may be advisable or necessary to mount the powerbank with the phone in landscape format to ensure a clear view of the smartphone and e-bike display.

Thanks to the oversized bayonet attachment of the COMPIT smartphone holder, you can attach the +COM/CHARGER with a simple twist. The smartphone on the contrary directly attaches to the +COM/CHARGER(also via an oversized bayonet attachment) (optional smartphone cover / smartbag required!)

Tip:
Components of the SKS COMPIT+/Power Set are also available individually:
SKS COMPIT smartphone holder (product code: 232273401
SKS +COM/CHARGER (product code: 233348401)
SKS Germany COMPIT/E widening system for smartphone holders (product code: 233108201)

Other compatible SKS COMPIT smartphone holders:
SKS COMPIT stem smartphone holder (product code: 230746701)
SKS COMPIT/FLEXX smartphone holder (product code 233348501)
232274601 SKS COMPIT ANYWHERE Smartphone Holder (product code: 232274601)

Further optional accessories:
SKS COMPIT cable iPhone Lightning (product code: 228085301)
SKS COMPIT cable Micro USB (product code: 228085401)
SKS COMPIT cable Type C USB (product code: 228085501)
SKS COMPIT smartphone cover (product code: 2278623)
SKS COM/Smartbag Universal smartphone bag (product code: 230746801)
