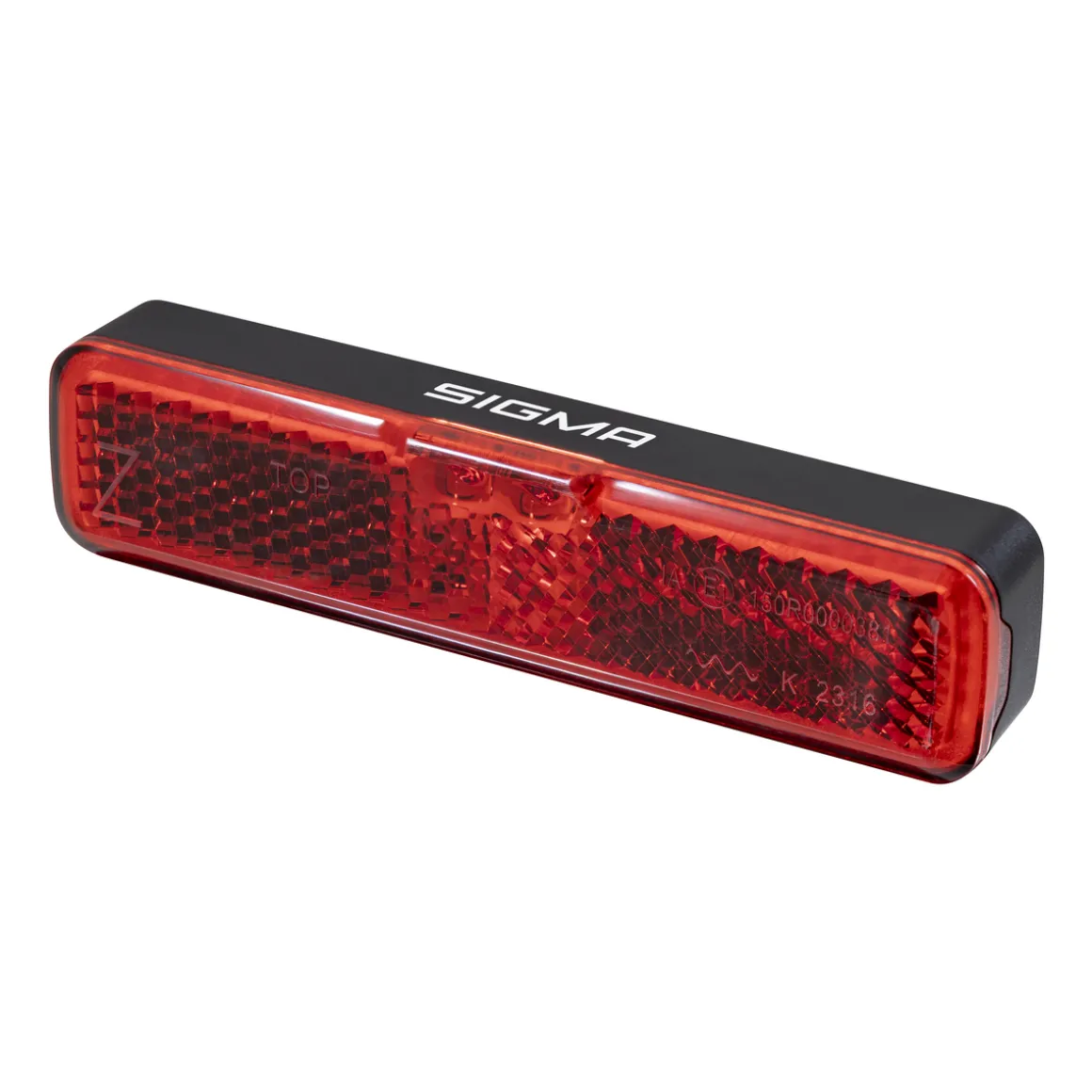

EOX RL Rack Brake E-Bike Rear Light with Brake Light Function

The EOX RL Rack Brake e-bike rear light from Sigma not only features a regular brake light, but also has an emergency brake light function.

An integrated accelerometer recognises the rider’s braking process, activating an additional LED. In the event of emergency braking, all the LEDs on the rear light flash to warn traffic behind of a hazardous situation.

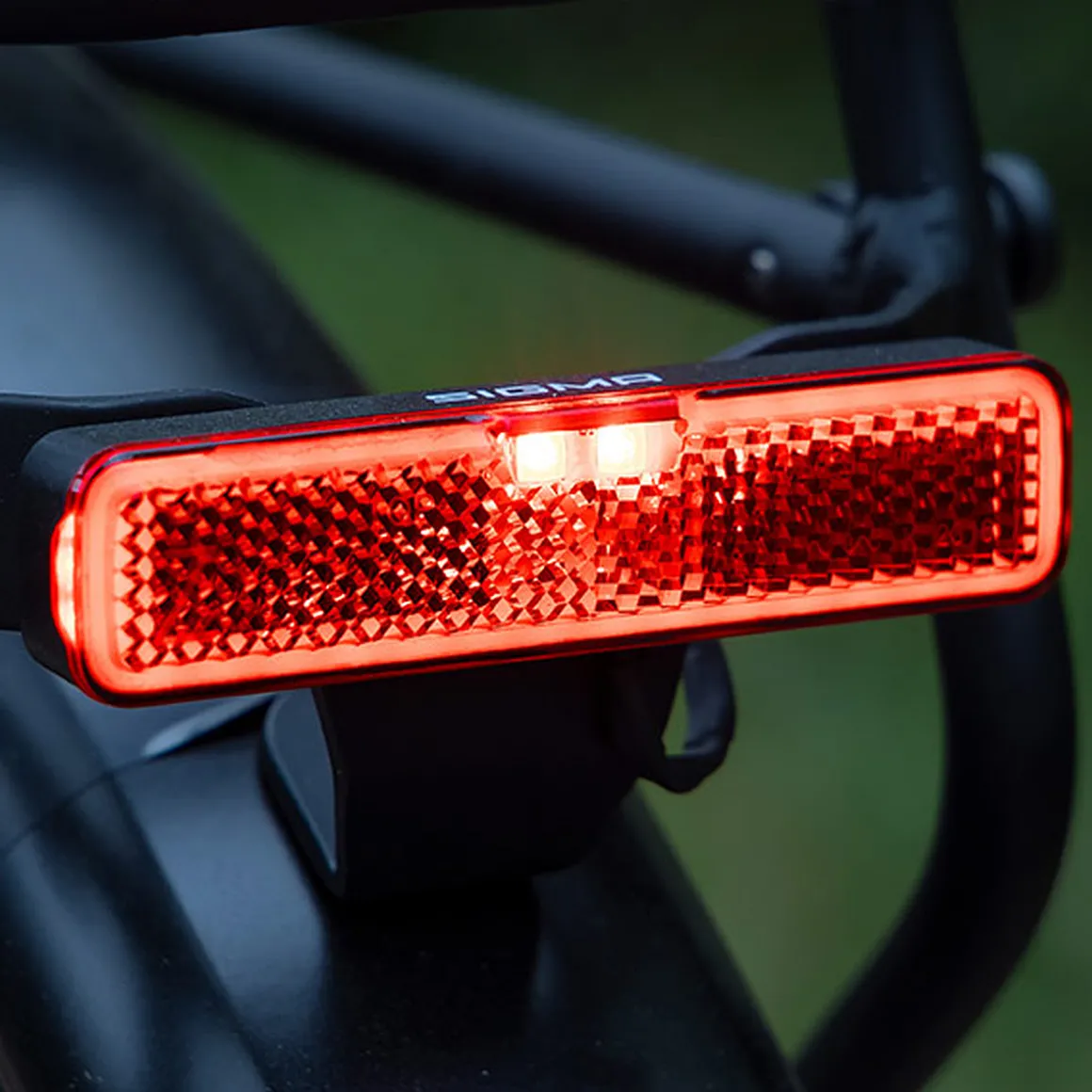

The EOX RL Rack Brake rear light uses two individual LEDs as well as COB LED technology, which creates a large, highly visible illuminated area.

Details:

• E-bike rear light with brake light function and emergency brake light function
• Braking process activates additional LED
• Additional emergency brake light warns road users travelling behind
• Combination of two individual LEDs and large illuminated area (COB LED technology)
• Integrated Z reflector
• For mounting on luggage racks with 50 mm hole spacing
• According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h


Technical details:

• Material: plastic
• Installation: luggage rack (50 mm bolt spacing)
• Power supply: from 6 to 48 volts direct current*
• Power consumption: approx. 0.55 W (continuous light), approx. 2 W (brake light)
• Lamp: LED
• Light flux: approx. 4.2 lm (continuous light), approx. 36 lm (brake light)
• Lateral visibility: yes
• Light modes: 3 (permanent light, brake light, emergency brake light)
• Integrated reflector: yes (Z reflector)
• Brake light function: yes
• Water-resistant rating IP44
• Dimensions: approx. 100 x 12 x 21 mm
• Weight: approx. 30 g


In the box:

• 1 Sigma EOX RL Rack Brake e-bike rear light



*Note:
The rear light is compatible with a direct current power source (DC) of 6 to 48 volts. Some e-bikes can provide this, but NOT all do!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

Tip:
You can find a Sigma front light for e-bikes that complements the rear light under prod. code: 2352262.
