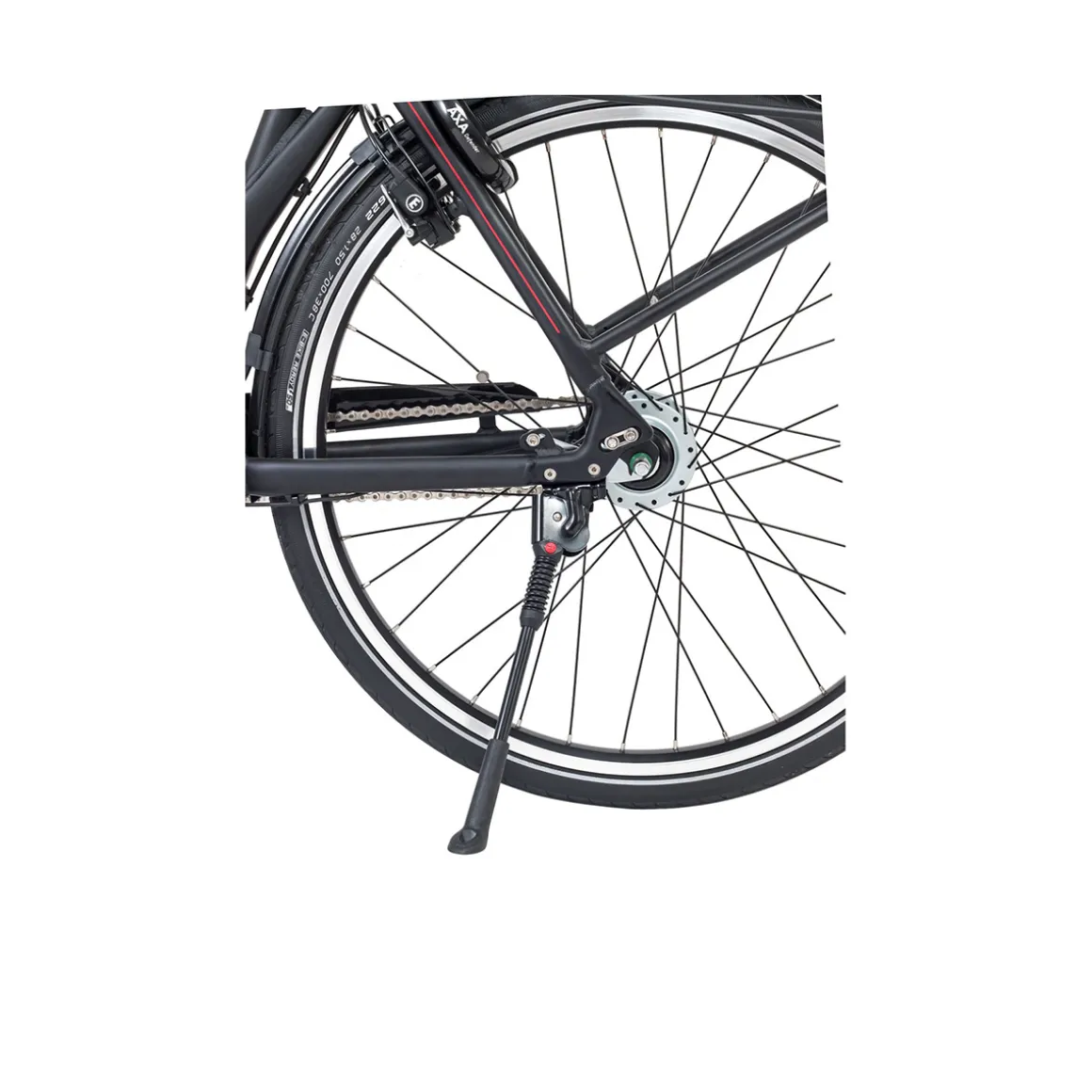

FIX 40 L Rear Mount Kickstand for 28-29" KSA 40

The FIX 40 rear kickstand by Hebie is a form-fit stand solution for direct dropout mounting on bikes with KSA 40 device. Black, simple, robust. The angled shape of the adapter plate that is mounted on the chainstay with two screws provides special stability.
Thus, the centre of gravity is above the robust kickstand that safely carries the load even on softer grounds thanks to a stable connection to the frame – which proves especially advantageous when using hook-on pannier bags or rack mounted e-bike batteries. The abrasion-proof plastic foot reaches up the tube to make the stand adjustable in length without tools. Besides, it protects the sensitive stand tube coating when the proven Hebie spring mechanism folds up. Thanks to the length-adjustable stand tube, the extra-long Fix 40 L rear mount kickstand is suitable for both 28 and 29 inch bikes.

Details:
For KSA 40 direct dropout mount
Form-fit connection to the rear stay
40 mm thread spacing
Massive steel head, 3mm thick
Wide plastic foot
Maintenance-free spring mechanism
Tool-free tube length adjustment
For 28“ and 29“ bikes
Max. load: 50 kg
Incl. Niro M6x16 bolts
Corrosion-protective coating
Weight: approx. 400 g (incl. mounting material)
Material: steel, plastic

Manufacturer’s ref.: 0661 ÜL E
