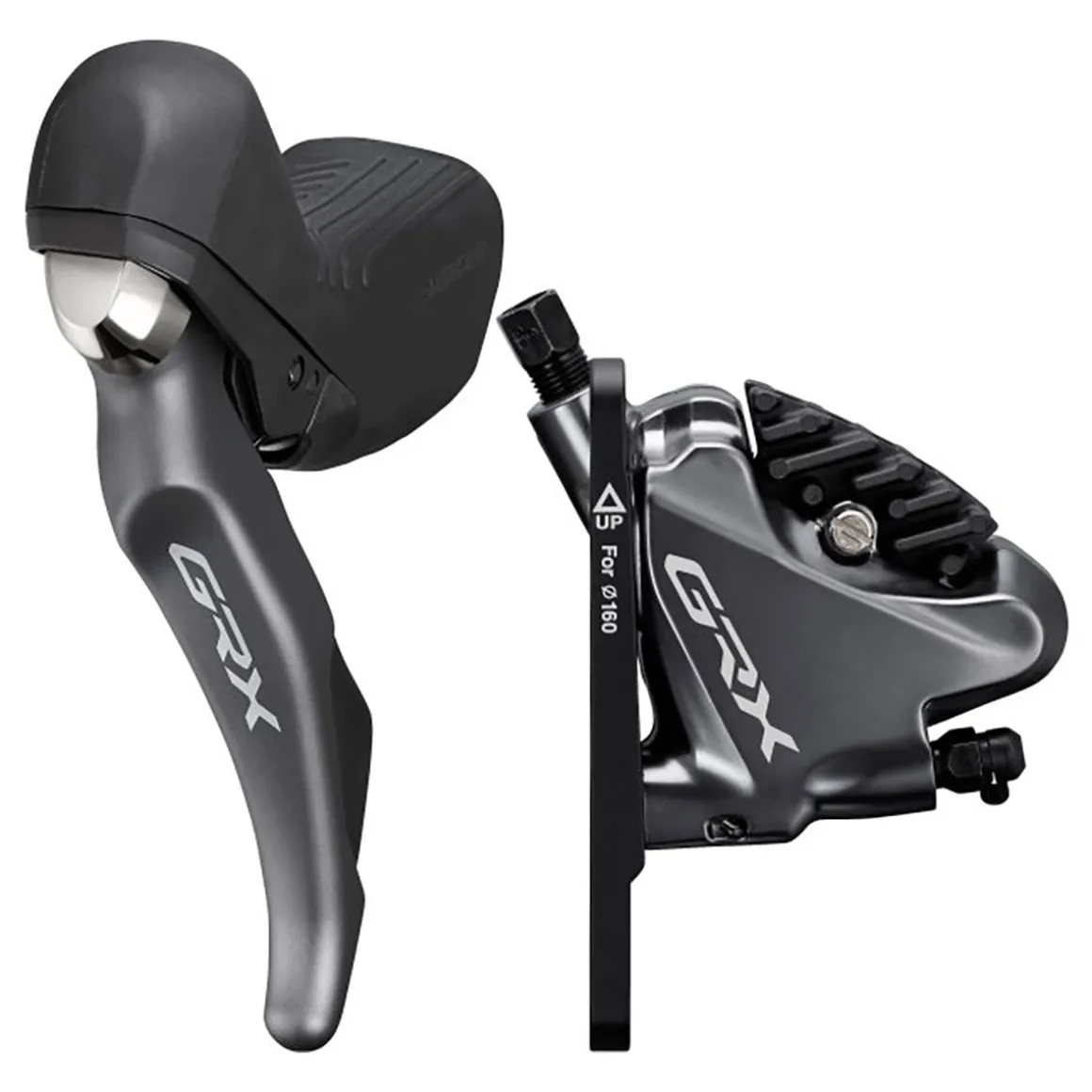

GRX ST-RX810 Left Brake Lever for Dropper Seat Posts incl. BR-RX810 Calliper

Explore beyond!
Discover the almost endless possibilities of modern road cycling with SHIMANO GRX components. The RX800 Series at Ultegra/XT level represents the performance-oriented top range of SHIMANO’s gravel- and cross-specific GRX groupsets.

The GRX ST-RX810 STI shift/brake levers with gravel-specific ergonomics are your control unit for maximum shifting performance and outstanding control on rough terrain. The left GRX BL-RX810 brake lever for easy 1×11 drivetrain configuration comes without shifting function, but instead with the option of operating a mechanically-driven dropper post. The STI-lever can also become a remote lever for the dropper post. So your dropper post integrates visually with a gravel or cross bike, while also being fast, easy, and intuitive to operate.

Featuring an 18mm higher axis point than “traditional” SHIMANO road shifters, a curved brake lever profile and an anti-slip textured finish, the levers offer best grip on rough gravel roads and challenging cyclo-cross rides. Yet, the GRX levers also impress with high comfort and reliability on bike-packing adventures with lots of luggage and on daily commutes to work.
In combination with a powerful hydraulic BR-RX810 Flatmount disc brake, SHIMANO offers you a braking system with great braking performance and comfortable braking power modulation thanks to the SERVO-WAVE technology. This provides high safety when riding your gravel bike in bad weather. A wide lever reach adjustment range tops off the package.

Details:
Left lever incl. brake calliper for front wheel
Compatible with mechanically-driven dropper posts that require less than 8.3 mm cable stroke and where the gear cable can be attached to the post
Custom ergonomics (gravel-inspired ergonomics)
SERVO-WAVE technology for maximum braking performance and outstanding braking power modulation
ONE WAY BLEEDING for quick and easy bleeding
FREE STROKE ADJUST bite point adjustment
Constantly high braking power, even in bad weather

Specs:
Intended use: Gravel, Road, Cyclocross
Compatibility: 11-speed / single
Material: aluminium, composite
Brake lever: ST-RX810-LA (Front wheel: left lever (for adjustable seat posts, WITHOUT shifting function!))
Max. cable stroke 8.3 mm
Cable clips: at the seat post
Brake calliper: BR-RX810 (Flatmount, 2-piston system (ceramic), flat design)
Brake hose: SM-BH90
Brake fluid: SHIMANO mineral oil
Adjustable free stroke: yes
Lever reach adjustment integrated (with tool)
Hose length: 1000 mm (front wheel)
Brake pads: L03A Ice Tec (with cooling fins), organic
Weight brake lever: approx. 263 g (each)
Weight brake calliper: approx. 138 g (each)

In the box:
1 SHIMANO GRX BL-RX810-LA brake lever (front wheel, left, for adjustable seat posts, WITHOUT shifting function for 1 x 11 speed)
1 SHIMANO GRX BR-RX810 Flatmount front brake caliper (incl. 1 set of brake pads and adapter for 160mm disc rotor)
1 SHIMANO SM-BH90 brake hose (1000 mm)
1 SHIMANO OPTISLICK gear cable (1800 mm)
1 SHIMANO OT-SP41 outer gear cable

Filled and bled ready for installation.

Tip:
For the recommended SHIMANO SM-RT800 Ultegra Centerlock disc rotors see product code: 2260433.
For the single brake/shift levers for left or right side mounting incl. brake calipers see product code: 2286137.
