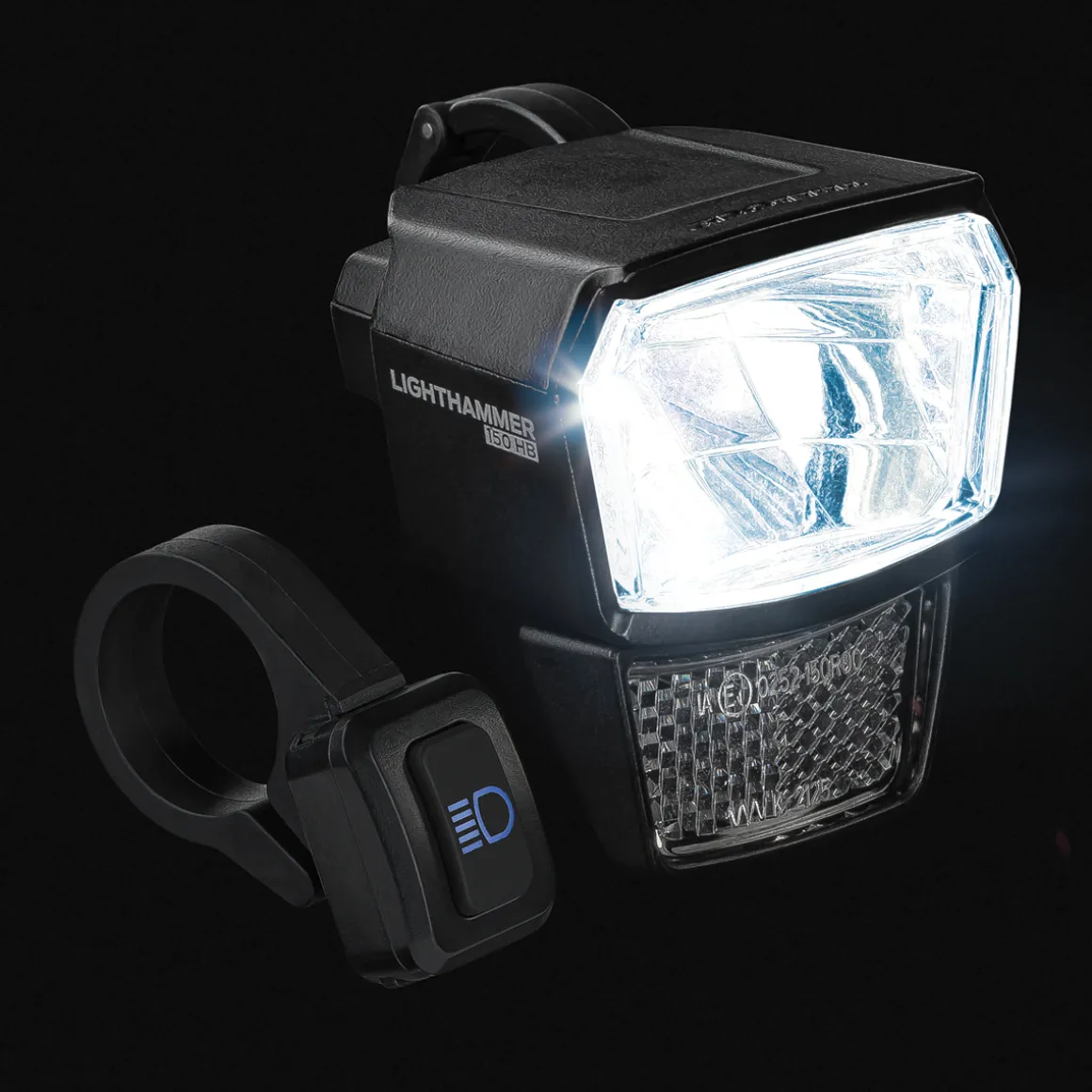

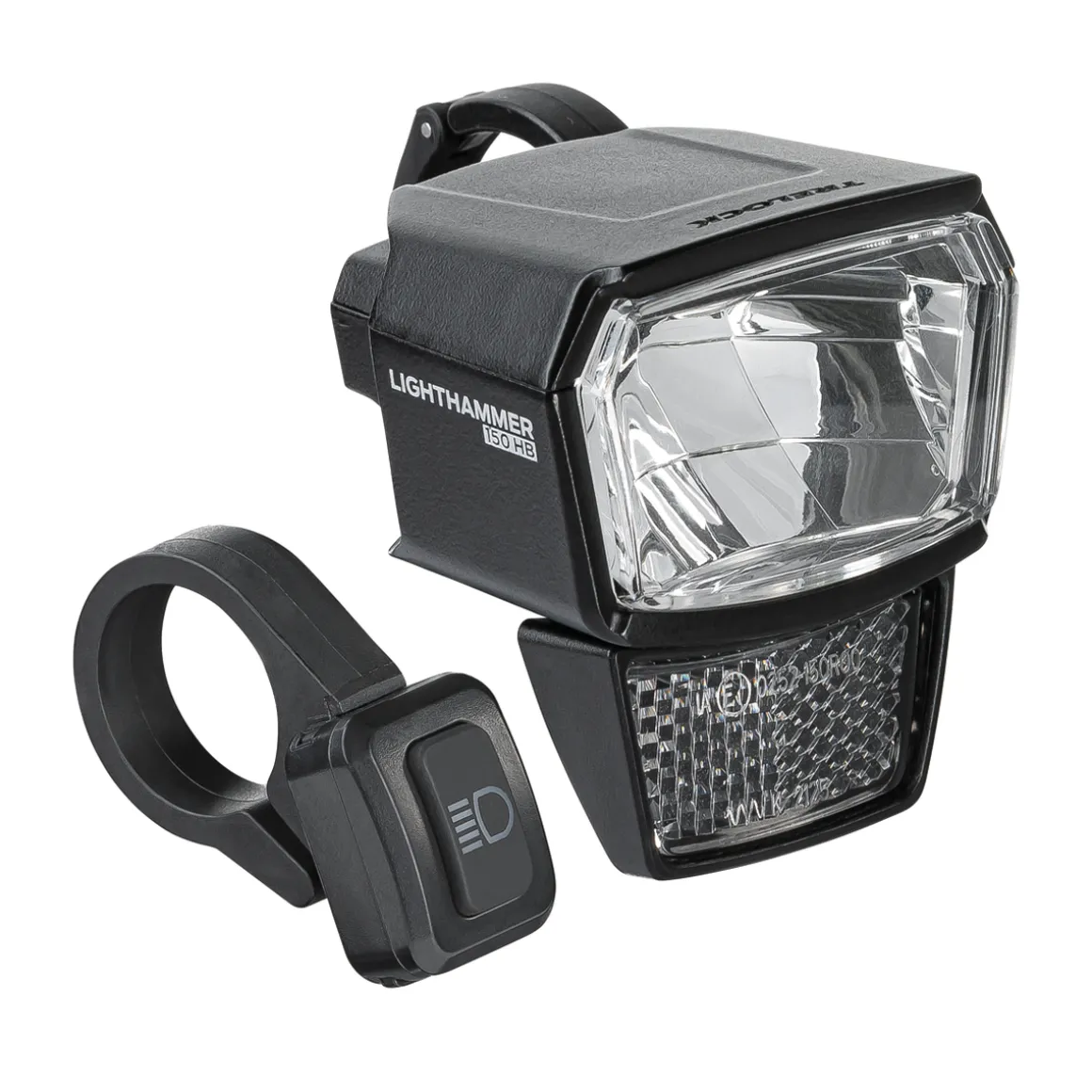

LS 940-HB Lighthammer E-bike Headlight with High Beam Function

With the LS 940-HB Lighthammer E-Bike front light, Trelock’s engineers have combined the latest LED technology with a sophisticated optical system that can impress with up to 150 lux illuminance in the switchable high beam.

The 130 lux dipped beam also provides more than enough power to illuminate even completely unlit pats and give you the necessary visibility. In this mode, the headlight has a precisely defined cut-off line to avoid dazzling oncoming traffic. With one press of the handlebar switch supplied, this line is broken and a high beam is activated, giving you excellent long-range vision.

Details:

• Powerful e-bike headlight with high beam function
• Homogeneous and wide light field with near field illumination
• High beam activated by handlebar switch
• Incl. removable reflector
• Incl. two handlebar mounts for Ø 31.8 and 35 mm clamp diameters
• According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h


Technical details:

• Material: aluminium (lamp housing, handlebar mount)
• Installation: Handlebar mount for lamp body (Ø 31.8 and Ø 35 mm), handlebar mount for control unit (Ø 22.2 mm)
• Power supply: 12 V DC voltage
• Lamp: LED
• Lighting power: approx. 150 lux (high beam)
• Lateral visibility: yes
• Light modes: dipped beam, full beam
• Dimensions: approx. 80 x 60 x 85 mm
• Weight: approx. 120 g


In the box:

• 1 Trelock LS 940-HB Lighthammer e-bike front light
• 2 handlebar mounts (Ø 31.8 and 35 mm)
• 1 handlebar switch for high beam with 10 cm connection cable



*Note:
The front light is compatible with a direct current power source (DC) of 12 volts. Some e-bikes can provide this, but NOT all do!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

Tip:
You can find a replacement bracket for the headlight under prod. code: 2354206.
If you want to attach the headlight to the fork of your bike, you can find the right bracket under prod. code: 2354207.

Manufacturer: Allegion Netherlands. B.V., Energiestraat 2, 3903 AV Veenendaal, The Netherlands, trelock.de/
