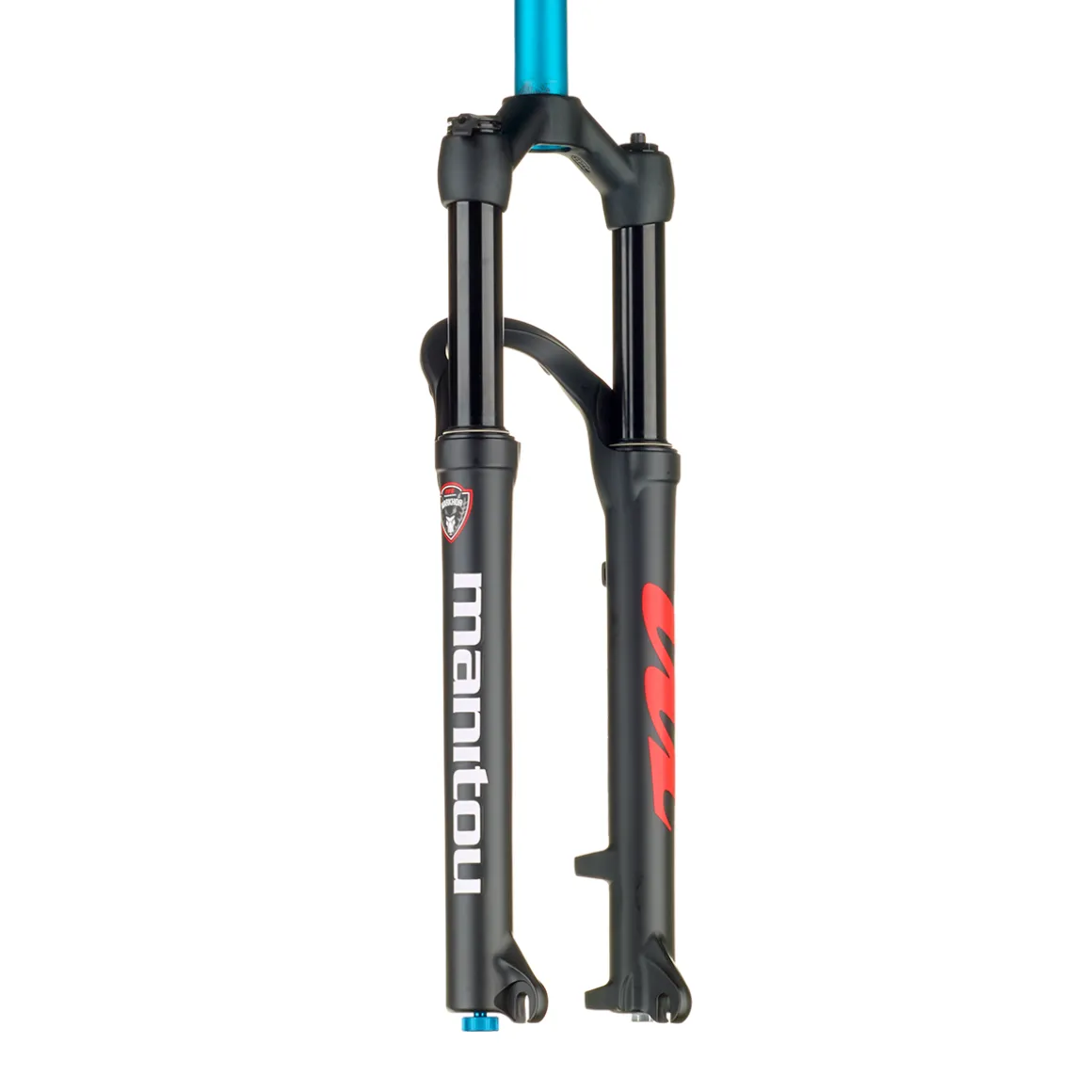

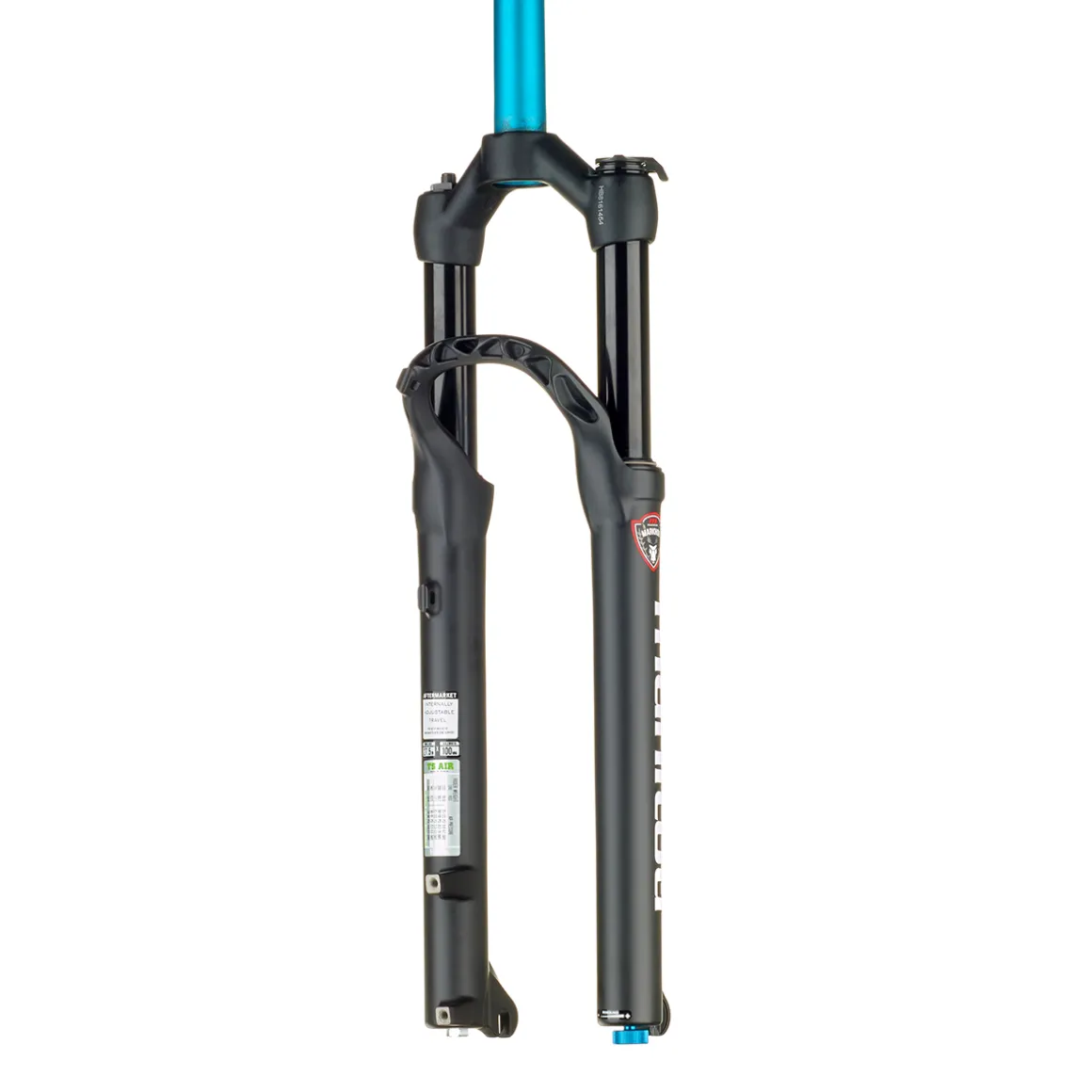

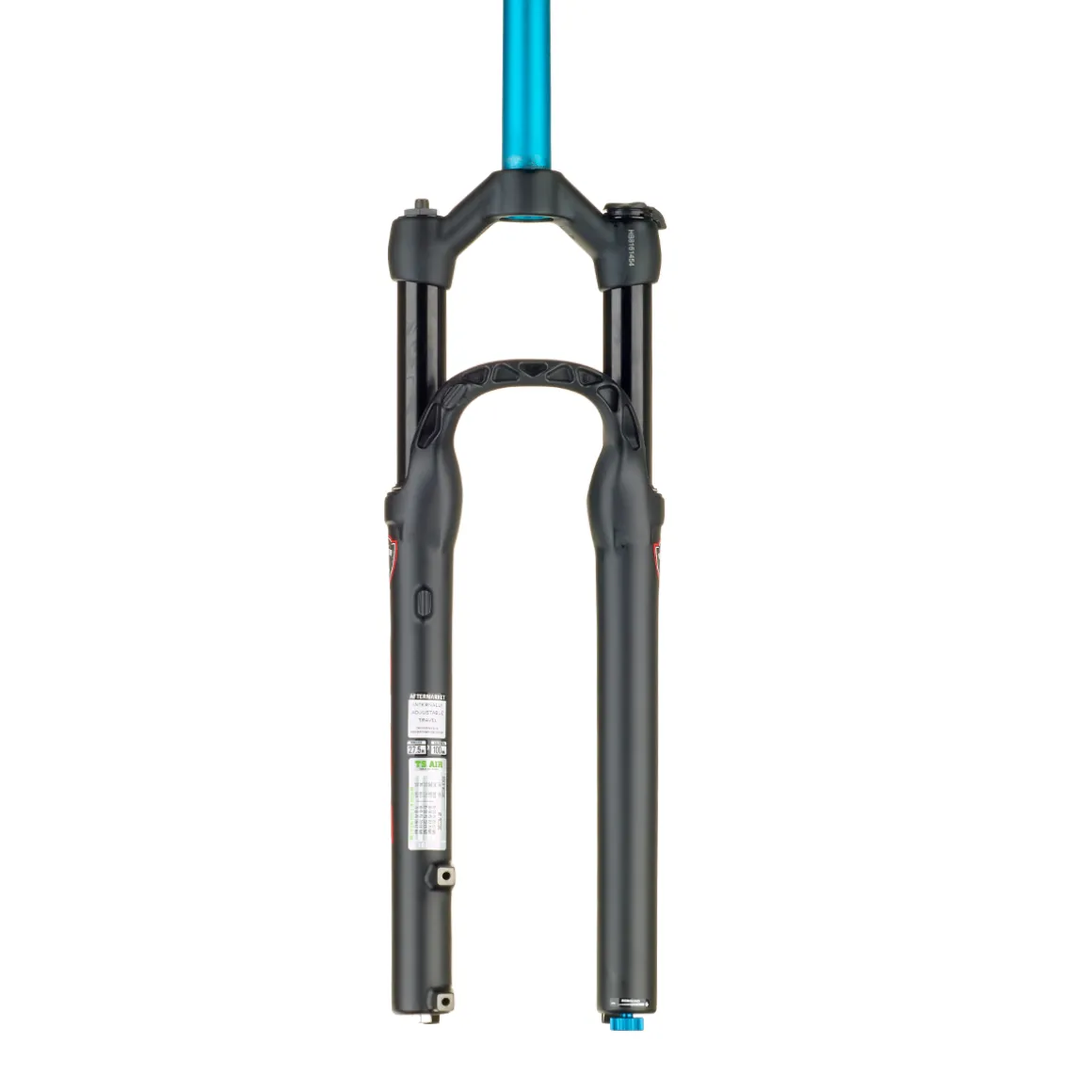

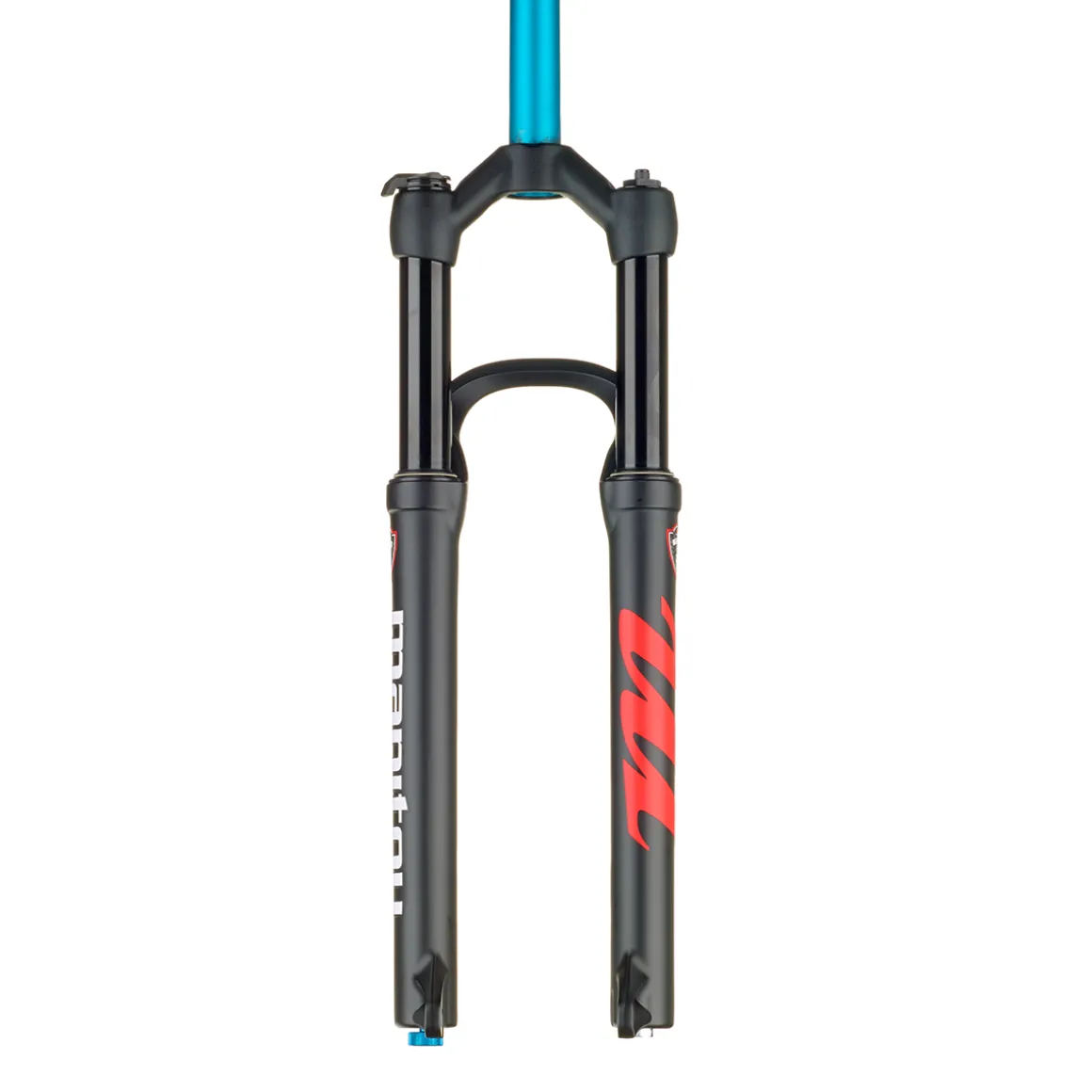

Markhor suspension fork 100 mm

As the successor of the popular M30, the Manitou Markhor MTB suspension fork packs the performance of Manitou’s XC Race fork Marvel into an attractively priced overall package. The Markhor is definitely a lightweight in its price class. What’s more, it features TPC rebound adjustment as well as Kwik Toggle platform damping – based on Absolute+ Compression – for easy on/off lockout.
Regarding the air spring, Manitou relies on the proven and powerful TS Air system. Thus, the Markhor offers excellent performance at a low weight without blowing your budget.

Details:
Intended use: Cross-Country, Marathon, Tour
Construction: aluminium fork crown, aluminium lower tubes, aluminium upper tubes
Stanchion Ø: 30 mm
Steerer: 1 1/8″
Spring: TS Air
Travel: 100 mm
Damper: Kwik Toggle (compression), adjustable TPC (Twin Piston Chamber Cartridge Rebound)
Adjustments: air pressure, compression through to lockout, rebound
Disc brake: Postmount 6″ (160 mm DirectMount), max. brake disc Ø 203 mm
Front hub spacing: 9 x 100 mm, quick release

Available for the following wheel sizes:

26“:
Fork length: approx. 475 mm
Offset: 38,1 mm
Max. tyre width: approx. 63 mm (approx. 2,4“)
Max. wheel size (total diameter incl. tyre): approx. 696 mm
Weight: approx. 1656 g

27,5“:
Fork length: approx. 485 mm
Offset: 41 mm
Max. tyre width: approx. 71,4 mm (approx. 2,8“)
Max. wheel size (total diameter incl. tyre): approx. 730,4 mm
Weight: approx. 1677 g

29“:
Fork length: approx. 505 mm
Offset: 51 mm
Max. tyre width: approx. 69,5 mm (approx. 2,7“)
Max. wheel size (total diameter incl. tyre): approx. 754,4 mm
Weight: approx. 1875 g

In the box: Manitou Markhor suspension fork, manual
