Mud Guard XL for 36/38 Suspension Fork

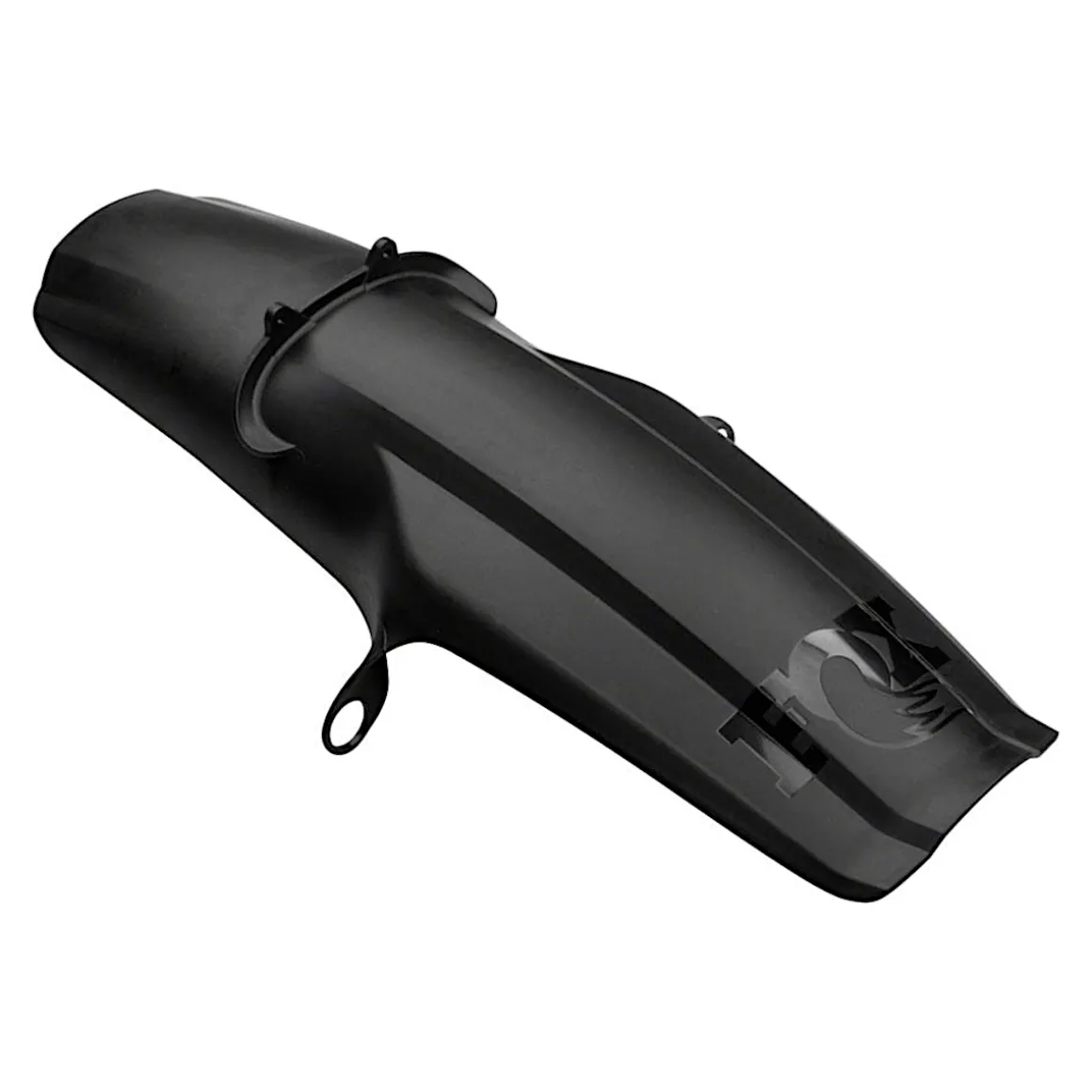

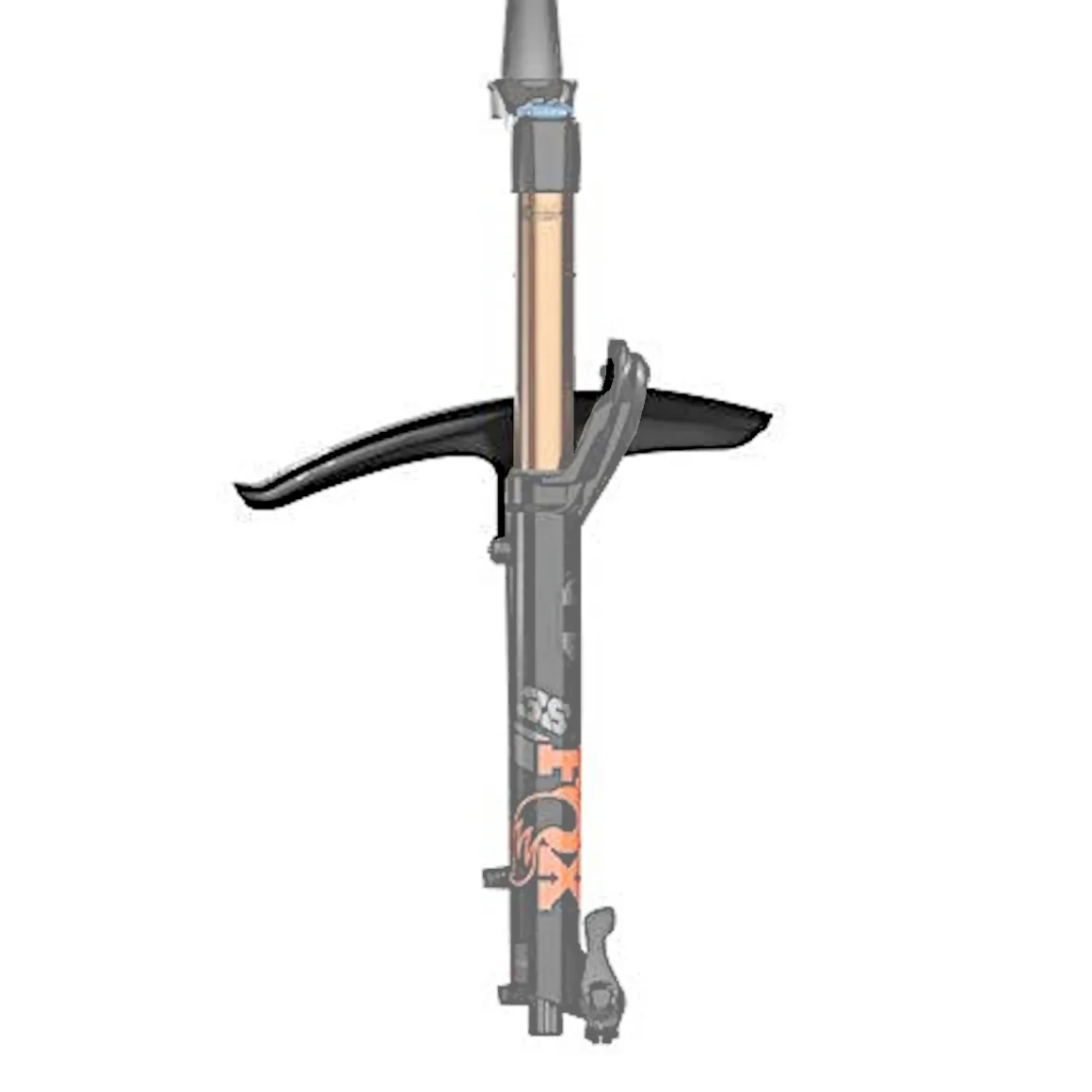

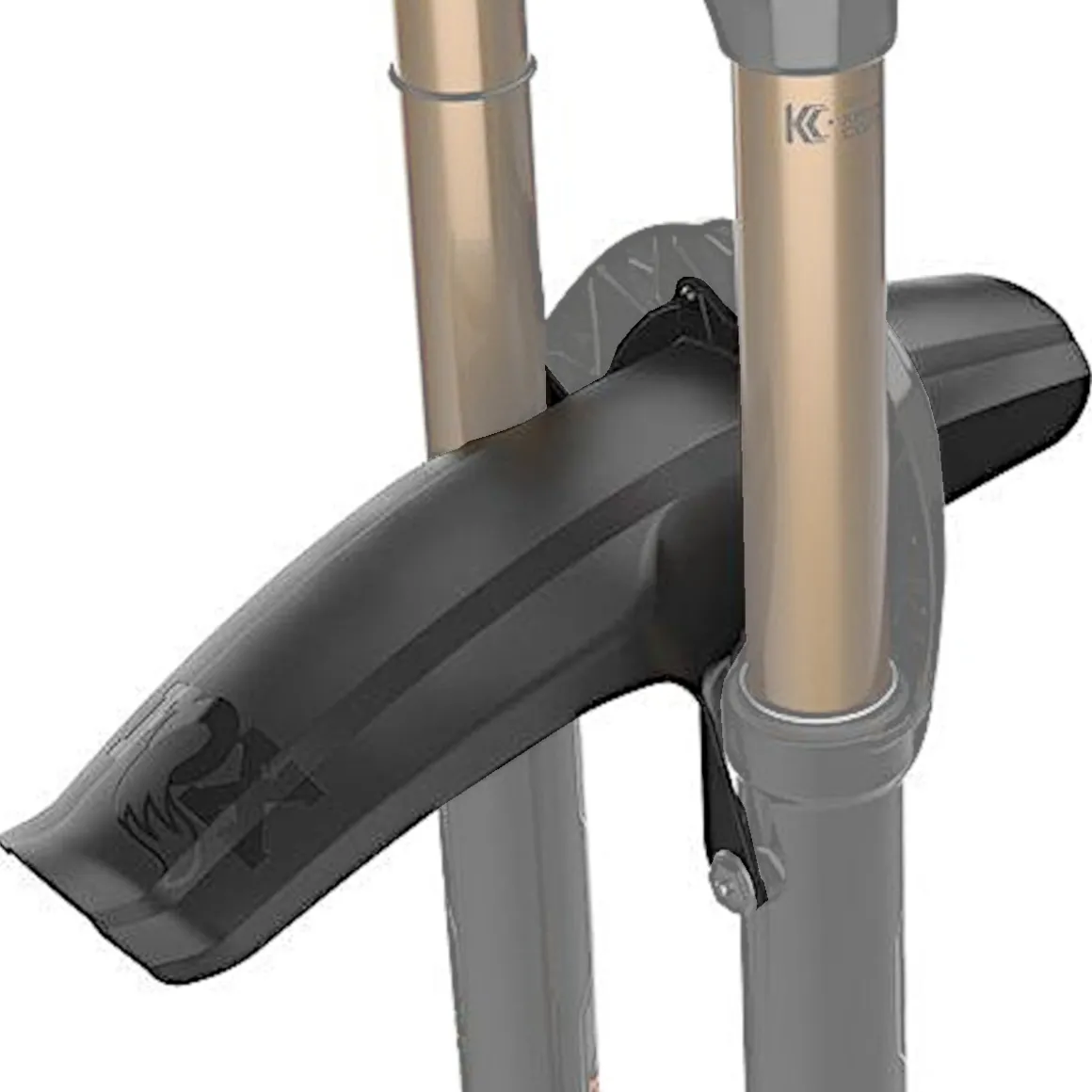

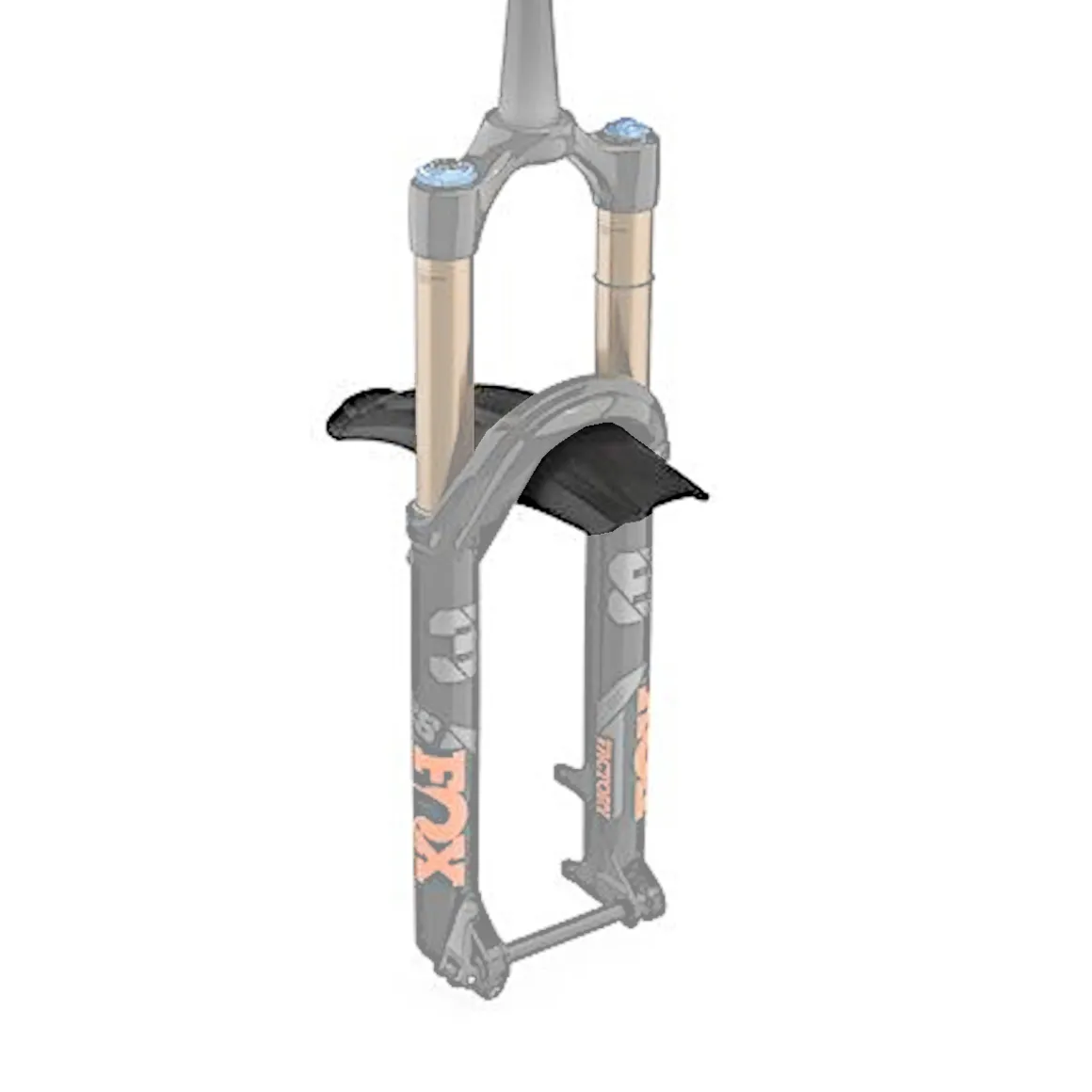

The long, XL version of the FOX Mud Guard blocks dirt and water spray from the front wheel. This mudguard offers 85 percent more coverage than FOX’s standard mudguard. Tailor-made for 36 and 38 suspension forks from model year 2021, the mud flap can be mounted without cable ties, Velcro or clamps.  With a stable 4-point attachment, the mudguard fits perfectly on the pressure release bolts of the lower fork tubes and on the back of the lower leg arch. Nothing wobbles or rattles. Built for rough terrain and visually integrated into the suspension fork, the mudguard doesn’t just protect you from getting hit with an extra portion of mud. It also protects the headset, upper tubes and seals from the wear caused by sand and water. So you can still have fun riding, even in dirty weather, and your FOX suspension fork will thank you with better durability thanks to the wheel protector.

Details:
XL front mudguard for direct mounting
Extra long version
Fits FOX suspension forks from model year 2021 onwards
Compatible with 36/38 mm upper tubes for 27.5″ and 29
85% larger coverage area than FOX’s compact mud guard
Integrated design with form-fit lower leg arch mounting
Solid 4-point screw connection
Intended use: Allmountain, Enduro, Trail

Compatible with 36/38:
Factory
Factory E-Bike+
Performance
Performance E-Bike+
Performance Elite
and others

Technical details:
Material: plastic
Dimensions: approx. 350 x 120 mm
Max. tyre dimensions: 27.5 x 2.7″ or 29 x 2.5″
Weight: approx. 95 g

In the box:
1 FOX Mud Guard XL for the suspension fork
2 screws for lower leg arch

Attention:
The compact version of the FOX Mud Guard can be found under prod. code: 2323663.
