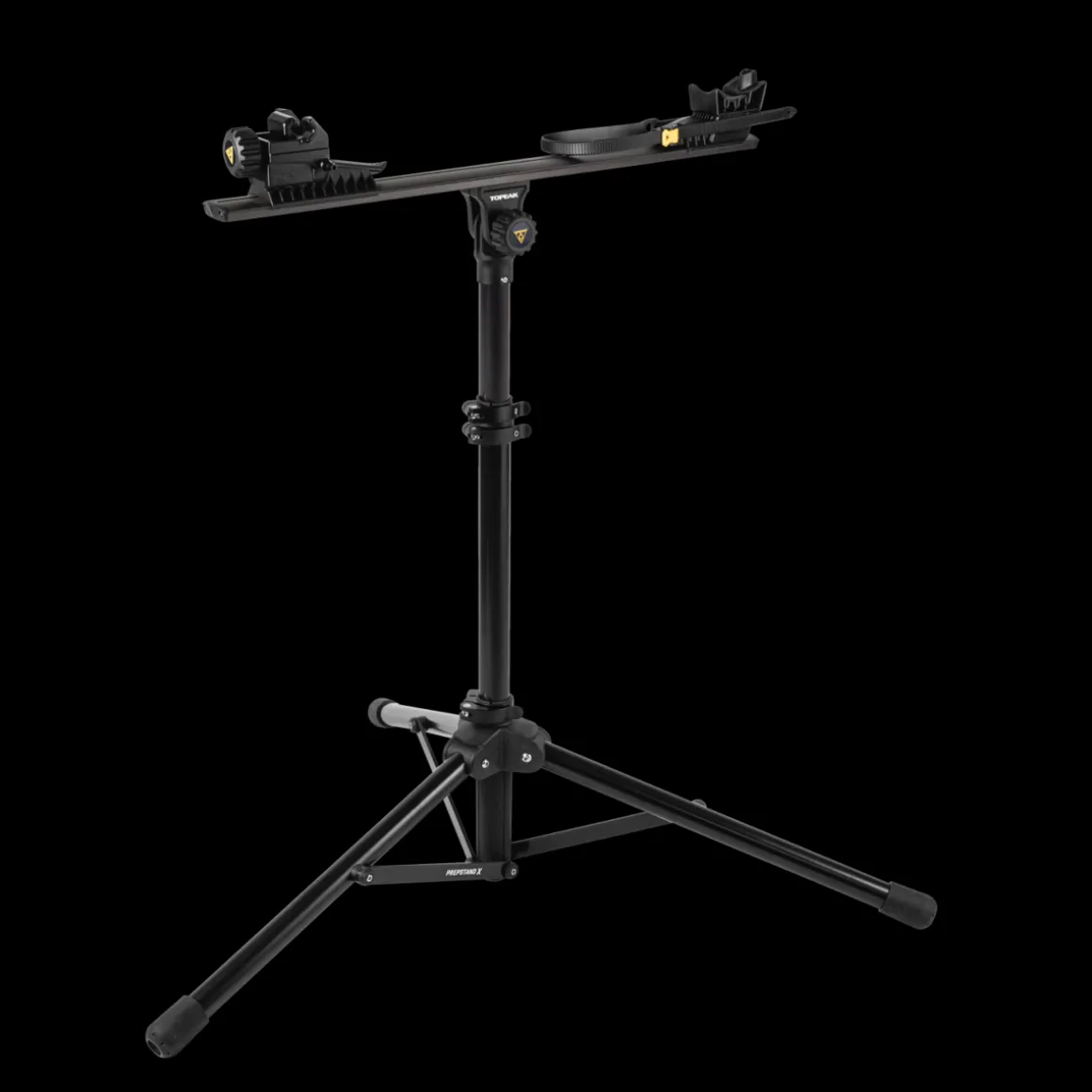

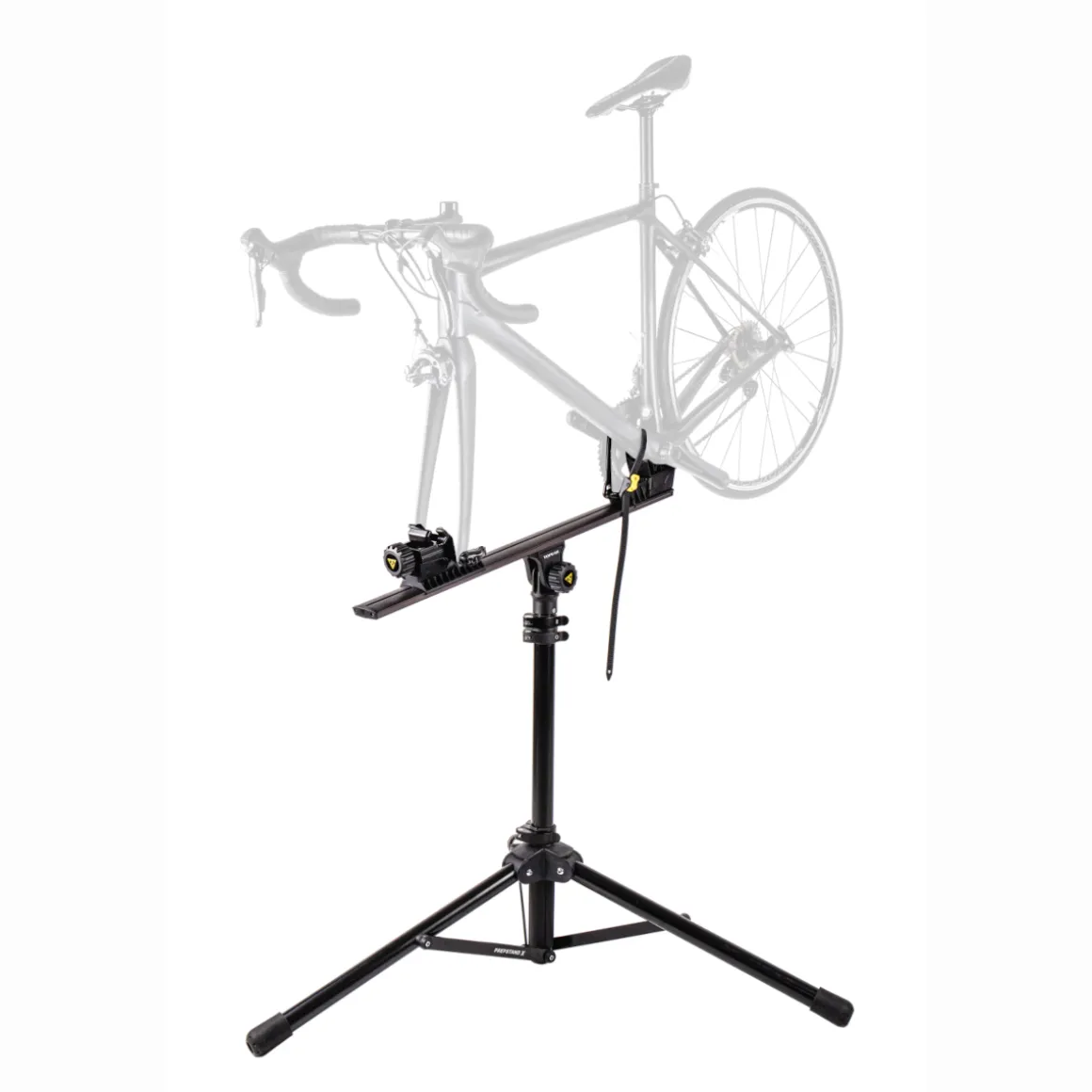

PrepStand X PRO Bike Workstand

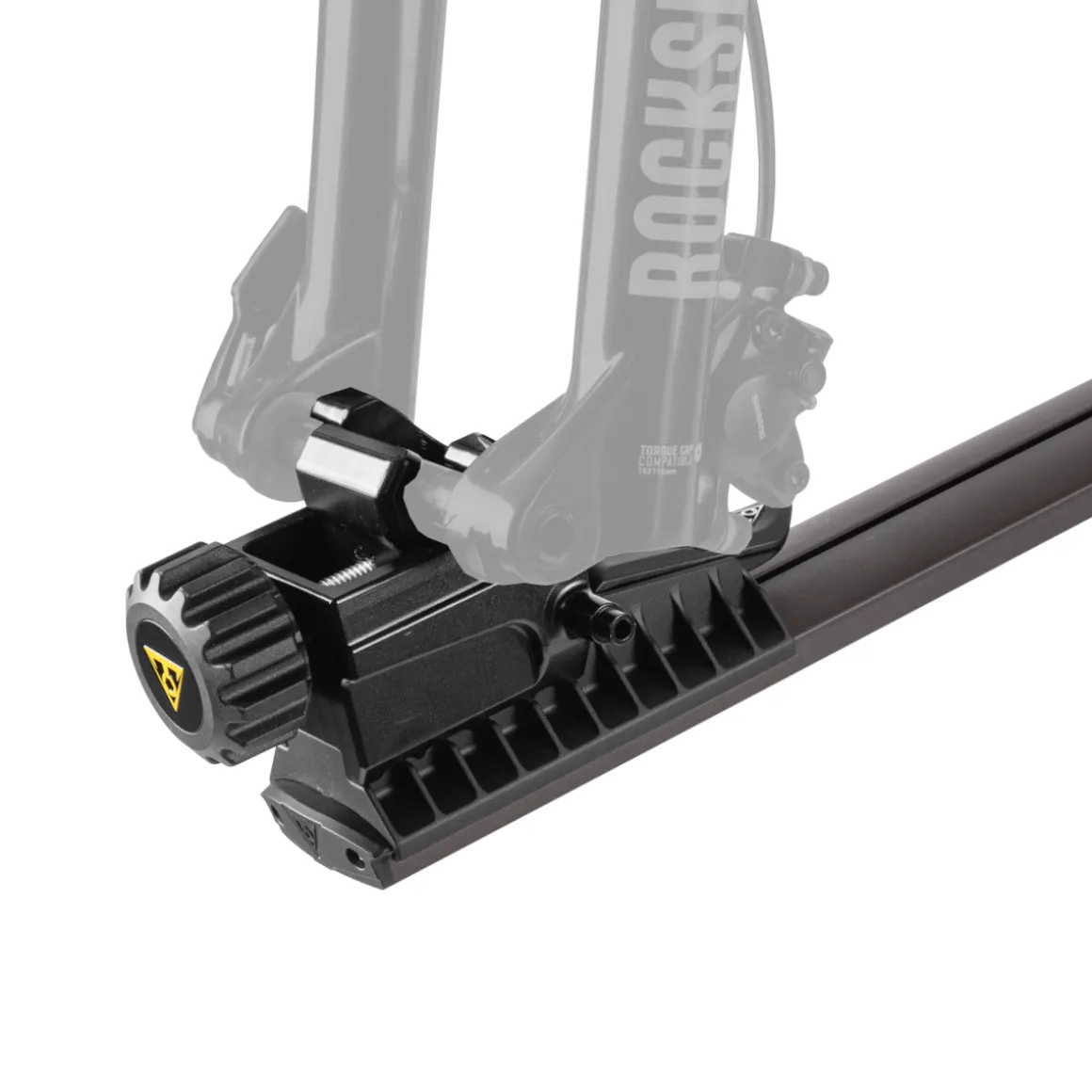

Despite the variable mounting option for different axle dimensions, the Prepstand X PRO workstand from Topeak does not require any conversions or adapters. The innovative clamping mechanism for fork mounting is suitable for the entire bike spectrum from road bikes to mountain bikes. The robust pro stand is an indispensable tool for a biker’s workshop, as it allows you to position your bike without the hassle of frame clamps for best access. After all, the aluminium workstand is specifically designed for easy and safe handling thanks to a quick release mechanism and rotatable clamps. The Prepstand X PRO by Topeak folds down to a compact size just as easily as it is installed and adjusted. It is therefore also the ideal choice when travelling.

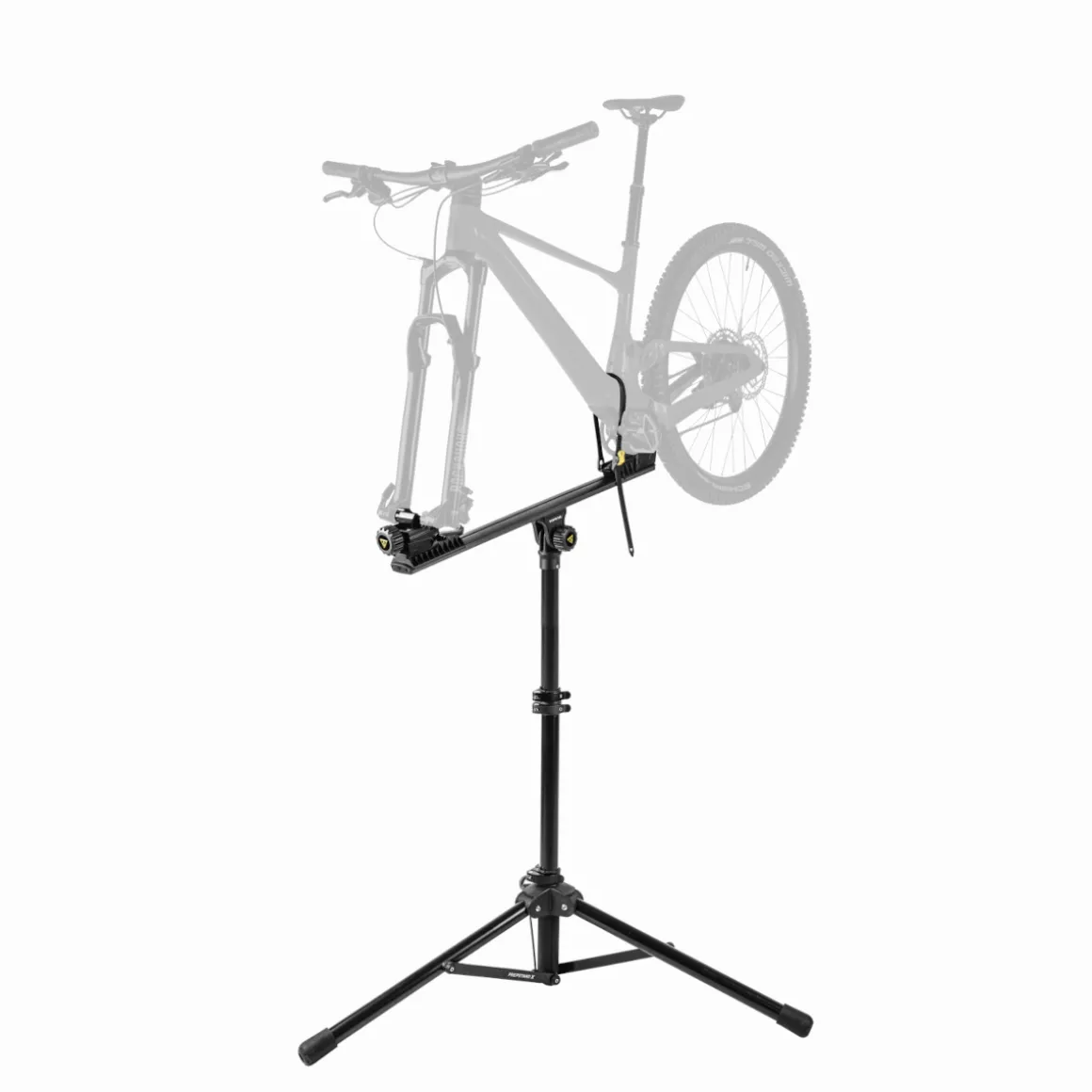

This allows you to carry out installation, adjustment and maintenance works on your bike at a comfortable working height. For maximum ergonomics, the working position on Topeak’s PrepStand X PRO is infinitely adjustable using the telescopic extension. On the long mounting rail, your bike is securely fixed to the fork dropouts and bottom bracket. Once fixed, you can easily position your bike to suit your needs: Whether through 360° rotation, angle adjustments or fore and aft adjustments for a perfect centre of gravity and stability while working on your bike. A solid base with three slip-resistant rubber feet ensures a reliable hold.

Details:
Easy to use, height-adjustable pro workstand
4-way adjustable telescopic tripod construction
Solid base with rubber feet

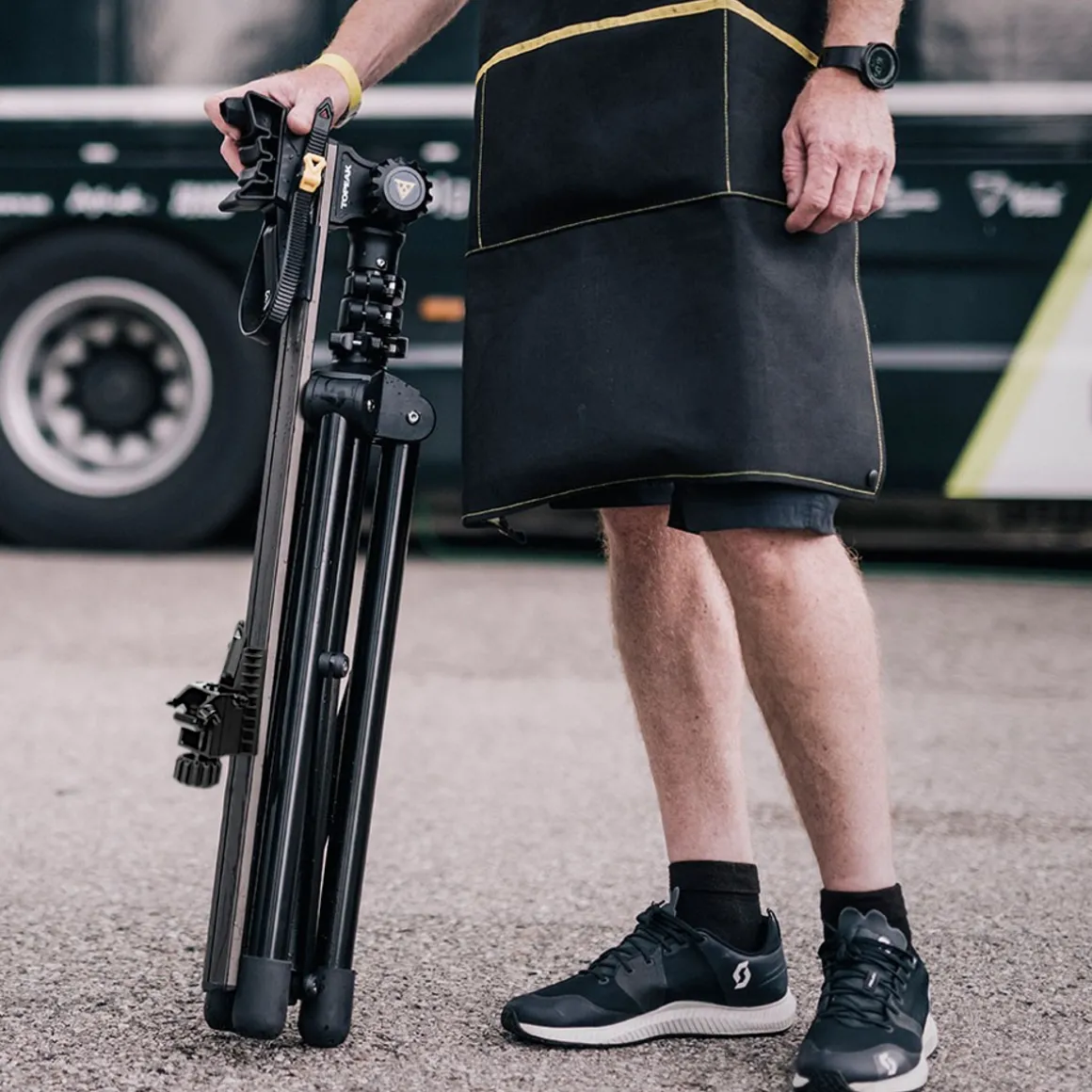

Extremely compact size when folded

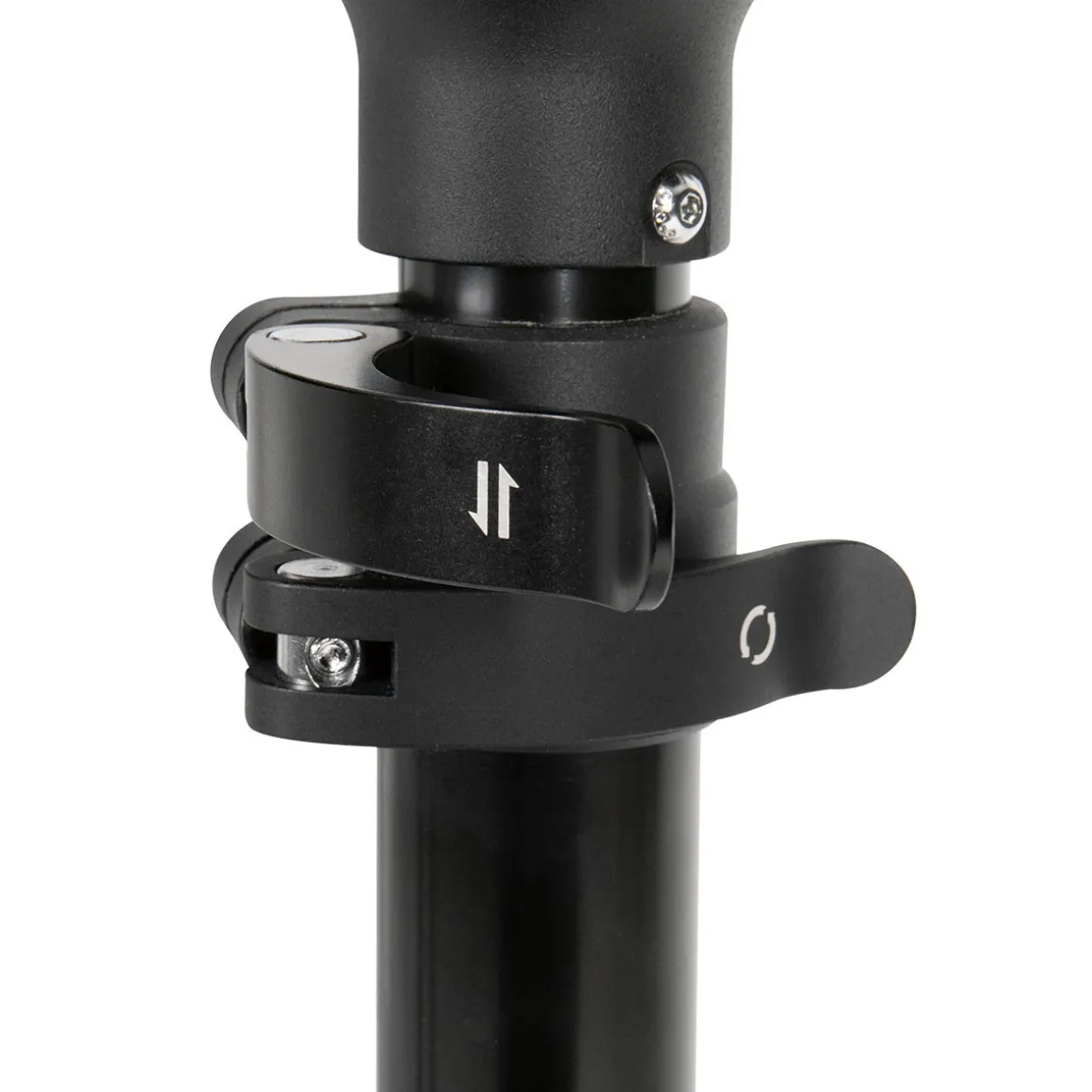

Quick adjustment with clamping lever and knob.
Adjustable mounting rail to suit the wheelbase
Bike is fixed on bottom bracket and fork
Bolting / clamping with the front wheel axle

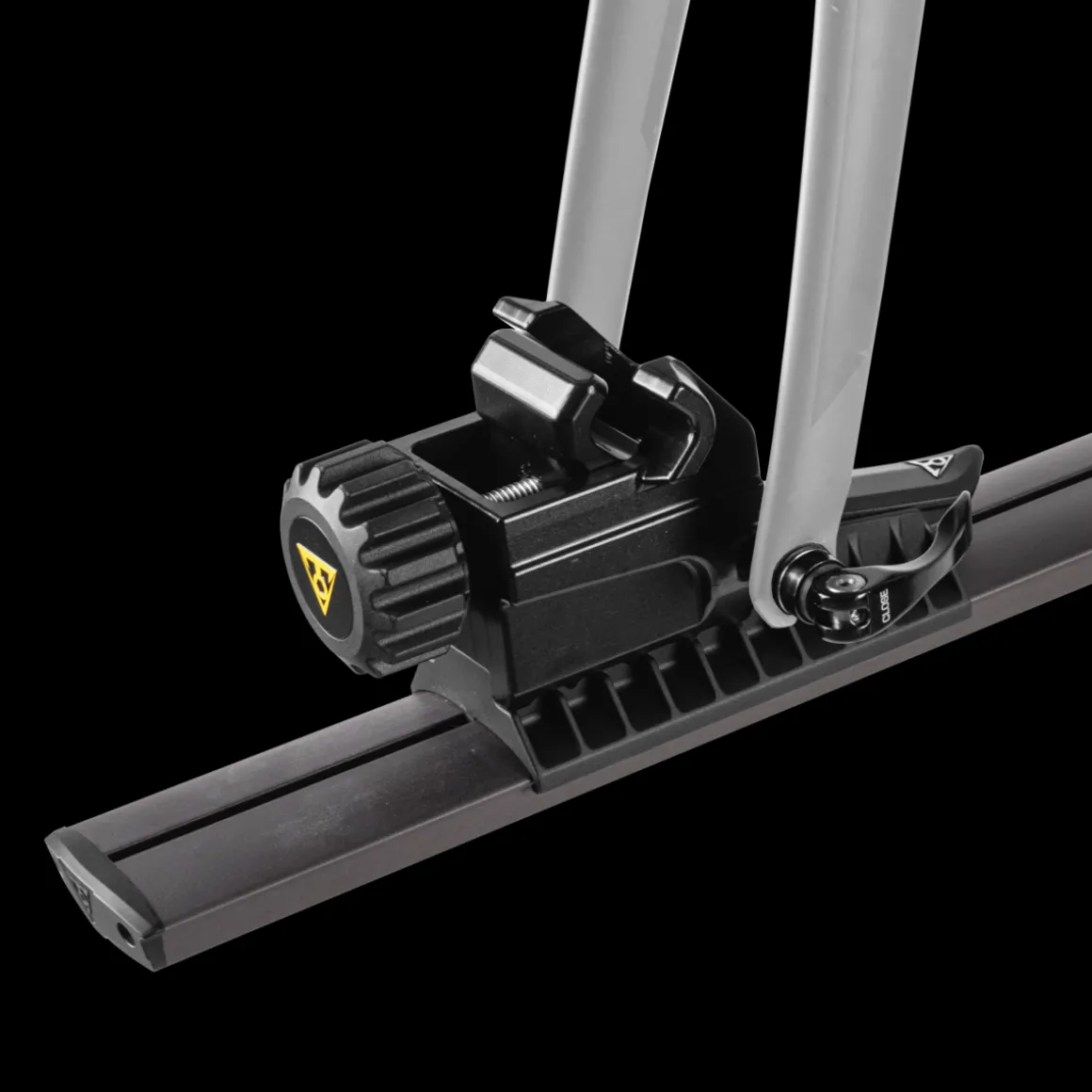

Suitable for forks with quick-release & thru axles
360° rotatable design to work on both sides of your bike
90 degree up / down angle adjustable
Chain keeper with removed rear wheel for quick release and 12 mm thru axle

Technical details:
Max. load: 18 kg
Working height: approx. 85-145 cm
Max. inclination mounting rail: 90°
Compatibility: 5 mm QR, 12/15 x 100 mm and 15/20 x 110 mm thru axles
Base diameter: approx. 120 cm Ø

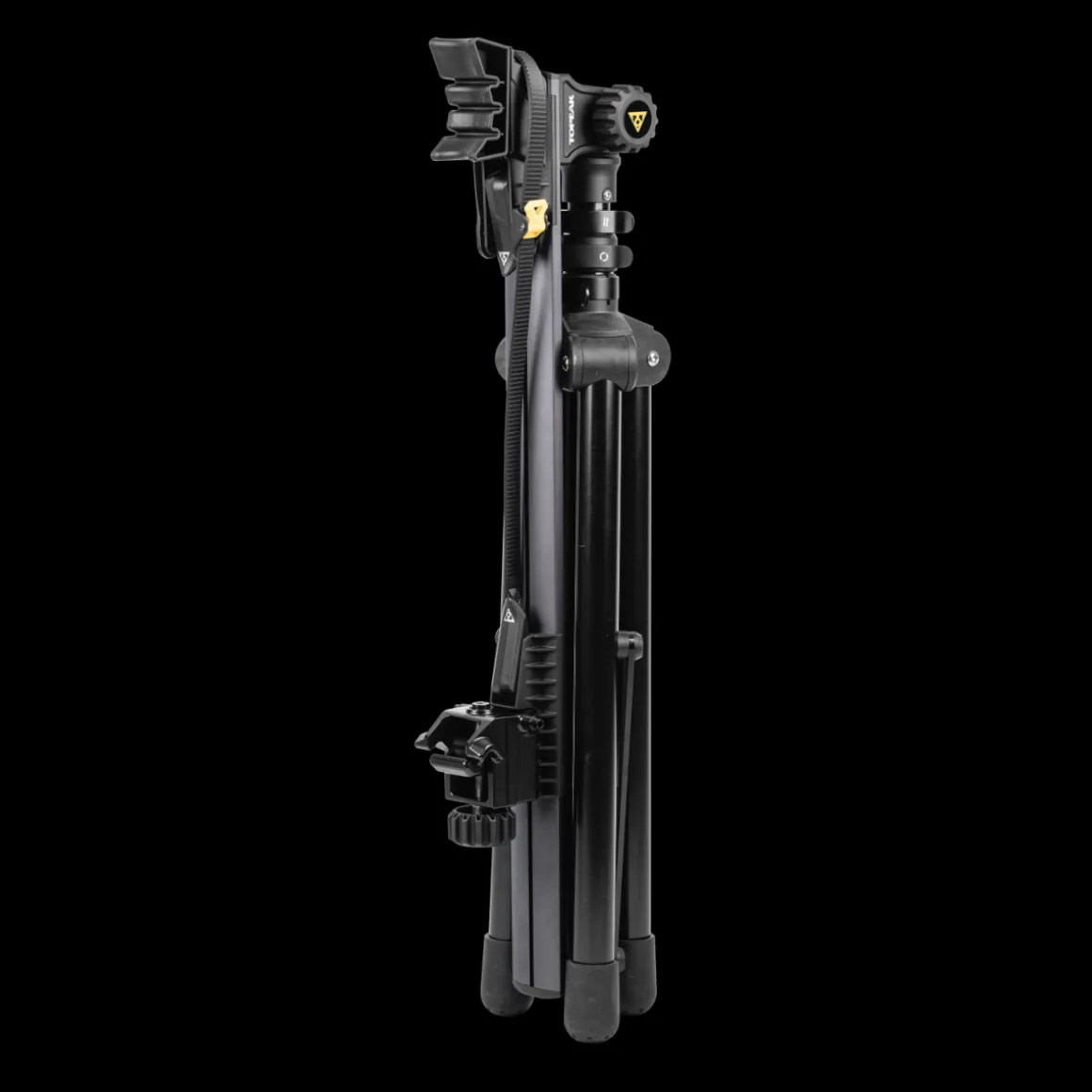

Size (folded): approx. 86 x 25 x 16 cm
Material: 6061 T6 aluminium (workstand), rubber (bottom bracket mount), plastic
Weight: approx. 5.5 kg

In the box:
1 Topeak PrepStand X PRO bike workstand

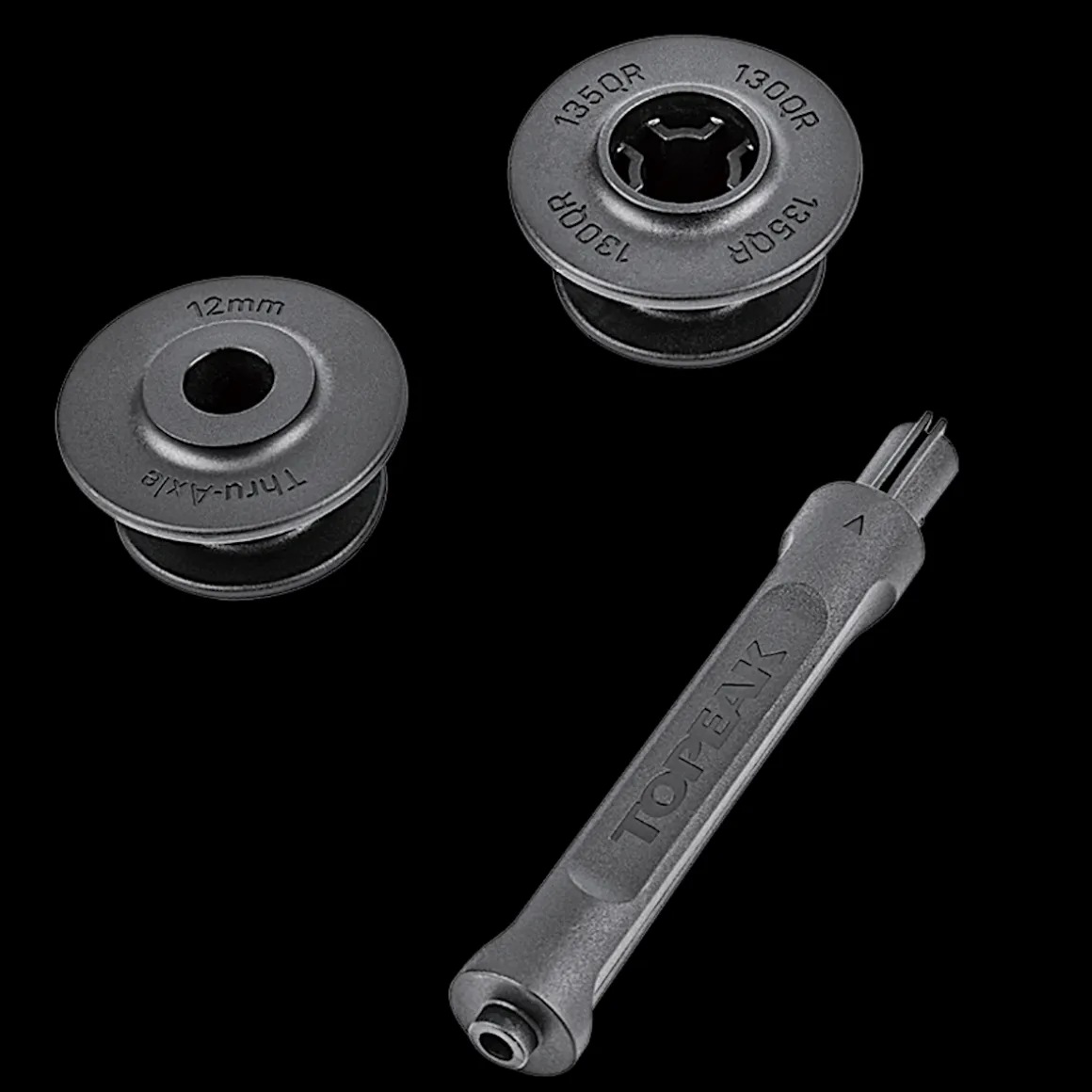

1 Dummy rear wheel hub with chain kepper
