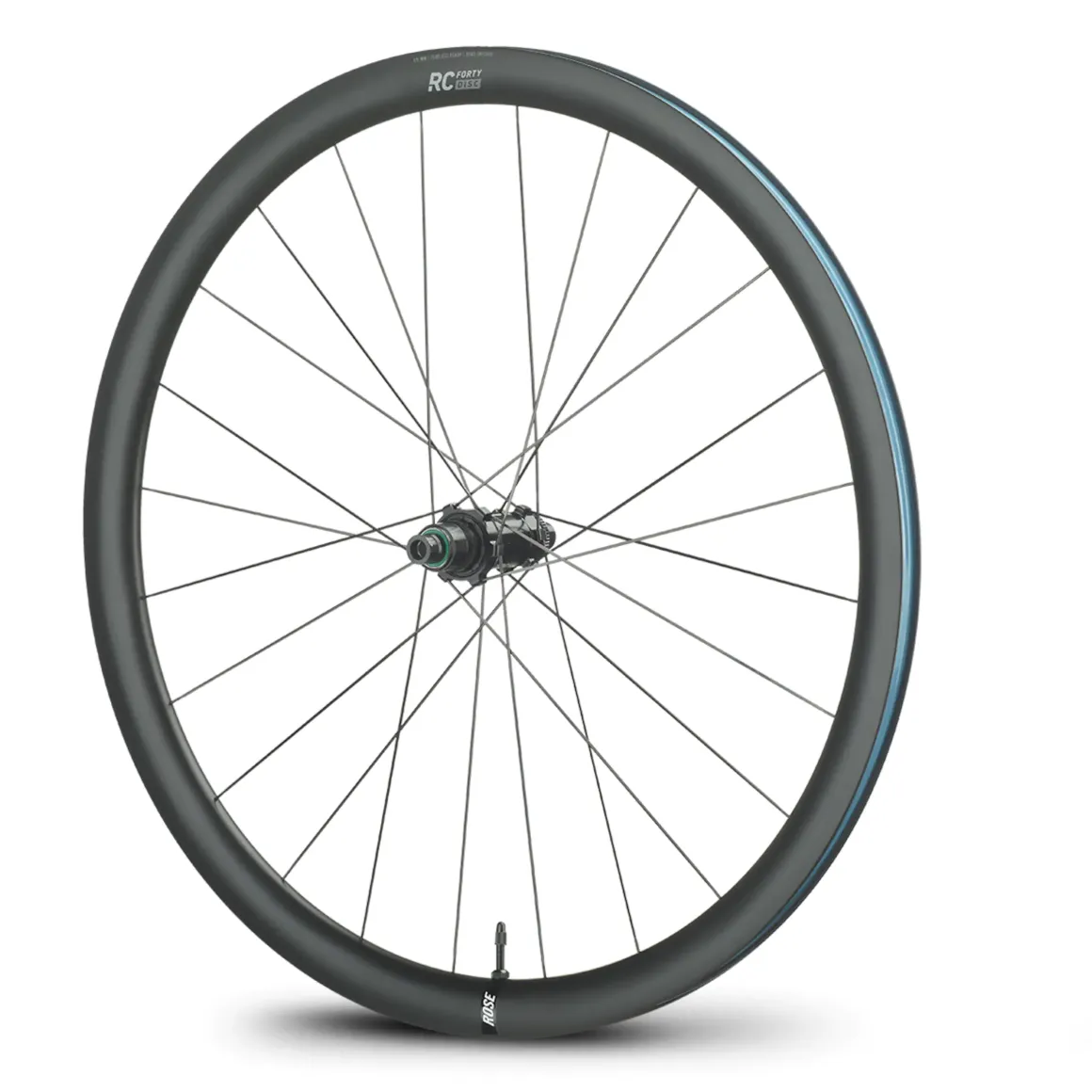

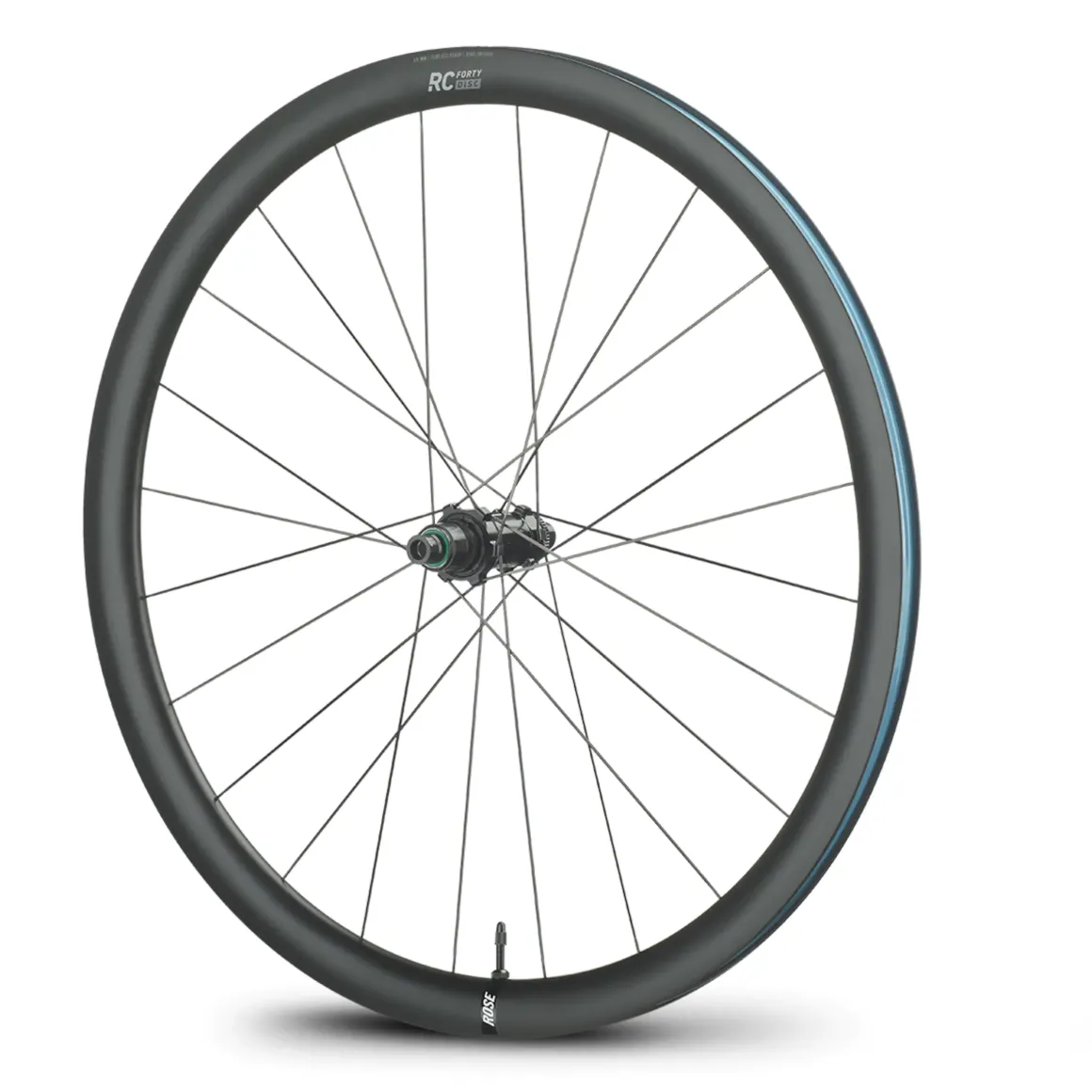

RC-Forty Disc 28" / 700 C Carbon Road Rear Wheel SRAM XDR | 24 Spokes

The hand-laced carbon wheels of the ROSE RC series are the current reference in terms of aerodynamics, performance and weight from ROSE Bikes for your road bike with disc brakes!
This also applies to our ROSE RC-Forty Disc rear wheel with its 37 mm high rim profile. It is predestined for maximum performance on your high-end race or endurance bike and cuts an excellent figure on demanding mountain stages as well as on long distances.

Everything stands and falls with the rim!

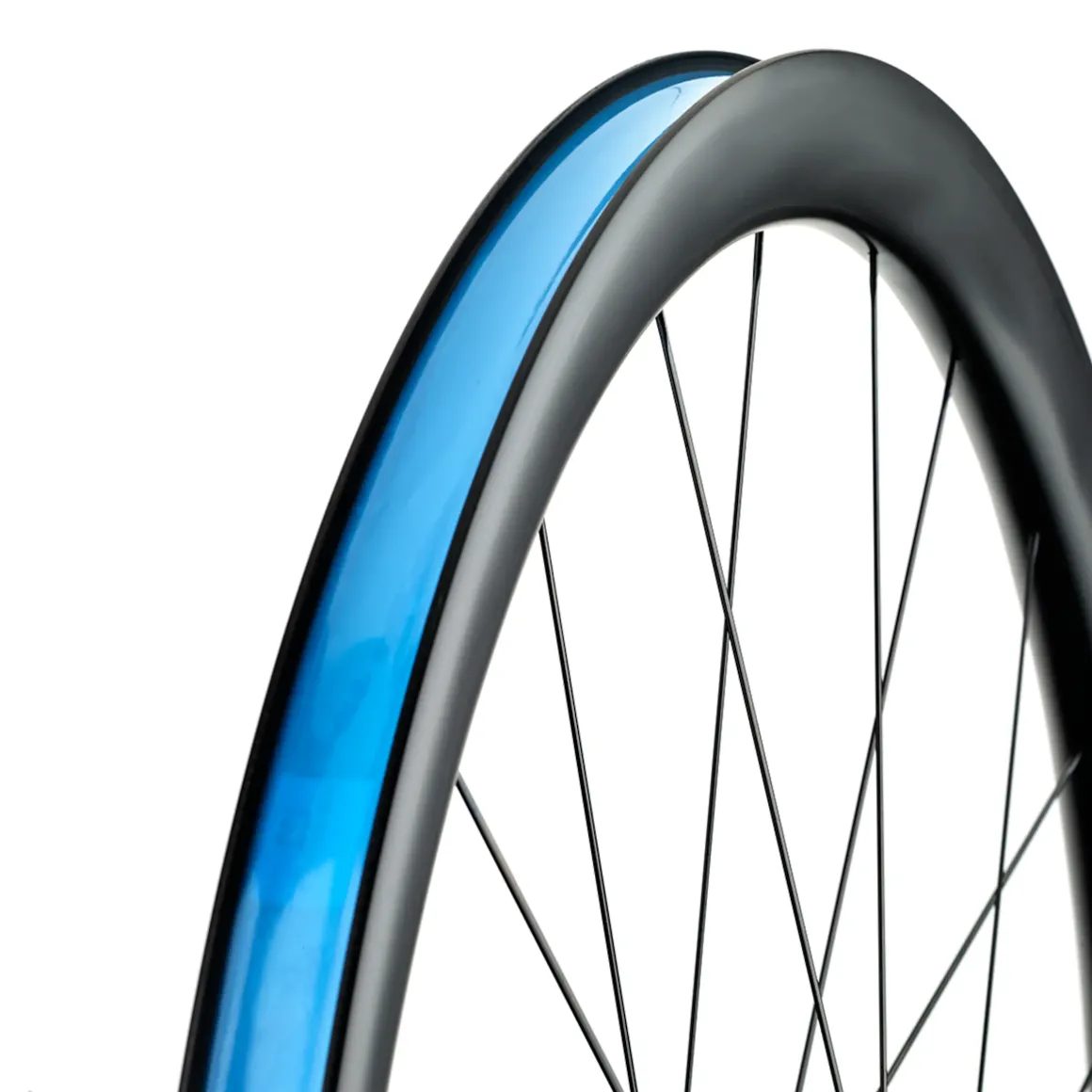

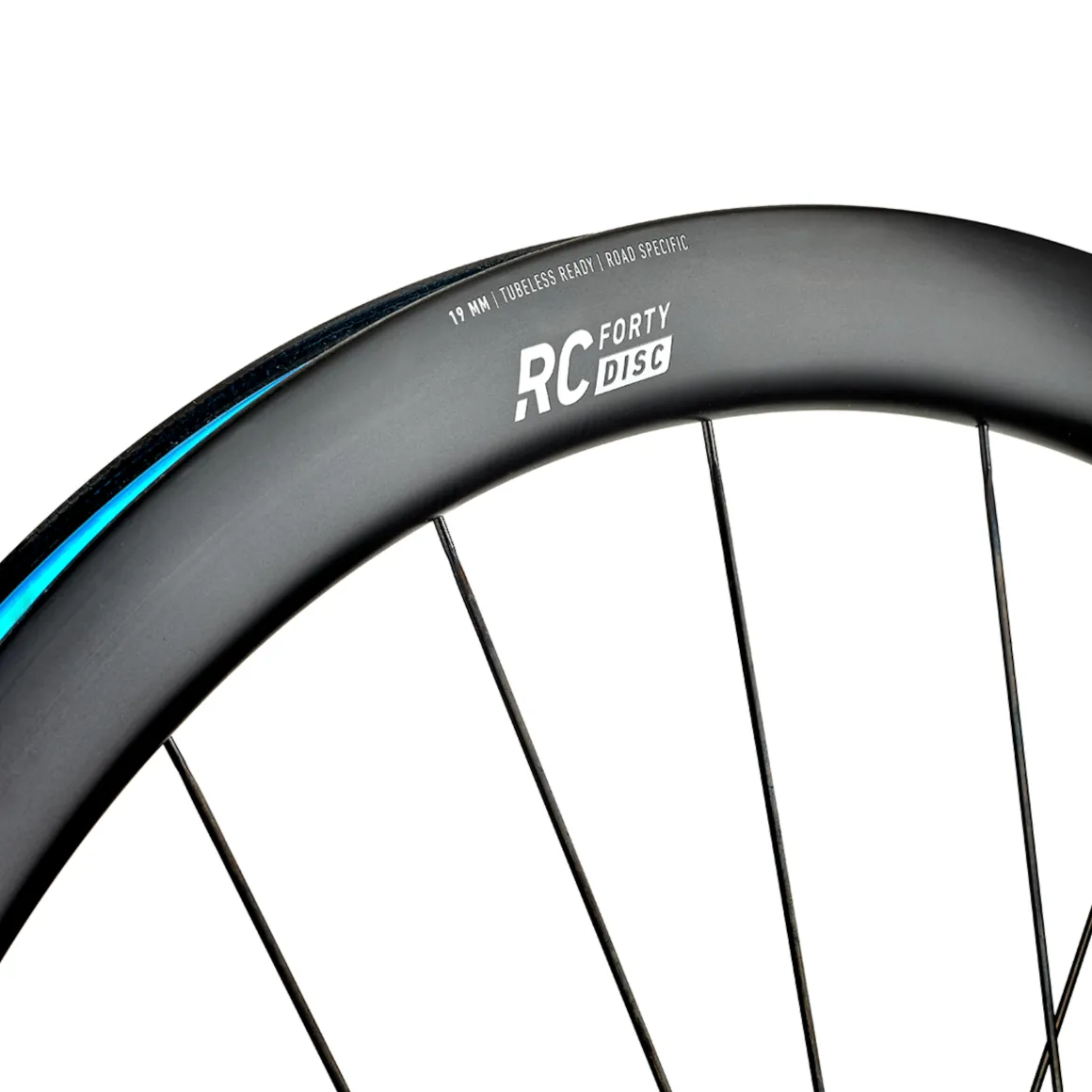

The high-end carbon rim of the ROSE RC-Forty Disc road wheel was fully developed in-house and has a special construction that makes it very light and yet stable and durable. Of course, we follow the trend towards wider tyres and therefore gave the rim a full inner width of 19 mm and “tubeless-ready” compatibility – no upgrades needed. Naturally, you can also ride the RC-Forty Carbon rear wheel in a conventional way with conventional tyres and inner tubes.
Thanks to the asymmetrical and bellied rim profile, the carbon rim not only minimizes air resistance, but also reduces annoying air turbulence. Even strong crosswinds are optimally dissipated. As a rider you can feel full control over your road bike in every riding situation and save valuable energy for the really important duels on the track. Be it against your competitors in the sprint, against the mountain on a 15% gradient or simply against you and your weaker self.

ROSE made by NEWMEN!

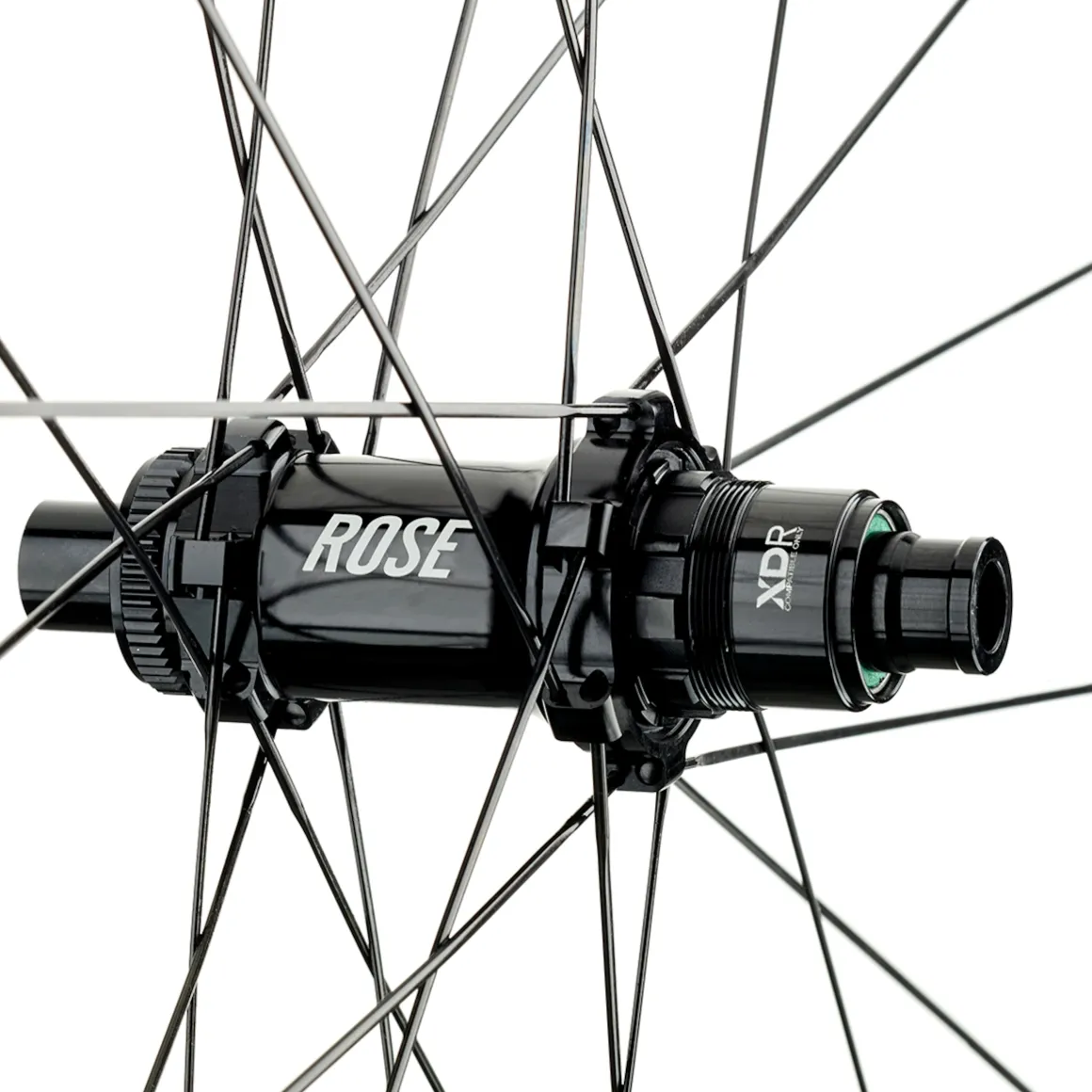

The RC-Forty Disc Carbon rear wheel uses our high-quality ROSE made by NEWMEN hub from the FADE hub generation by NEWMEN.
Its elegant, CNC-milled hub body made from high-quality aluminium is equipped with high safety reserves but still maintains a low hub weight. The large FADE freewheel system with a precise ratchet system also ensures direct engagement and maximum propulsion. The large size of the FADE system reduces the forces occurring within the freewheel and the newly-designed tooth profile ensures significantly less freewheel noise. The three pawls are designed to be very short and wide, which provides a more even distribution of and therefore reliable and material-friendly power transfer. The high-quality, double-sealed industrial bearings ensure smooth-rolling and long-lasting functionality as well as extremely simple operation. A frequently complicated adjustment of the bearing clearance is not necessary.

Robust aero spokes and inverted nipples!

Strong Sapim CX-Sprint Straightpull Aero spokes provide a stable and reliable connection between the Newman hub and ROSE RC-Forty carbon rim. 24 spokes and the 2-fold crossed lacing are designed to handle high loads when used with modern, powerful disc brakes. The reliable Sapim aluminium spoke nipples lie aerodynamically inside the rim and are mounted inverted, so basically “wrong way around”. The nipple is supported on conically shaped Sapim nipple washers, which ensures an even distribution of the load and thus a relief of both the spokes and the rims. This drastically reduces the probability of spokes breaking.

Nothing beats honest craftmanship!

In line with our long-standing company tradition, we completely dispensed with mechanical spoking in the ROSE RC-Forty disc wheelset. Instead, each individual wheel is spoked and centred by hand at our company headquarter in Bocholt. This way, our experienced wheel builders guarantee the best possible quality in spoke tension and concentricity.

Wheel size:
28″ / 700 C
ETRTO: 622 – 19

Rim:
Model: ROSE RC-Forty Disc
Rim type: clincher
Rim material: carbon
Asymmetric disc brake specific profile
Rim width/depth: approx. 26 mm / 37 mm
Offset: 3 mm
Inner rim width: 19 mm
Tubeless ready
For Presta valve

Spokes & nipples:
Spoke type: Sapim CX-Sprint Straightpull Aero Spokes (dimensions: 2.0 – (2.25 x 1.25) – 2.0)
Number of spokes: 24 pcs
Spoke length: 290 mm left / 288 mm right
Spoke nipples: Sapim aluminium nipples (inverted); mounted in Sapim nipple washers
Spoke pattern: 2-cross

Hub:
Model: ROSE made by NEWMEN Road Rear Disc
Housing material: CNC-milled aluminium
For disc brakes
CentreLock brake disc mount (also compatible with 6-hole disc rotors via adapter, e.g. DT Swiss Centre Lock adapter, product code 2283716)
4 cartridge bearings (doubly-sealed)
NEWMEN FADE pawl system (3 pawls, 10.9° degree engagement)

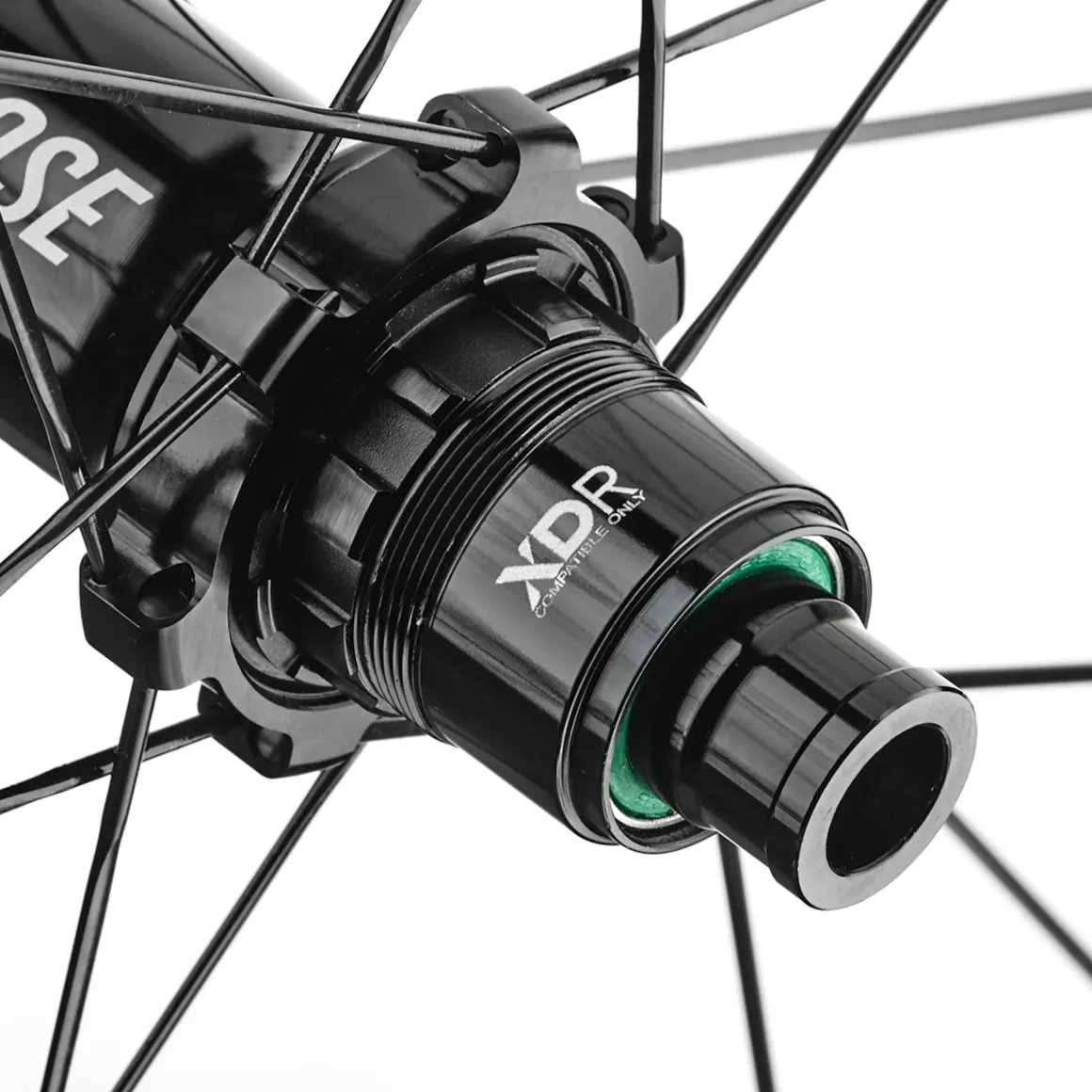

Freewheel body standard:
SRAM XDR™

Cassette compatibility:
SRAM XDR™ 12-speed road cassettes
SRAM XD™ 11-/12-speed MTB cassettes (requires separately available 1.85 mm spacer ring!)
as well as other SHIMANO HG-compatible cassettes.

Axle:
Rear hub dimensions: 12 x 142 mm (thru axle)

Clearance:
Recommended for tyre widths: 25 mm – 32 mm (max. 23 mm to 60 mm)
Recommended rim tape width 21 mm
ASTM classification: 2 (for on and off-road use with jumps up to 15 cm)
Max. system weight: 110 kg (cyclist, bike, gear and luggage)

Weight:
Rear wheel: approx. 775 g

In the box:
1 ROSE RC-Forty Disc Carbon 28″ road bike rear wheel (SRAM XDR™)
1 tubeless ready rim tape (pre-assembled, also suitable for conventional inner tubes)
1 ROSE tubeless valve (60 mm)
Attention:
Tubeless sealant is NOT included in the delivery.

Attention:
Due to our high-quality and very durable grease filling and the fixed bearing clearance, the hub bearings can run somewhat heavier at the beginning. However, this has no effect on the riding and improves after a short running-in time.

Crash Replacement:
Customers whose wheels have been damaged in an accident or fall within 6 years will receive a 50% discount on a new set of wheels within our Crash Replacement Program (terms and conditions apply).
