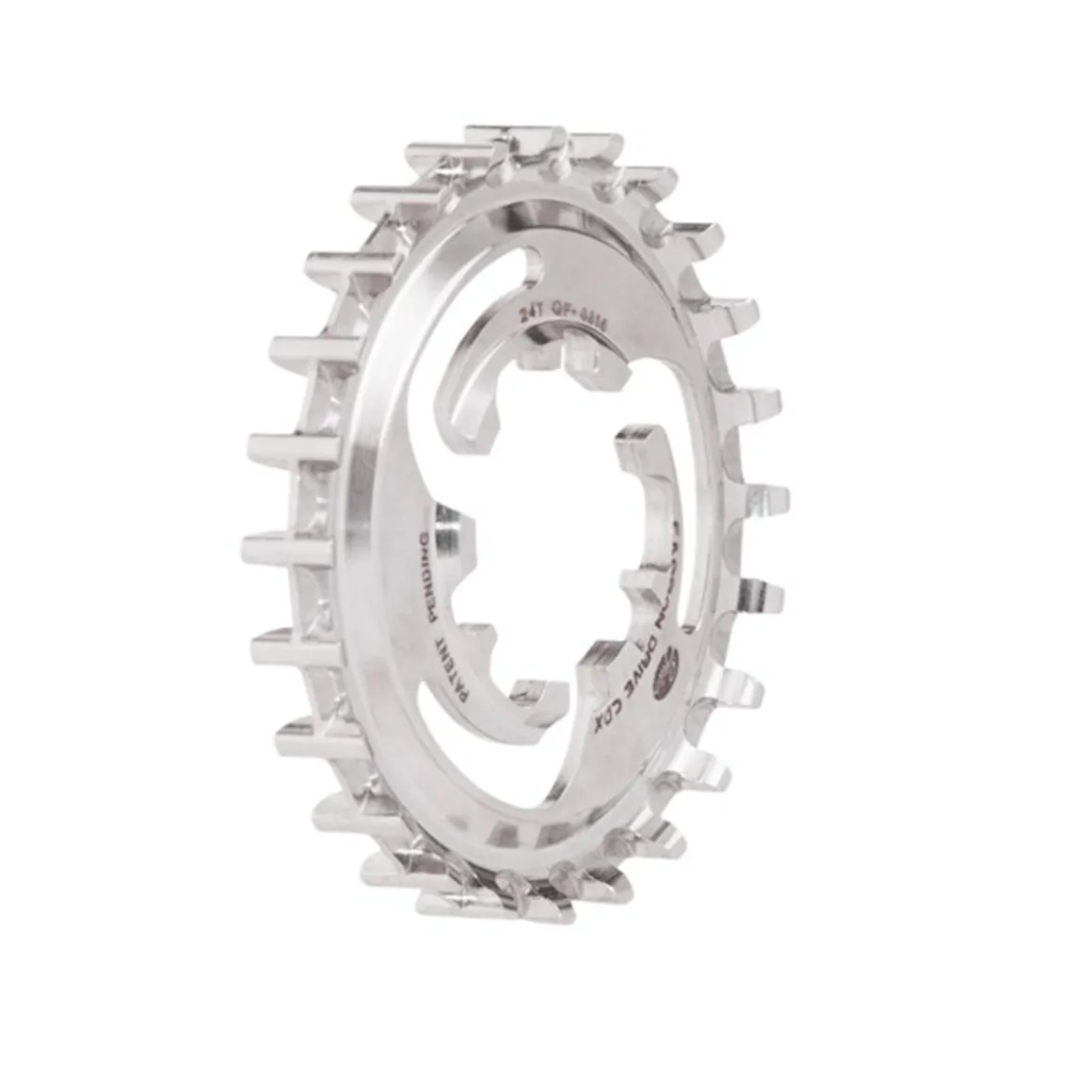

Rear Sprocket CDX CenterTrack Enviolo

Being a bike drive system of a special kind, the Gates Carbon Drive belt system stands out for smooth running and low maintenance. For best belt drive performance, Gates offers special rear sprockets for the CDX system made from robust and stainless steel.
This version is suitable for installation on Enviolo (NuVinci) gear hubs.

Details:
• CDX version (high-end version for high loads and best performance)
• For mud, sand, snow and ice as well as for all road conditions
• Groove in the centre (CenterTrack)

Compatibility:
• Enviolo / NuVinci

Technical details:
• Intended use: mountain bikes, e-bikes (front, mid and rear drive motor), gravel bikes, city and touring bikes
• System Gates CDX
• Material: stainless steel
• Use: at the rear (sprocket)
• Mount: Enviolo / NuVinci
• Belt line: approx. 45.5 / 48.7 mm
• Pitch: approx. 11 mm

Available in size:
• 24 teeth

In the box:
• 1 Gates Carbon Drive sprocket CDX Enviolo / NuVinci (rear)

Tip:
For the Gates SureFit tool see product code: 2289244.

Manufacturer: GATES CORPORATION, 1144 FIFTEENTH STREET SUITE 1400, CO 80202 Denver, USA, de.gatescarbondrive.com/
Responsible person: GATES GMBH, EISENBAHNWEG 50, 52068 Aachen, Deutschland
