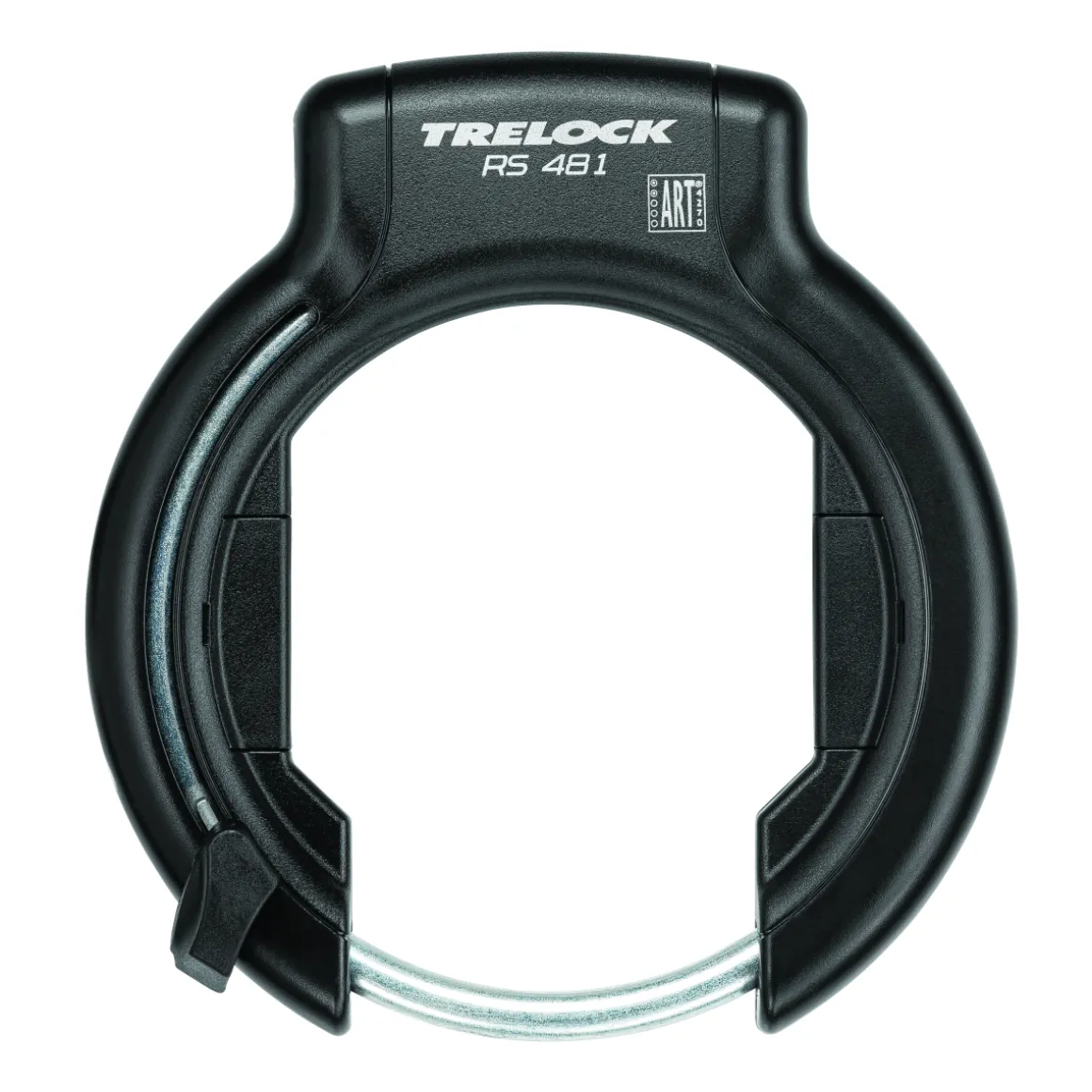

RS 481 XXL Frame Lock (AZ / NAZ)

In order to meet the trend towards wide tyres, TRELOCK offers cyclists the RS 481 XXL – a frame lock with an extra large pass-through width of 91.7 mm. However, the overall size remains pleasantly compact and the new RS 481 XXL is in no way inferior to the tried and tested frame locks in terms of security.

In addition, the RS 481 XXL can also be secured and connected with compatible plug-in chains and cables thanks to the tried-and-tested TRELOCK PROTECT-O-CONNECT system. This way you can protect your bike from being carried away and make it even more difficult for thieves.

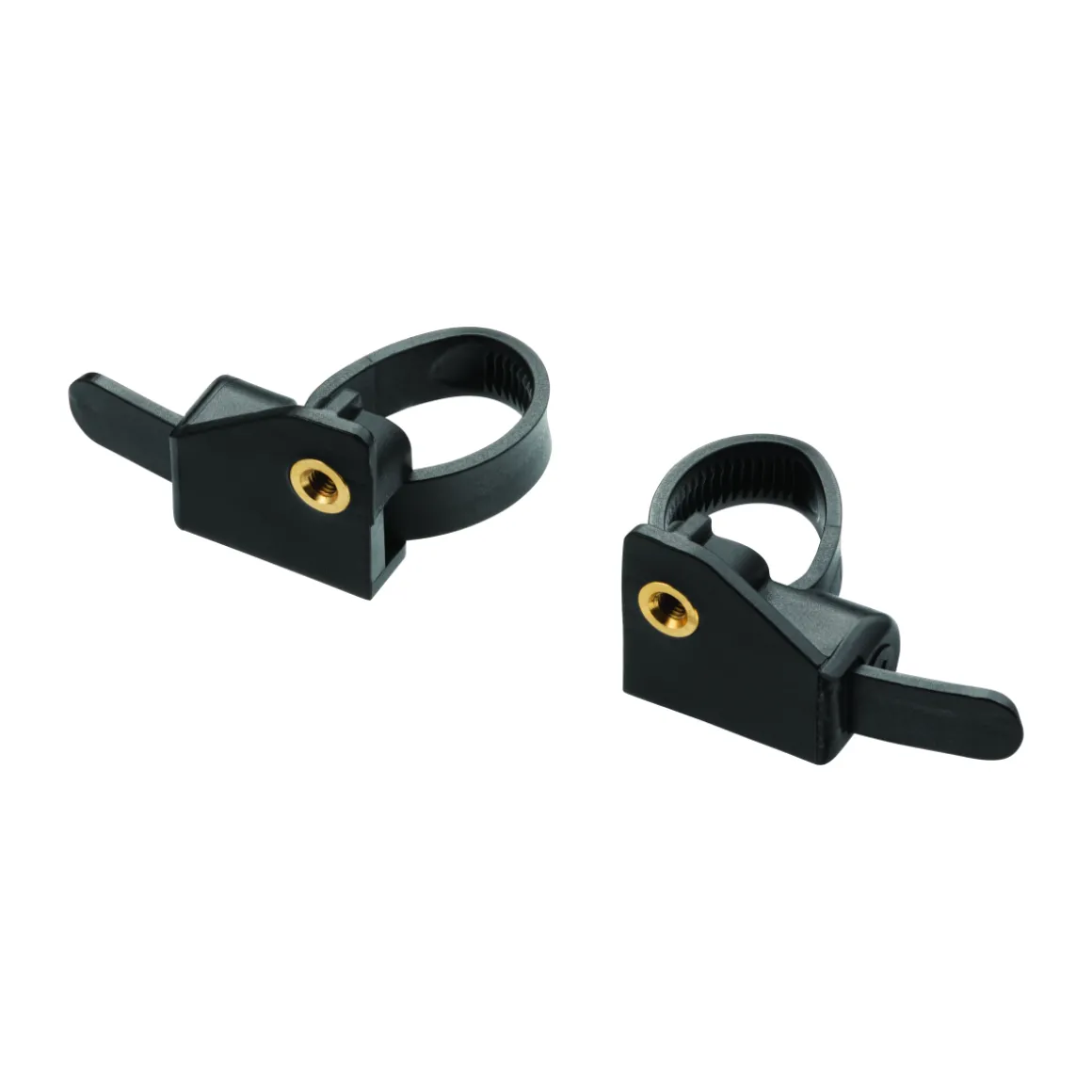

The lock can be mounted either directly on the frame using the corresponding screw threads or flexibly using the ZR 20 Vario straps supplied.

Details:
• TRELOCK Security Level: 13 (out of 18)
• Complies with the Dutch ART 2 star standard
• Compatible with TRELOCK ZR plug-in chains and cables
• IN-X locking cylinder with symmetrical key (reversible key)
• With TRELOCK key service

Available in two versions:
• Key can be removed even when the lock is open (AZ)
• Key can’t be removed when the lock is open (NAZ)
Please choose model.

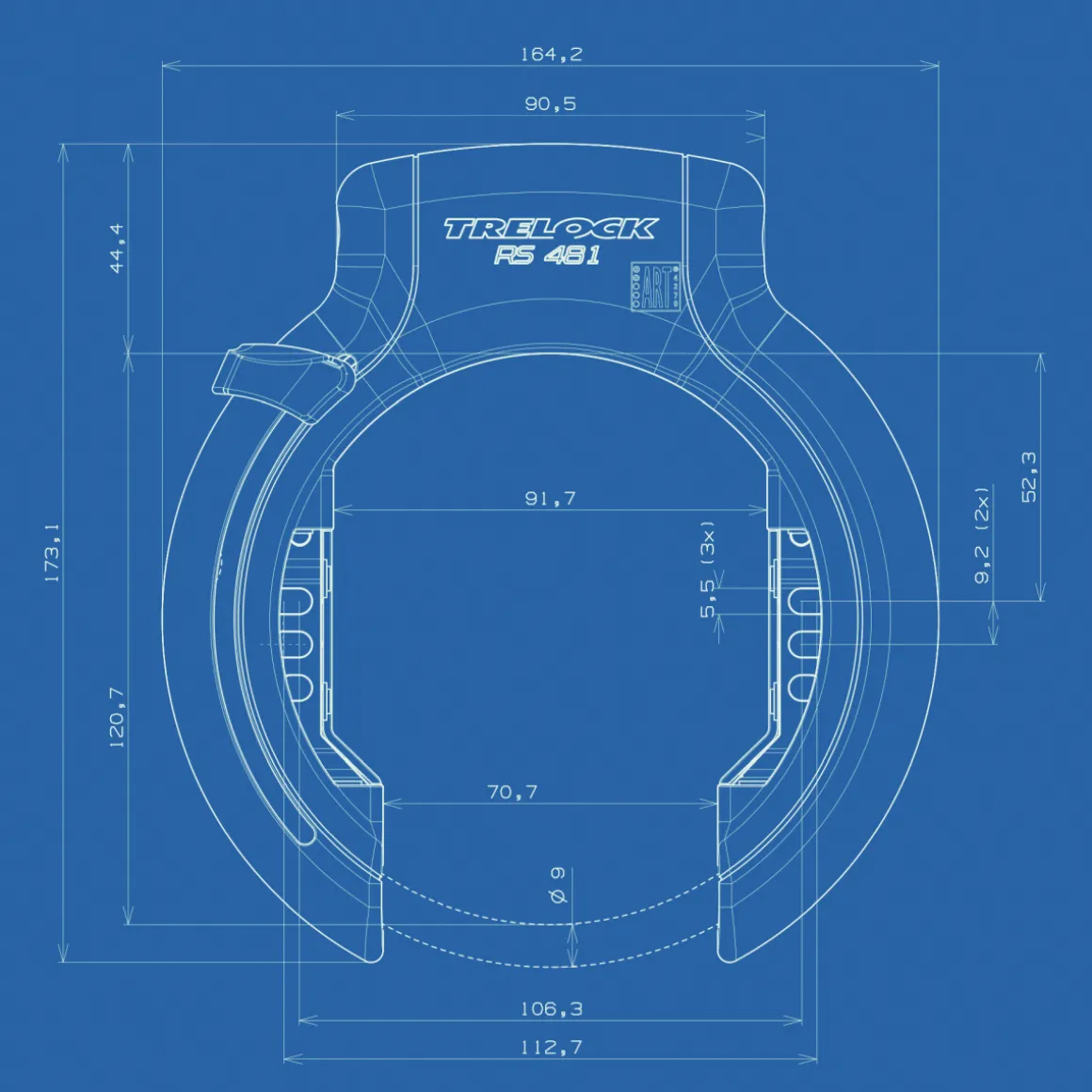

Technical details:
• Material: steel, plastic
• For seat stay Ø (Vario straps): 13 mm – 22.5 mm
• Max. pass-through width: approx. 91.7 mm
• Width of the opening : 70.7 mm
• Dimensions: approx. 17 x 16 x 4 cm
• Weight: approx. 720 g

In the box:
• 1 TRELOCK RS 481 XXL frame lock
• 2 TRELOCK ZR 20 Vario straps

• 2 TRELOCK keys
• 1 fixing screw (2 pcs.)

  Note:
  TRELOCK offers a key service for bike locks from TRELOCK Security Level 3 onwards (in exceptional cases also Level 1 and 2). You need the key number, that can be found on the key itself. The key number is absolutely necessary. Write the key number down and keep it in a safe place!

You can place your order online on the TRELOCK website. The keys will then be conveniently delivered to your home.

Manufacturer: Allegion Netherlands. B.V., Energiestraat 2, 3903 AV Veenendaal, The Netherlands, trelock.de/
