Set RS 480 XL Frame Lock (AZ / NAZ) – ZR 355 Plug-in Chain – Saddle Bag

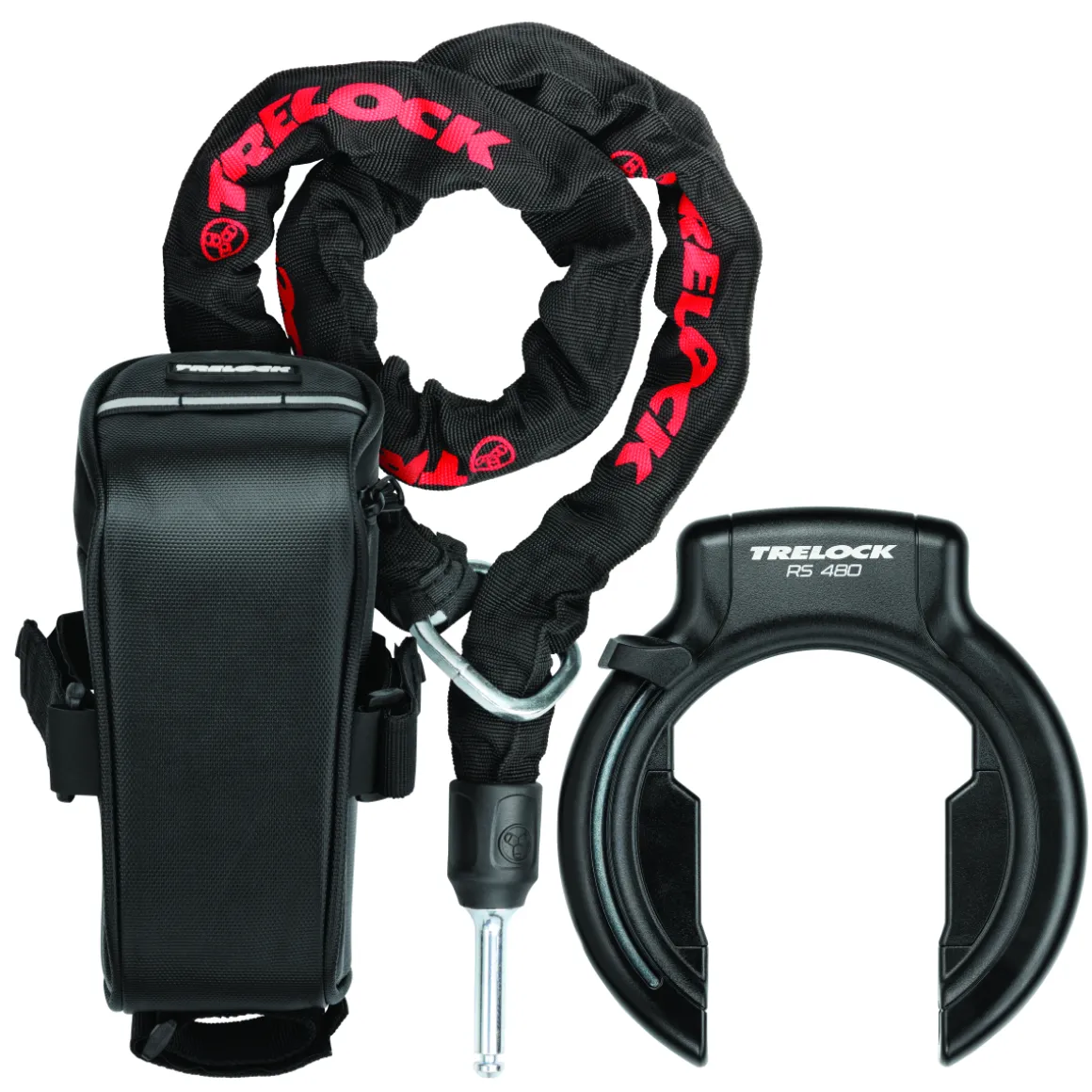

TRELOCK set consisting of:
• 1 TRELOCK RS 480 XL frame lock
• 1 TRELOCK ZR 355 plug-in chain
• 1 TRELOCK saddle bag

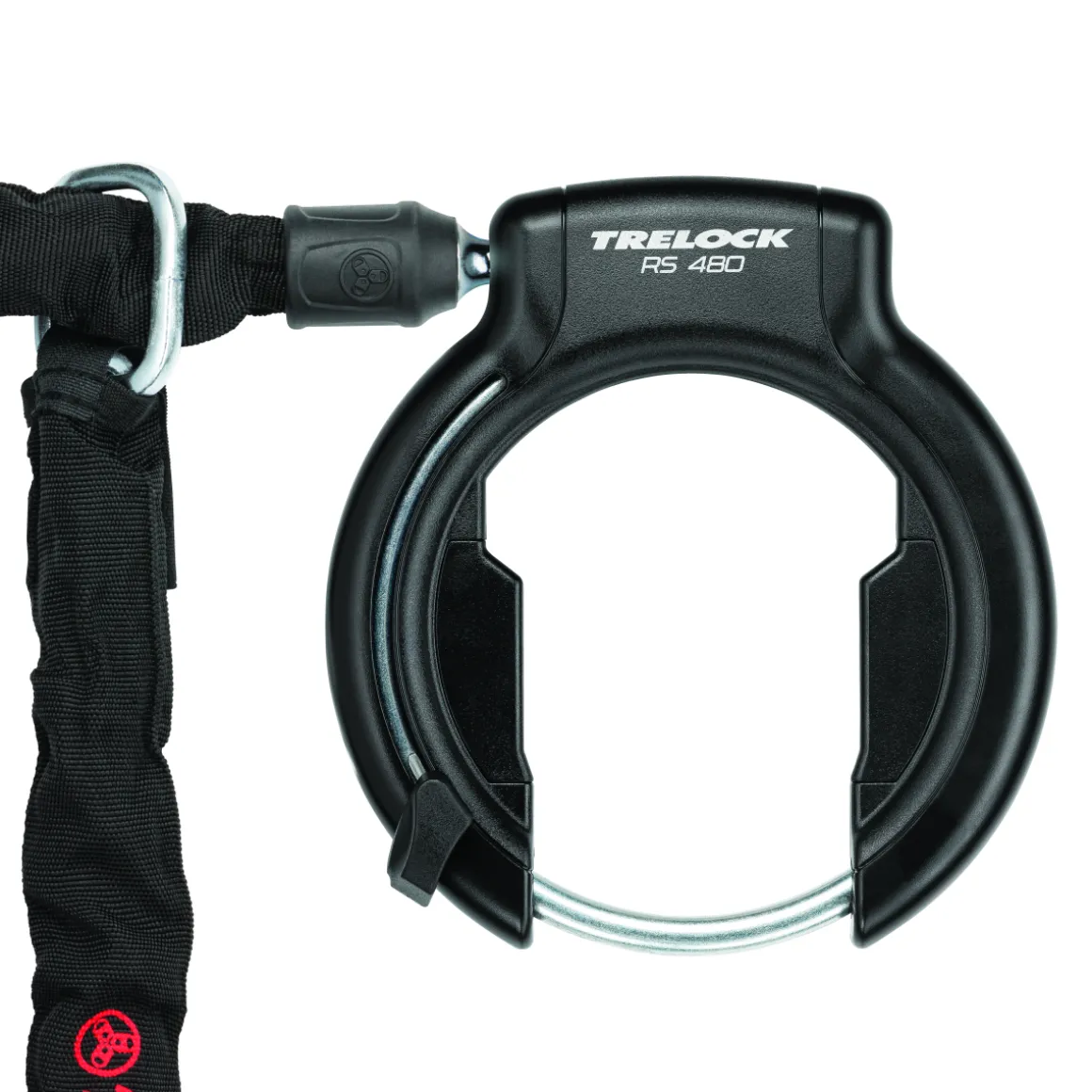

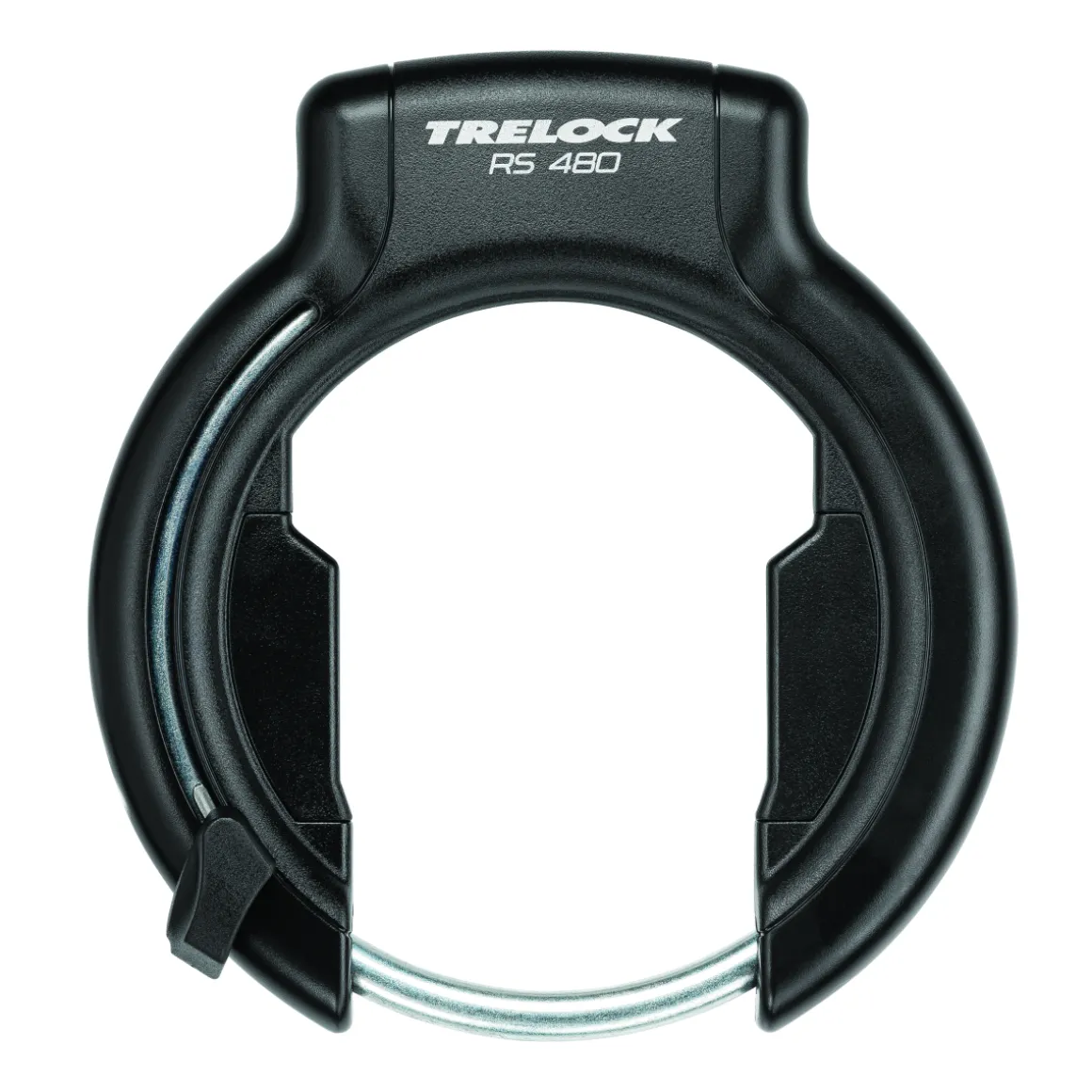

TRELOCK RS 480 XL FRAME LOCK
In order to meet the trend towards wide tyres, TRELOCK offers a tyre width of 75.5 mm. However, the overall size remains pleasantly compact and the new RS 480 XL is in no way inferior to the tried and tested frame locks in terms of security.

In addition, the RS 480 can also be secured and connected with compatible plug-in chains and cables thanks to the tried-and-tested TRELOCK PROTECT-O-CONNECT system. This way you can protect your bike from being carried away and make it even more difficult for thieves.

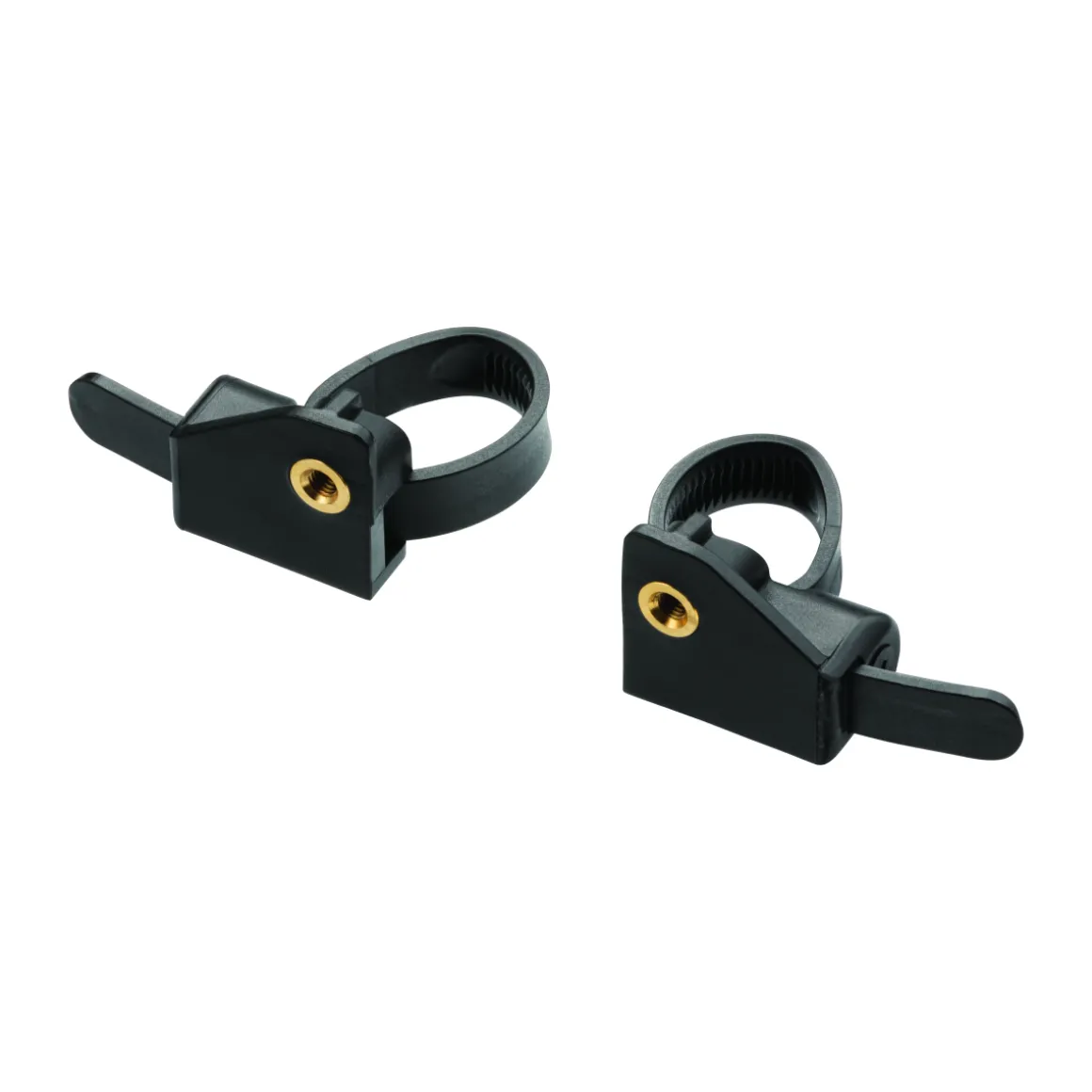

The lock can be mounted either directly on the frame using the corresponding screw threads or flexibly using the ZR 20 Vario bracket supplied.

Details:
• TRELOCK Security Level: 13 (out of 18)
• Complies with the Dutch ART 2 star standard
• Varefakta controlled (DK)
• IN-X locking cylinder with symmetrical key (reversible key)
• Compatible with Trelock plug-in chains and cables
• With TRELOCK key service

Available in two versions:
• Key can be removed even when the lock is open (AZ)
• Key can’t be removed when the lock is open (NAZ)
Please choose model.

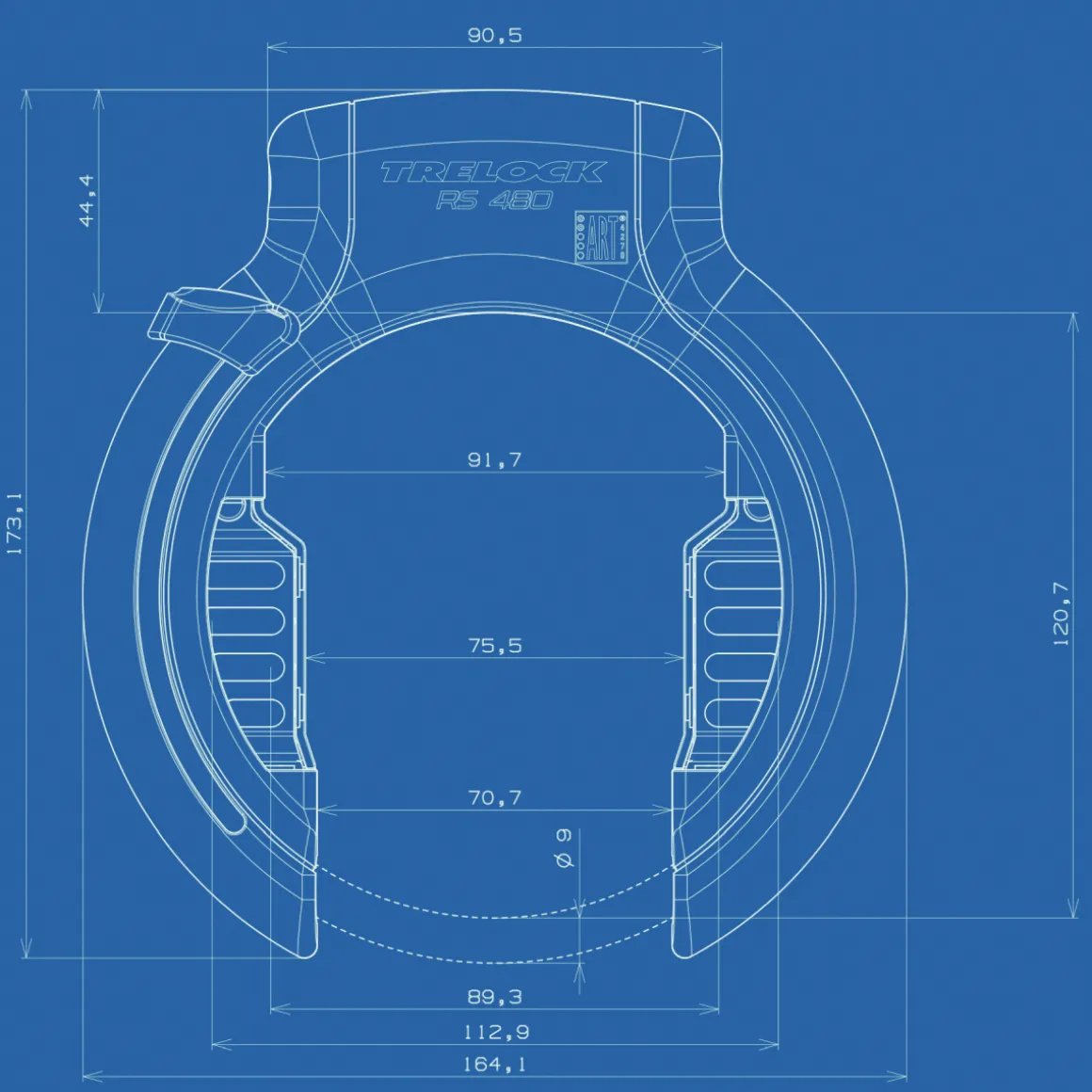

Technical details:
• Material: steel, plastic (control button)
• For seat stay Ø (Vario straps): 13 mm – 22.5 mm
• Max. pass-through width: approx. 75.5 mm
• Width of the opening : 70.7 mm
• Dimensions: approx. 17 x 16 x 4 cm
• Weight: approx. 720 g

TRELOCK ZR 355 PLUG-IN CHAIN

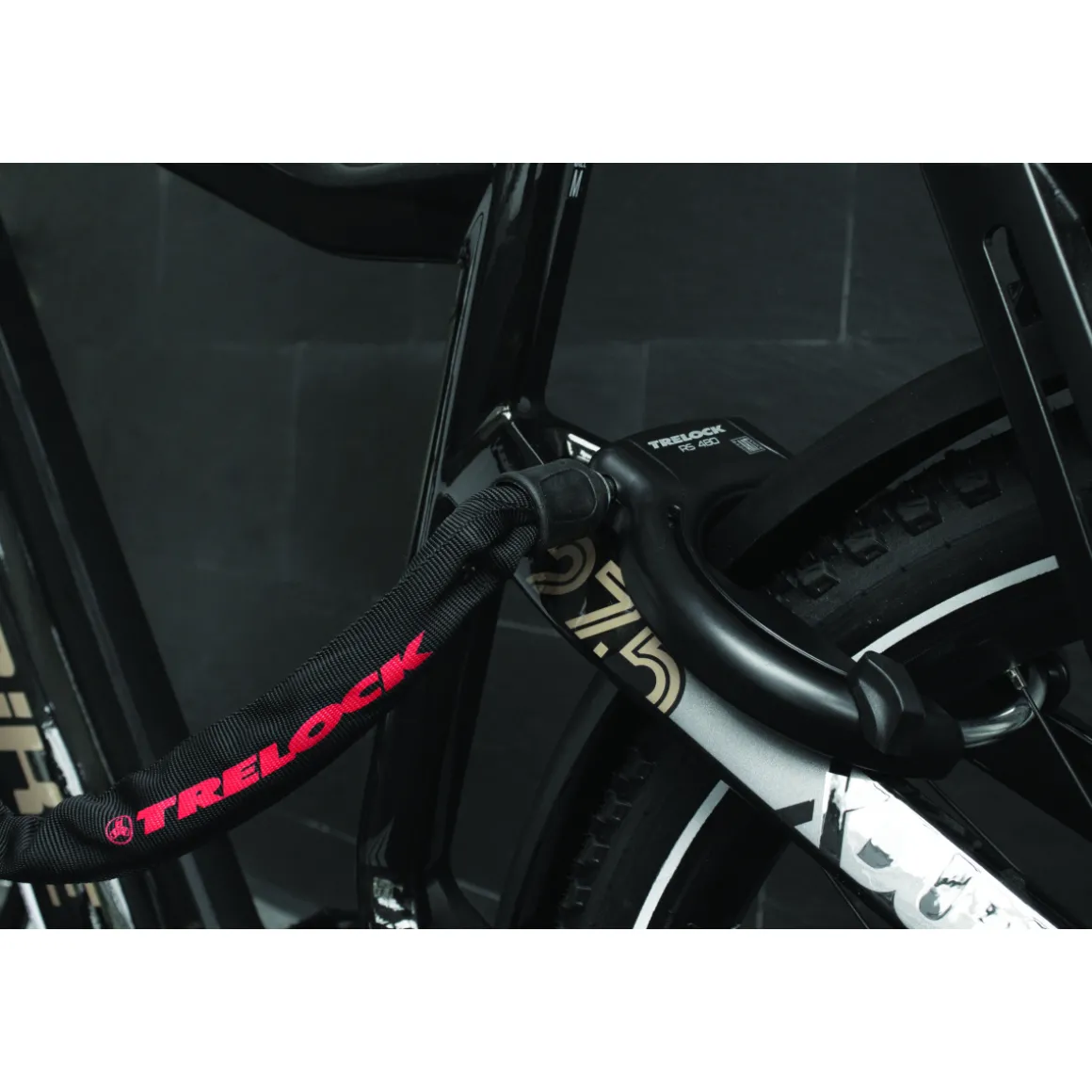

In order to protect your bike from thieves, you should chain it up. In combination with the RS 480 XL frame lock, the TRELOCK ZR 355 plug-in chain reduces the risk of theft immensely. Resistant chain links made of hardened steel give the plug-in chain an acceptable weight and make it an efficient protection for your bike.

The TRELOCK additional chain has chain links with a diameter of 6 mm and, together with the PROTECT-O-CONNECT frame lock, is protected by two anti-theft devices in one locking process. This means double security, which is hard to crack.

Details:
• Locking bolt is simply locked into the plug-in opening of the frame lock
• Hardened chain links with protective textile cover

Technical details:
• Material: hardened steel (chain links), polyester fabric (protective cover)
• Length: approx. 100 cm
• Chain links strength: 6 mm

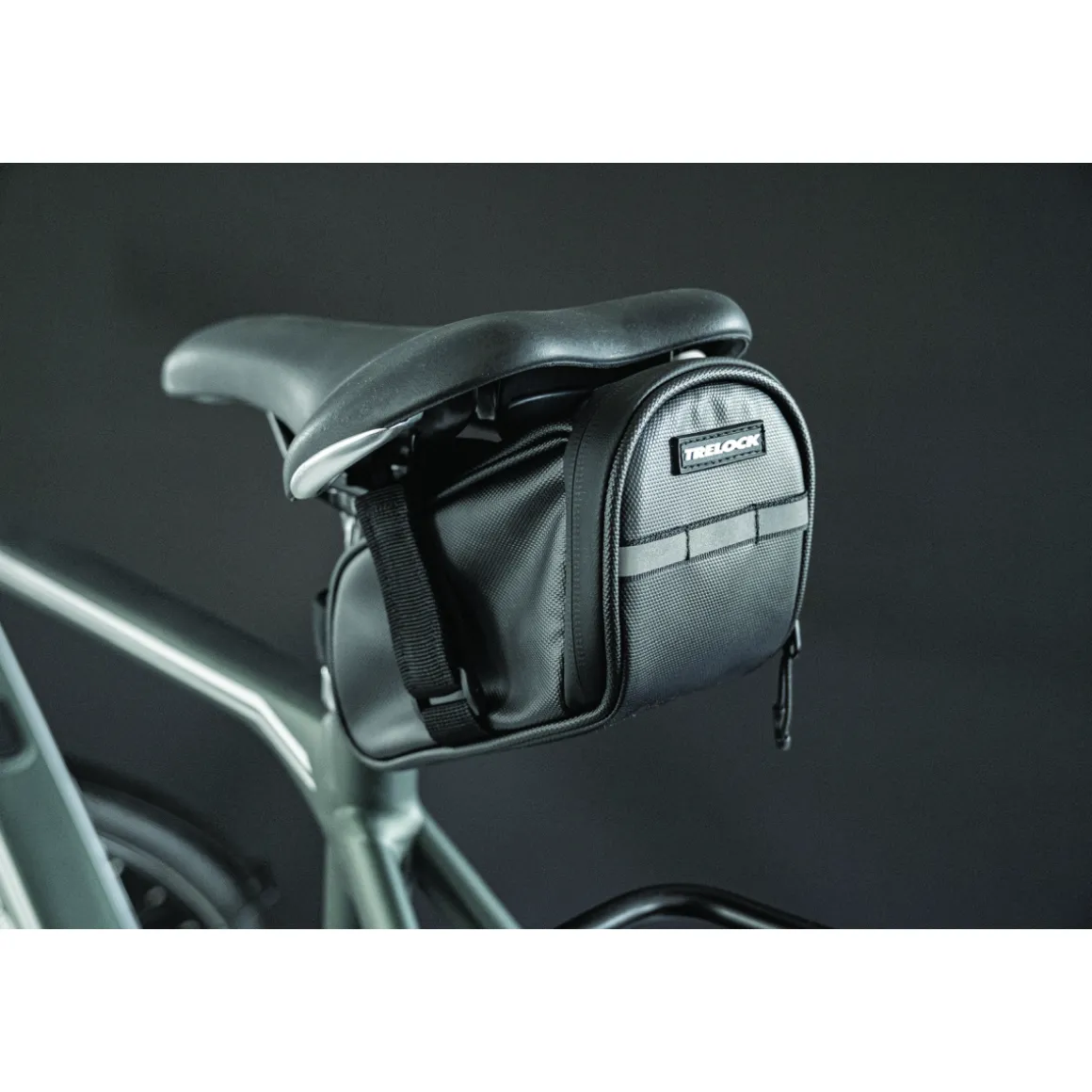

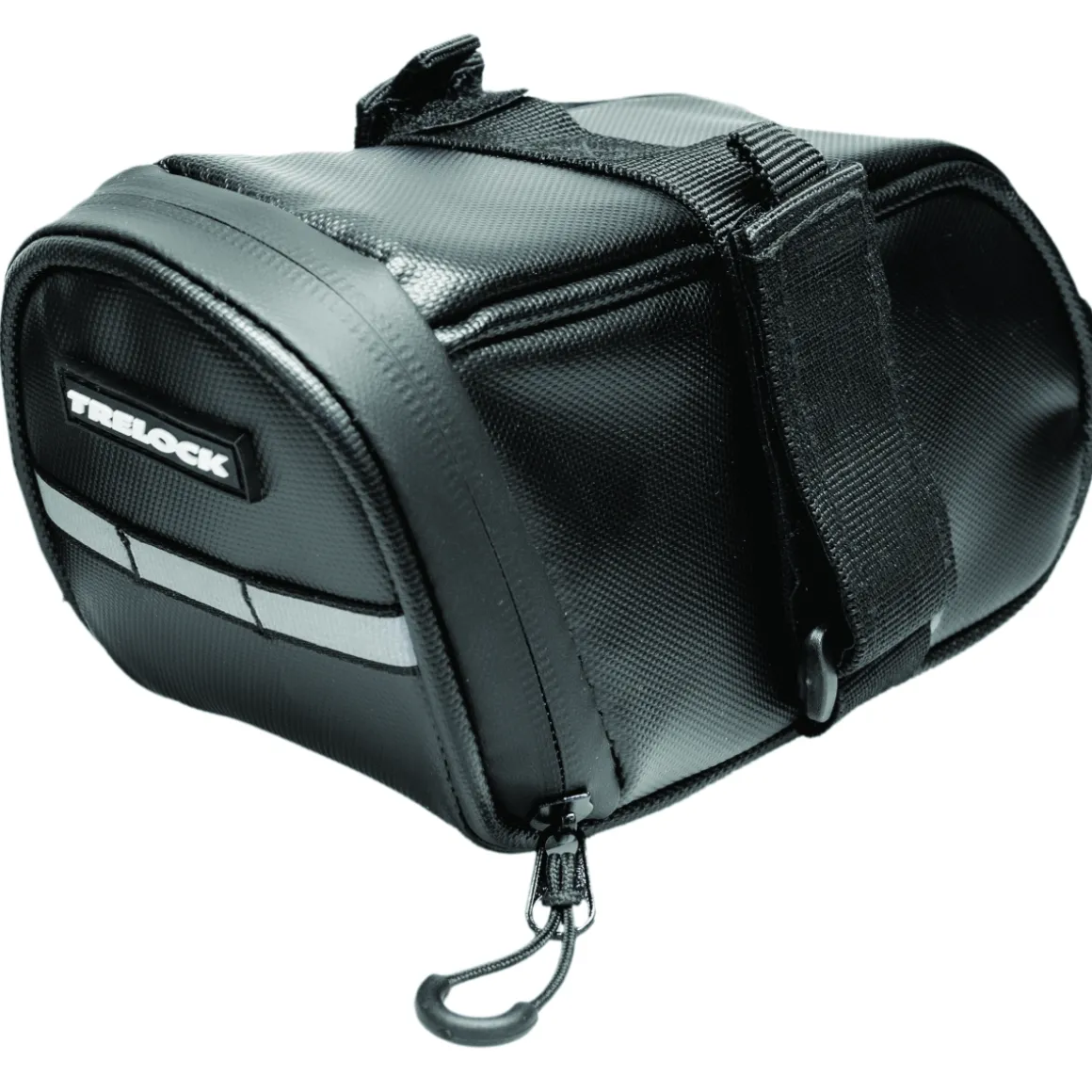

TRELOCK SADDLE BAG
The TRELOCK saddle bag solves the problem of transporting the plug-in chain all by itself. Simply attach the bag to the saddle frame and seat post using the universal Velcro straps and transport the plug-in chain securely and within easy reach.

Details:
• Practical saddle bag for transporting the TRELOCK plug-in chain
• Mounting on saddle frame and seat post with universal Velcro straps

Technical details:
• Dimensions: approx. 20 x 9 x 9 cm
• Max.load: 2 kg
• Weight: approx. 115 g

Tip:
If you don’t need a plug-in chain, you can of course also use the TRELOCK saddle bag as a normal saddle bag for other things.

In the box:
• 1 TRELOCK Set RS 480 XL frame lock
• 1 TRELOCK ZR 355 plug-in chain
• 1 TRELOCK saddle bag
• 2 TRELOCK keys
• 2 TRELOCK ZR 20 Vario straps
• 1 fixing screw (2 pcs.)

Note:
TRELOCK offers a key service for bike locks from TRELOCK Security Level 3 onwards (in exceptional cases also Level 1 and 2). You need the key number, that can be found on the key itself. The key number is absolutely necessary. Write the key number down and keep it in a safe place! (Of course before you lose the key!)
You can place your order online on the TRELOCK website. The keys will then be conveniently delivered to your home.

Manufacturer: Allegion Netherlands. B.V., Energiestraat 2, 3903 AV Veenendaal, The Netherlands, trelock.de/
