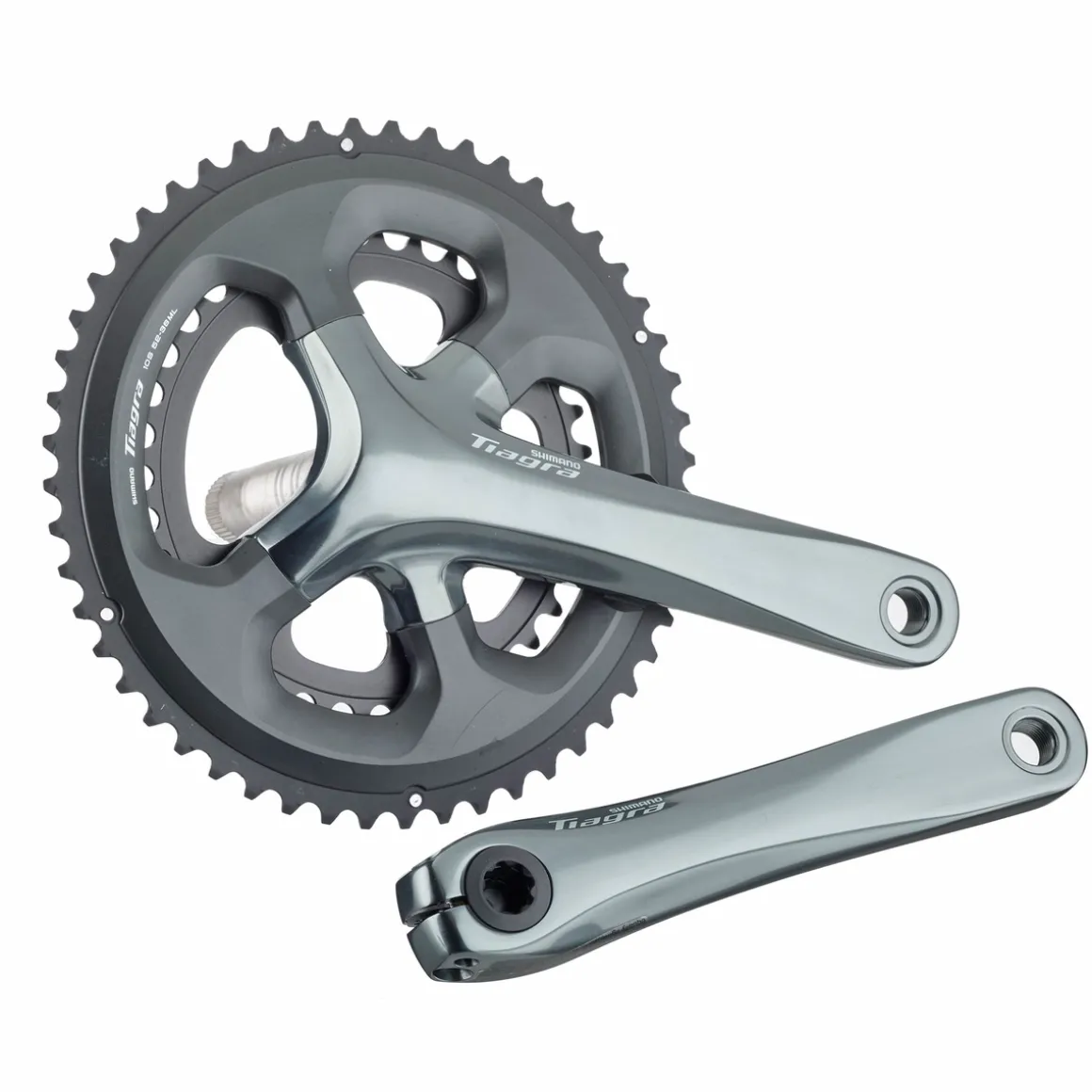

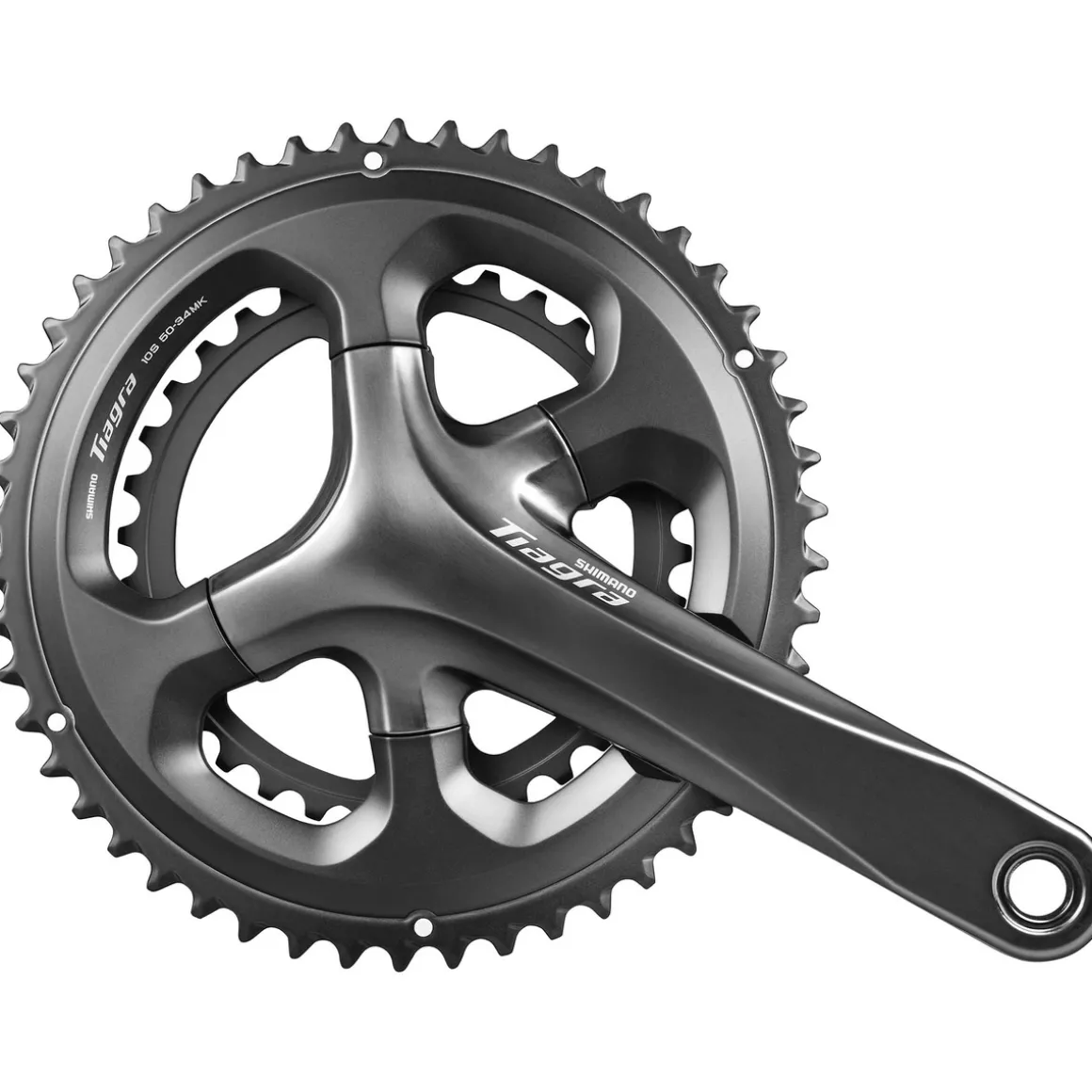

Tiagra FC-4700 Crankset 2×10

The Tiagra 4700 10-speed crankset by SHIMANO offers ambitious entry-level performance while featuring many technologies of the top groups.

Specs:
Intended use: Gravel, Road, Cyclocross
Aluminium crank arms
Aluminium chainrings
Compatibility: 2×10-speed
For 10-speed HG-X chains (e.g. SHIMANO Deore CN-HG54 HG-X chain, product code: 1770559)
Crankset with integrated BB axle
For a shell width of: 68 / 70 mm
Bolt circle: 110 mm/ 80 mm (asymmetric)
Chainline: 43.5 mm
Weight: approx. 865 g

Gear ratio:
50/34 teeth
52/36 teeth
48/34 teeth
Please make your choice.

Crank arm length:
170 mm
175 mm
Please make your choice.

In the box:
1x SHIMANO Tiagra FC4700 crankset (10-speed)
WITHOUT bottom bracket!

Bottom bracket cups NOT included, but separately available:
SM-BBRS500 BSA (product code: 2137335)
SM-BBRS500 PressFit (product code: 2234045)
Pressfit SM-BBR60 (product code: 1955804)
Pressfit SM-BB72 (product code: 1955813)

Note:
Due to group-specific requirements ONLY compatible with Tiagra components of model series 4700, 4703, 4720 and 4725.
