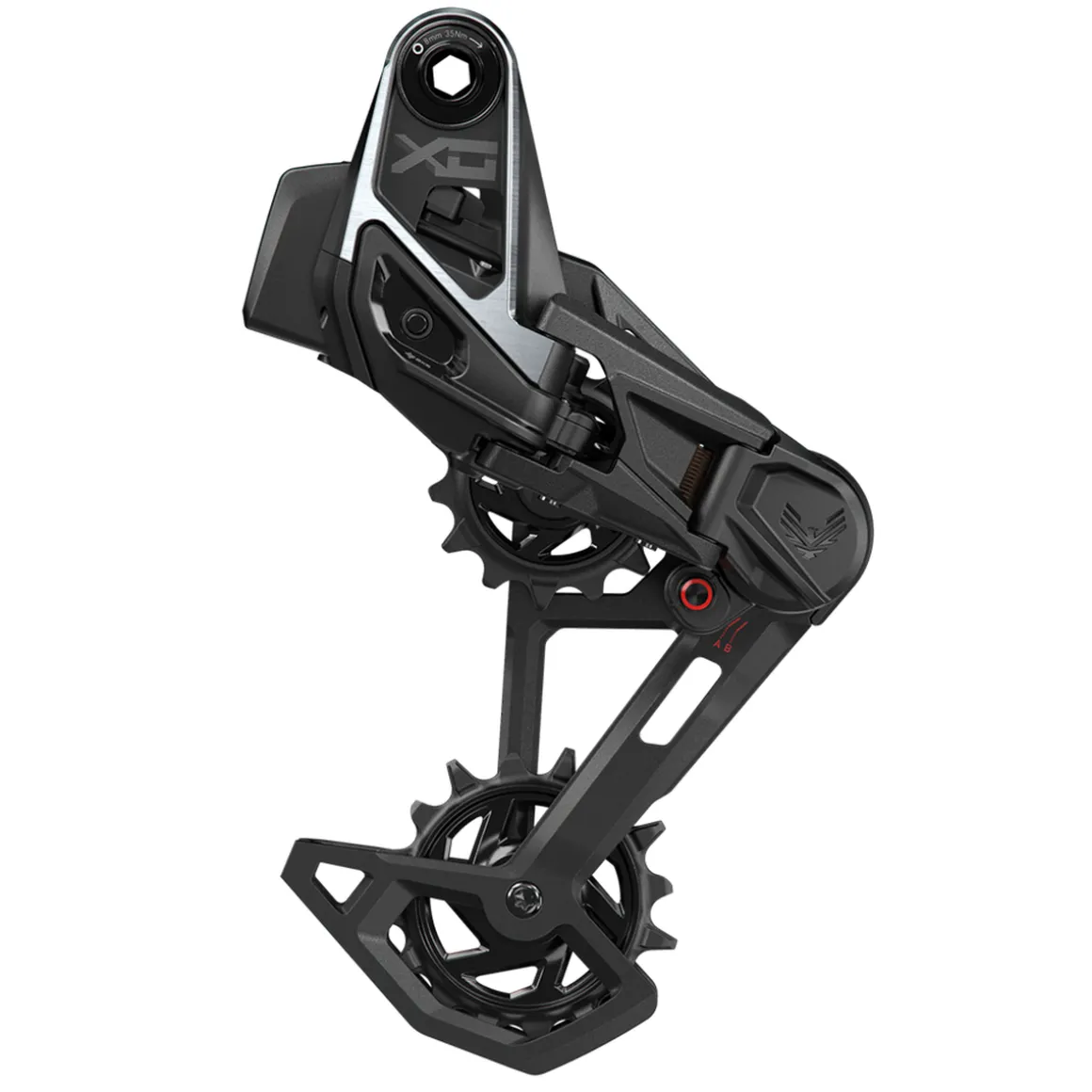

X0 Eagle Transmission™ AXS™ 12-Speed Rear Derailleur

Throughout the history of the SRAM Eagle™ drivetrain and the pure SRAM single-speed drivetrain, the American manufacturer has continued to optimise the facets of the system. Despite this success, the engineers did not rest and wondered if an even higher level of performance was possible. The result is the SRAM Eagle Transmission™ drivetrain!

Eagle Transmission™ is based on the basic constant of the wheel axle itself and is an extremely robust, fully integrated and wireless drivetrain based on the SRAM AXS™ system. It simplifies installation and handling and sets new standards in durability. The Eagle Transmission™ rear derailleur does not require a derailleur hanger or adjustment bolts, and thanks to precisely coordinated components and electronically controlled shifting points, it allows for perfect gear changes at all times – even under full load!

The X0 Eagle Transmission™ 12-speed rear derailleur is a competition-tested powerhouse!
It has a very slim rear derailleur geometry and thus offers less collision area when used on rough trails. The rear derailleur cage is made of robust aluminium and the proven Overload Clutch ensures the best possible impact protection.
Like every Eagle Transmission™ rear derailleur, the X0 fundamentally changes the relationship between cassette, rear derailleur and chain. The high-quality T-Type rear derailleur is mounted around the wheel axle and uses a hangerless interface. The Full Mount attachment method creates a strong connection and grips both sides of the frame.
The X0 Eagle Transmission™ rear derailleur features the same intuitive pairing and set-up procedure as all other AXS™ rear derailleurs.

ATTENTION!
The prerequisite for mounting the rear derailleur is a UDH*-compatible frame! (*Universal Derailleur Hanger)
The installation itself is relatively simple and reduced to the essentials. However, it differs significantly from the installation of previous shifting systems. Therefore, please be sure to observe the operating & assembly instructions!

Details:
Hangerless interface, full mount attachment method
Very slim rear derailleur geometry for less collision area
Compatible with SRAM AXS™ for easy customisation
Overload Clutch for best impact protection
Compatible with current AXS™ batteries (eTap® batteries)

Technical details:
Intended use: MTB (Trail, All-Mountain, Enduro, E-MTB)
Series: X0 Eagle Transmission™
Model: RD-X0-E-B1
Type: T-Type
Material: Aluminium
Battery type: AXS™ battery (optional, see prod. code: 2262222)
Gears: 1 x 12 speed
Max. front difference: 0 teeth
Large sprocket max.: 52 teeth
Large sprocket min.: 10 teeth
Weight: approx. 466 g (incl. battery)

In the box:
1 SRAM X0 Eagle Transmission™ AXS™ 12-speed rear derailleur
WITHOUT battery!

ATTENTION!
Due to the attachment, chainline and other differences in construction NOT compatible with SRAM Eagle™ 12-speed components!
