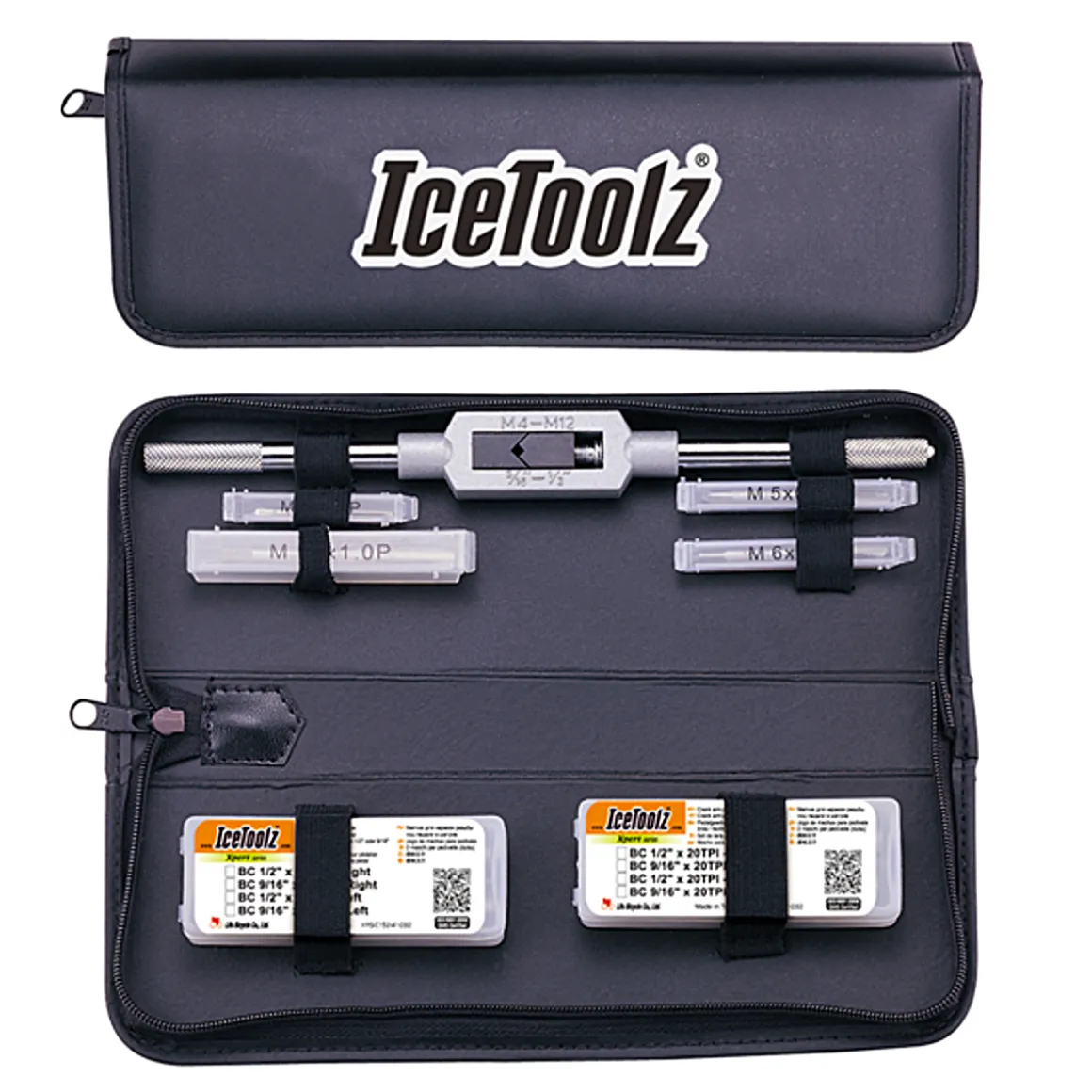

Xpert Tap Set

The IceToolz Xpert tap set contains hardened taps for cutting popular thread sizes by hand when installation components on the frame of your bicycle. No matter if you want to thread cut drilled holes for mudguard stays or re-thread damaged threads of derailleur hangers or pedal cranks: The high-strength taps ensure accurate screw connections. The double ended lever of the robust tap wrench lies perfectly in your hands for a good transfer of torque.

Details:
Hard metal hand tap set
Workshop quality
For thread cutting metal after pre-drilling

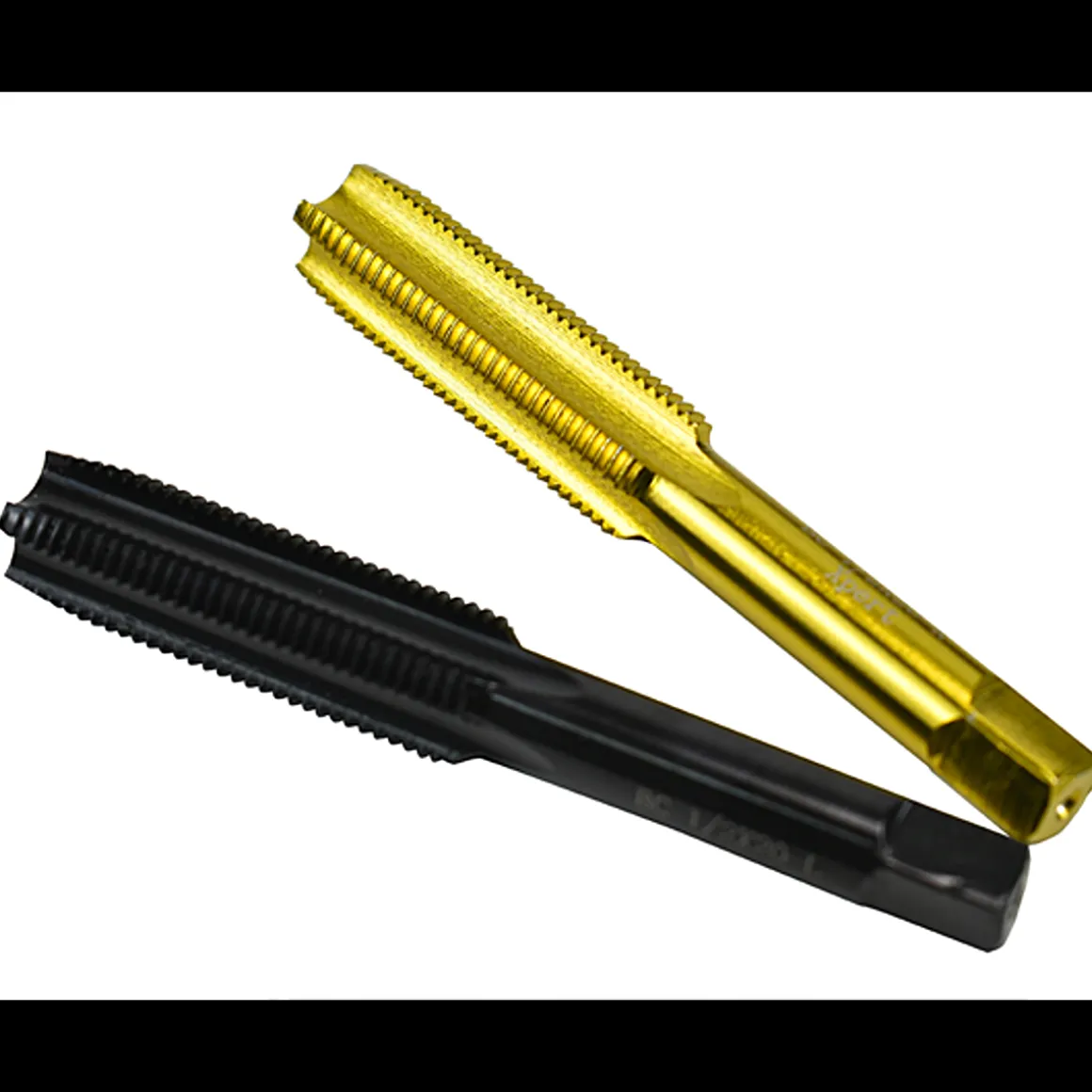

Cutting tap with flute
Wear protection coating made of TiN (titanium nitride) or vaporised (VAP)
Cuts metric coarse pitch threads and fine pitch threads
Long tool life

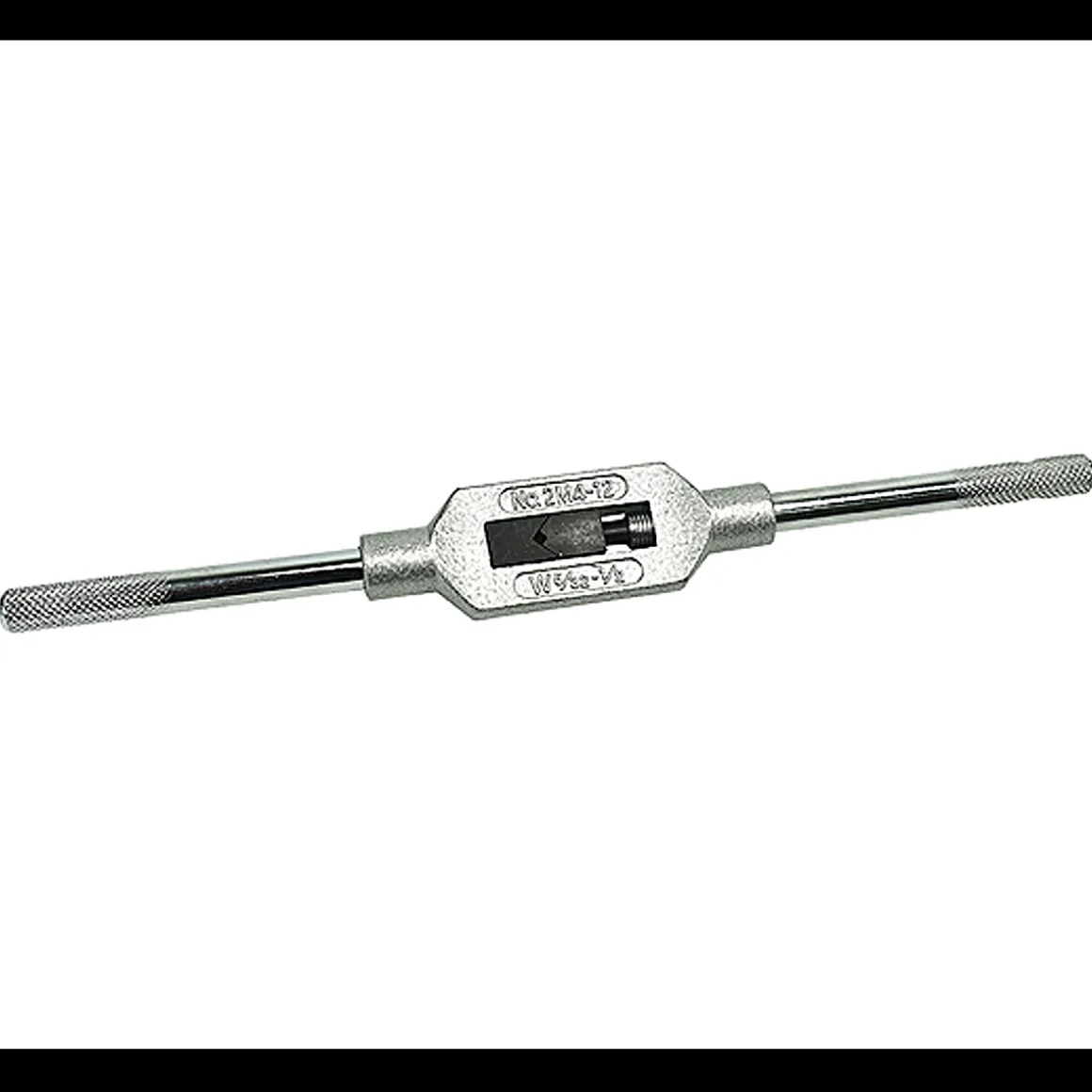

Precisely adjustable tap wrench
Comes in a tool pouch with organizer
Dimensions (pouch): approx. 27.5 x 9.5 x 3.5 cm
Weight: approx. 615 g
Material: HSS hard metal (drill), plastic

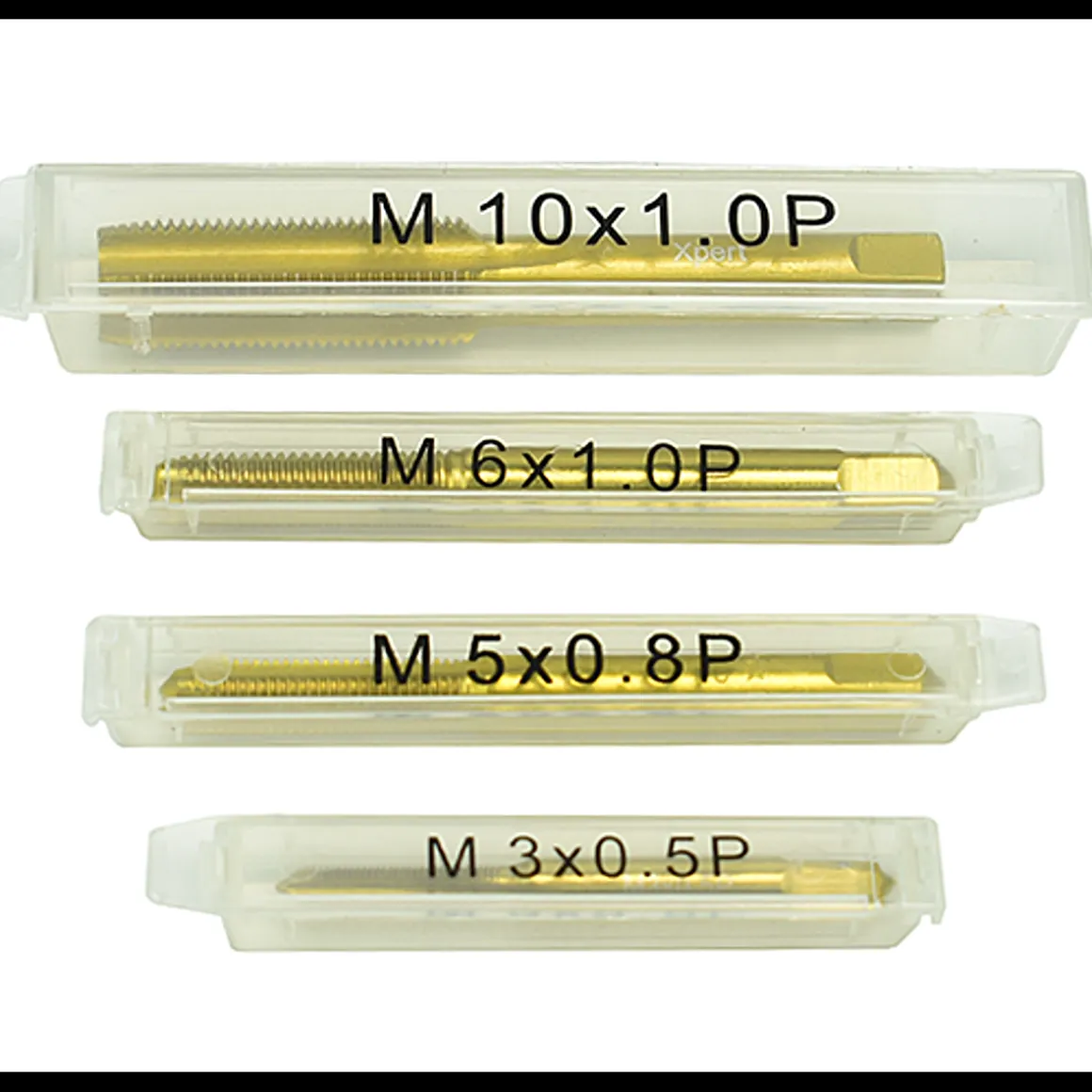

Sizes (Ø x pitch mm):
M3 x 0.5 – (dropout alignment screws)
M5 x 0.8 – (e.g. for bottle cages, mudguard bracket)
M6 x 1.0 – (brake mount, large mudguard bracket)
M10 x 1.0 – (derailleur hanger)
1/2″ x 20 / FG 12.7 left + right – (pedal thread)
9/16 ”x 20 / G 14.3 left + right – (pedal thread)

In the box:
8 taps
Tap wrench
Pouch

Note:
Not suitable for carbon! You should generally use cutting oil (e.g. product 49205800) for thread cutting to reduce the friction between cut chips and the cutting edges of the tool and to reduce the required torque.
