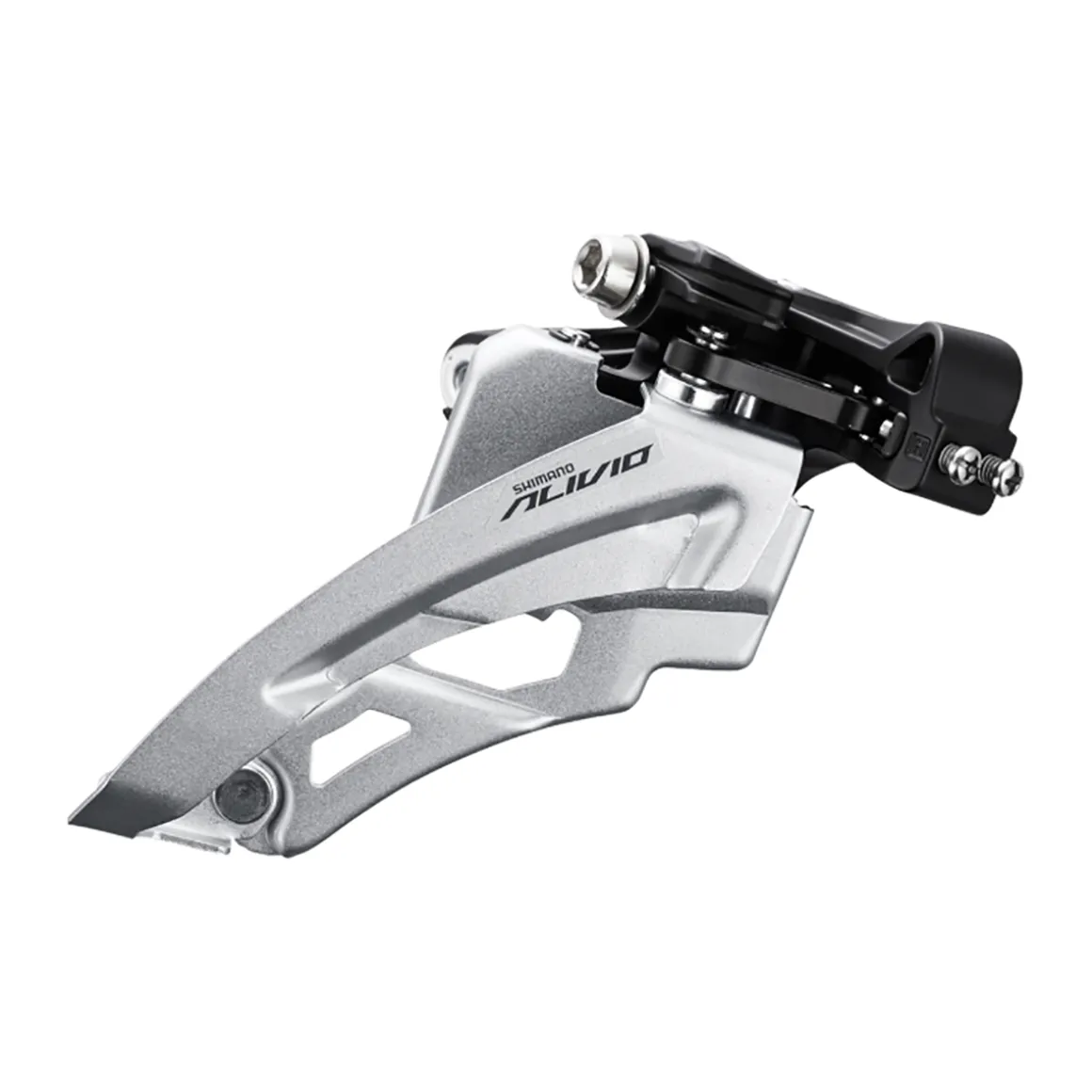

ALIVIO FD-M3100-M Front Derailleur 3 x 9-speed – Clamp Attachment

The SHIMANO FD-M3100-M 3 x 9-speed front derailleur with clamp attachment has the established SIDE SWING technology from SHIMANO for better cable routing, ease of motion, and problem-free control. The reworked design also offers more room for large wheels and short chainstays.

Details:
SIDE SWING design for better tyre clearance and efficient cable routing for smooth shifting
For high performance and quiet shifting with triple crankset
Reworked cage design reduces chain abrasion with fully suspension bikes

Specs:
Intended use: MTB
Series: ALIVIO
Model: FD-M3100-M
Material: aluminium, steel
Type: M-Type (Mid-Clamp attachment Ø 34.9 mm (with adapter 31.8/28.6 mm))
Drive: Front Pull
Gear steps front: 3-cross
Gear steps rear: 9-speed
Large chainring: max. 40 teeth
Total capacity: 18 teeth
Chainline: 50 mm
Chain stay angle: 66-69°
Compatible chains: SHIMANO HG 9-speed

In the box:
1 SHIMANO ALIVIO FD-M3100-M Front Derailleur for fast assembly (mid-clamp)
ATTENTION:
The front mech requires a frame that allows front pull.
