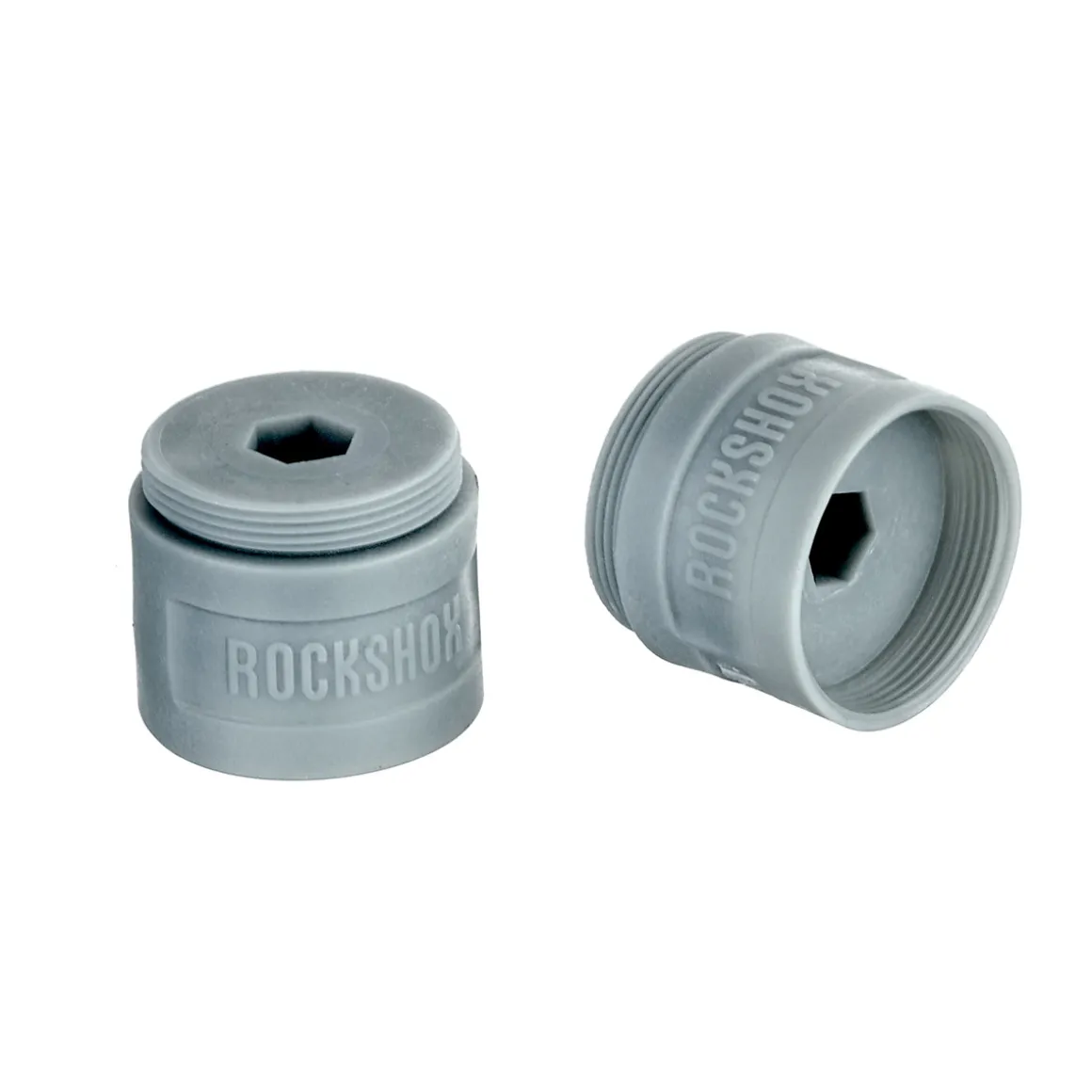

Bottomless Token Volume Spacers

Original Rock Shox volume spacers to adjust the spring characteristics of your bike.

2 pieces
Grey

Manufacturer’s ref.: 11.4018.032.000

Bottom-Less Token for:
Pike Solo Air (from 2014)
Pike DJ (from 2014)
Lyrik Solo Air (from 2016)
Yari Solo Air (from 2016)
BoXXer Solo Air (from 2011)

Standard volume spacer configuration:

Lyrik / Yari (27.5“/29“):
120 mm:
Fitted with: 4
Max.: 7
130 mm:
Fitted with: 3
Max.: 6
140 mm:
Fitted with: 3
Max.: 6
150 mm:
Fitted with: 2
Max.: 5
160 mm:
Fitted with: 2
Max.: 5
170 mm:
Fitted with: 1
Max.: 4
180 mm:
Fitted with: 0
Max.: 4

Pike (26″ /27.5“):
120 mm:
Fitted with: 3
Max.: 5
130 mm:
Fitted with: 2
Max.: 5
140 mm:
Fitted with: 1
Max.: 4
150 mm:
Fitted with: 0
Max.: 4
160 mm:
Fitted with: 0
Max.: 4

Pike (29″):
120 mm:
Fitted with: 4
Max.: 6
130 mm:
Fitted with: 3
Max.: 5
140 mm:
Fitted with: 2
Max.: 5
150 mm:
Fitted with: 1
Max.: 4
160 mm:
Fitted with: 1
Max.: 4

Pike DJ:
100 mm:
Fitted with: 0
Max.: 2
110 mm:
Fitted with: 0
Max.: 2
140 mm:
Fitted with: 2
Max.: 4

BoXXer Solo Air:
Fitted with: 1
Max.: 4
