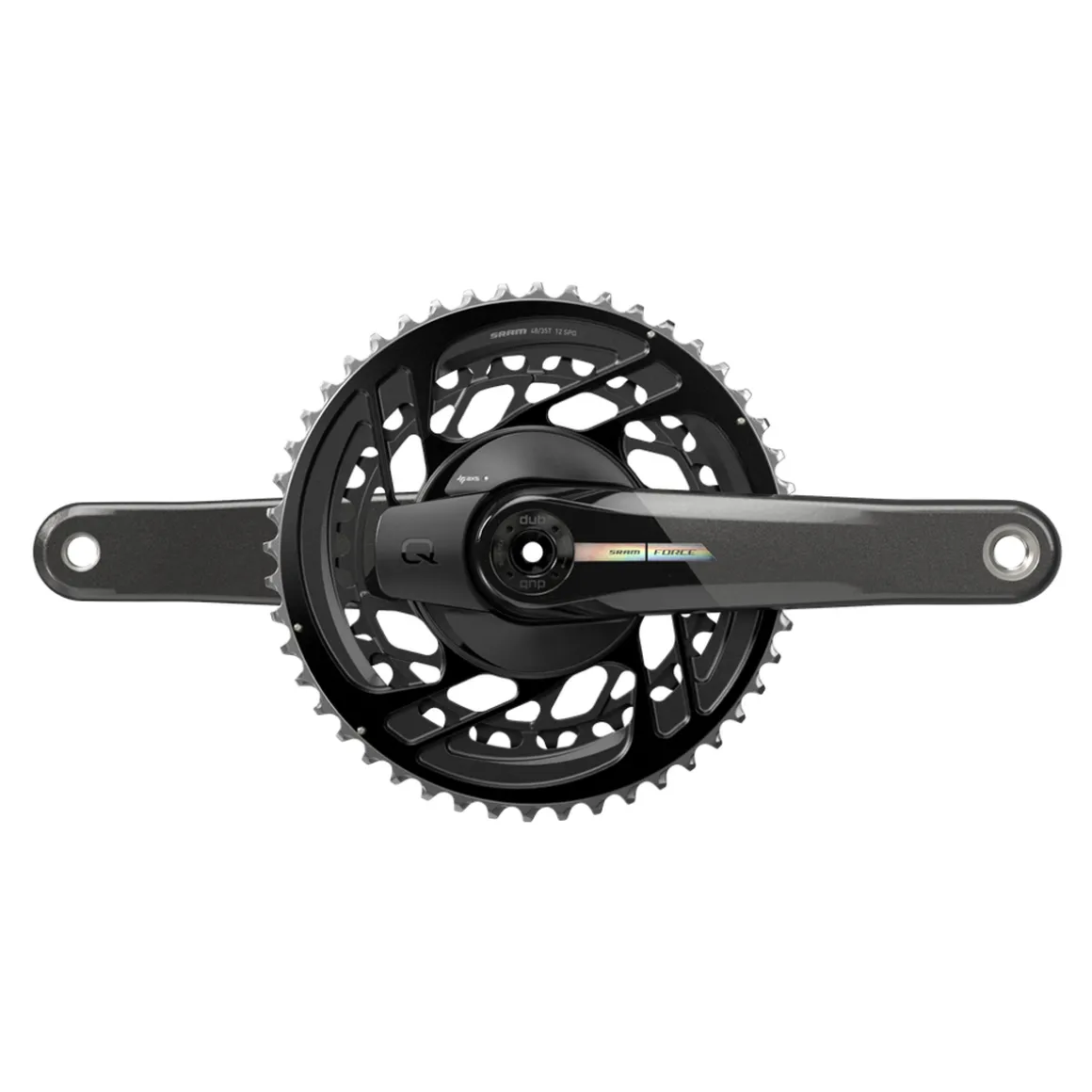

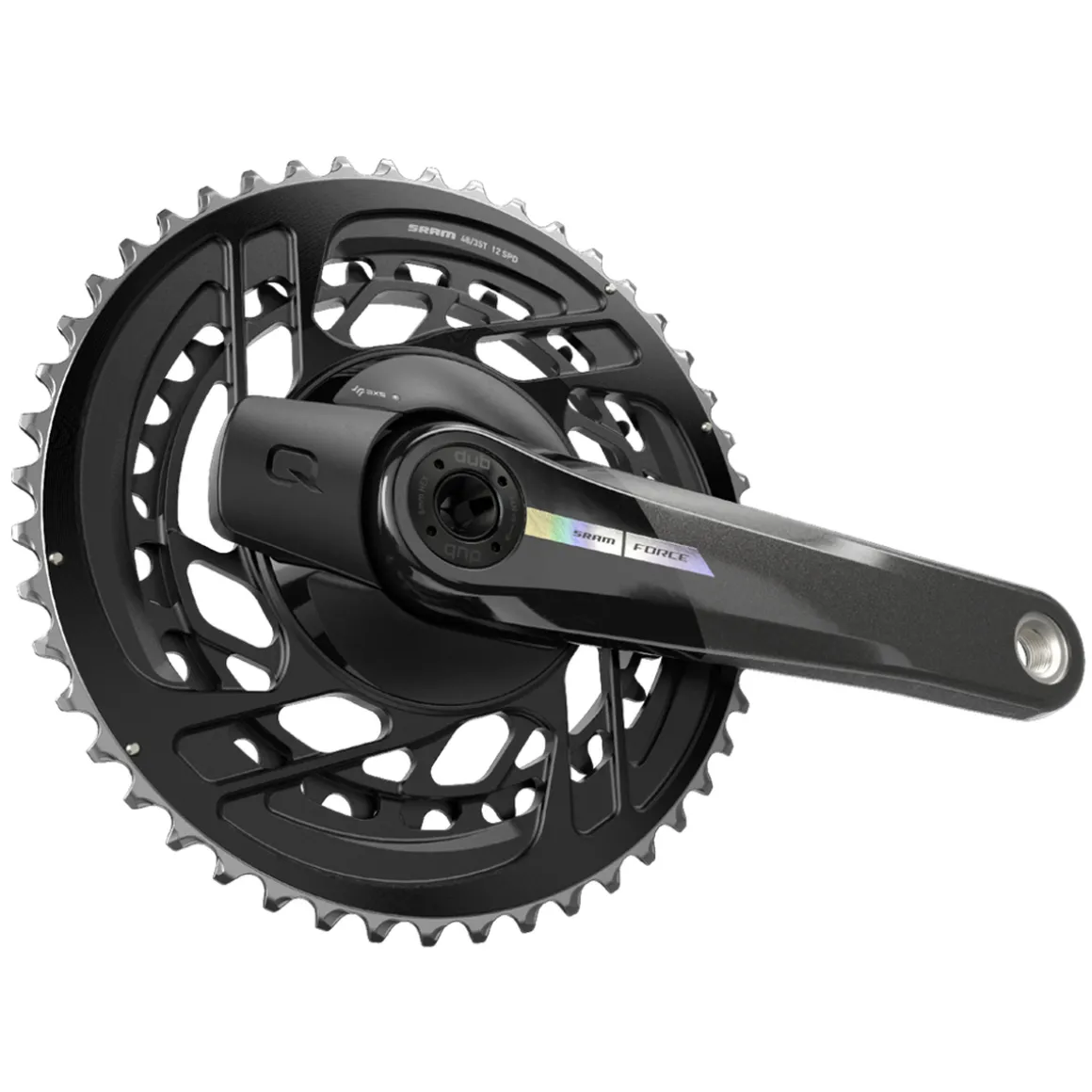

Force® AXS™ Power Meter Crankset 2 x 12-Speed

Based on the Force® 12-speed crankset with its elegant carbon crank arms, the powerful Force® AXS™ measurement system completely integrates the DZero™ power measurement technique by Quarq into the one-piece Direct Mount chainring design with X-Range™ technology.
With this technology, SRAM has managed to shift the gear range of the drivetrain from the front to the rear. Thus, all Force® AXS™ double cranksets, including all power meters, feature smaller chainrings and a constant chainring spacing of 13 teeth, which results in smoother and faster shifting and always provides the perfect gear ratio in combination with the 12-speed cassette at the rear.

The power output in watts is calculated by multiplying torque (pedal force) by cadence. High-quality sensors determine performance data with +/- 1,5% accuracy. Moreover, they offer independent right and left leg measurement thanks to the Power Balance™ technology. What’s more, the DZero™ power measurement technology even takes into account climatic parameters like temperature. This eliminates fluctuations of the measured values caused by high or low temperatures.
The SRAM RED® AXS™ power meter transfers all data collected wirelessly, using ANT+ or Bluetooth 4.0 (BLE). Thus, it is compatible with most smartphones and almost all common bike computers that designed to display performance data.
Adjustments, calibration and integration into an existing AXS™ Road group are done via the SRAM AXS™ app. This electronic integration platform allows you to check the status of the battery, fine tune the components, adjust the controllers, receive maintenance reminders and update the firmware.

Details:
X-Range™ technology for more bandwidth and better shifting performance
Carbon crank arms for high stiffness and low weight
Improved shifting performance for fast and precise gear shifts
Special DirectMount chainring design with built-in Quarq DZero™ measurement technology for a lighter, stiffer and more durable crankset
Power measurement accuracy of +/- 1.5%
Power Balance™: Independent left and right leg measurements
DUB™ technology: 28.99 mm axle Ø for improved protection against dirt and full compatibility with all common BB standards

Technical details:
Intended use: Road
Compatible with SRAM AXS™ for easy customisation
Replaceable CR2032 battery for approx. 200 hours of riding
Wireless communication with ANT+ or Bluetooth LE
IPX7 waterproof rating
LED display for easy setup and error diagnosis
Compatible with SRAM Road 12-speed chains
Carbon crank arm
Crank arm length: 172.5 mm
DUB™ crank axle (28.99 mm axle Ø)
DirectMount chainrings
Material chainring: 7075 T6 aluminium
Chain line: 45 mm

Gear ratio:
33 – 46 teeth
35 – 48 teeth
37 – 50 teeth
Please indicate your choice.

In the box:
1 SRAM Force® AXS Power Meter 2 x 12-speed incl. Direct Mount chainrings (WITHOUT bottom bracket)

Compatible bottom brackets:
SRAM DUB™ bottom bracket cups with BSA thread (product code: 2273154)
SRAM DUB™ bottom bracket cups PressFit 30 / BB30 (product code: 2273156)
SRAM DUB™ bottom bracket cups Pressfit BB86.5 Road (product code: 2285969)
SRAM DUB™ bottom bracket cups Pressfit BB386 Road (product code: 2285971)
