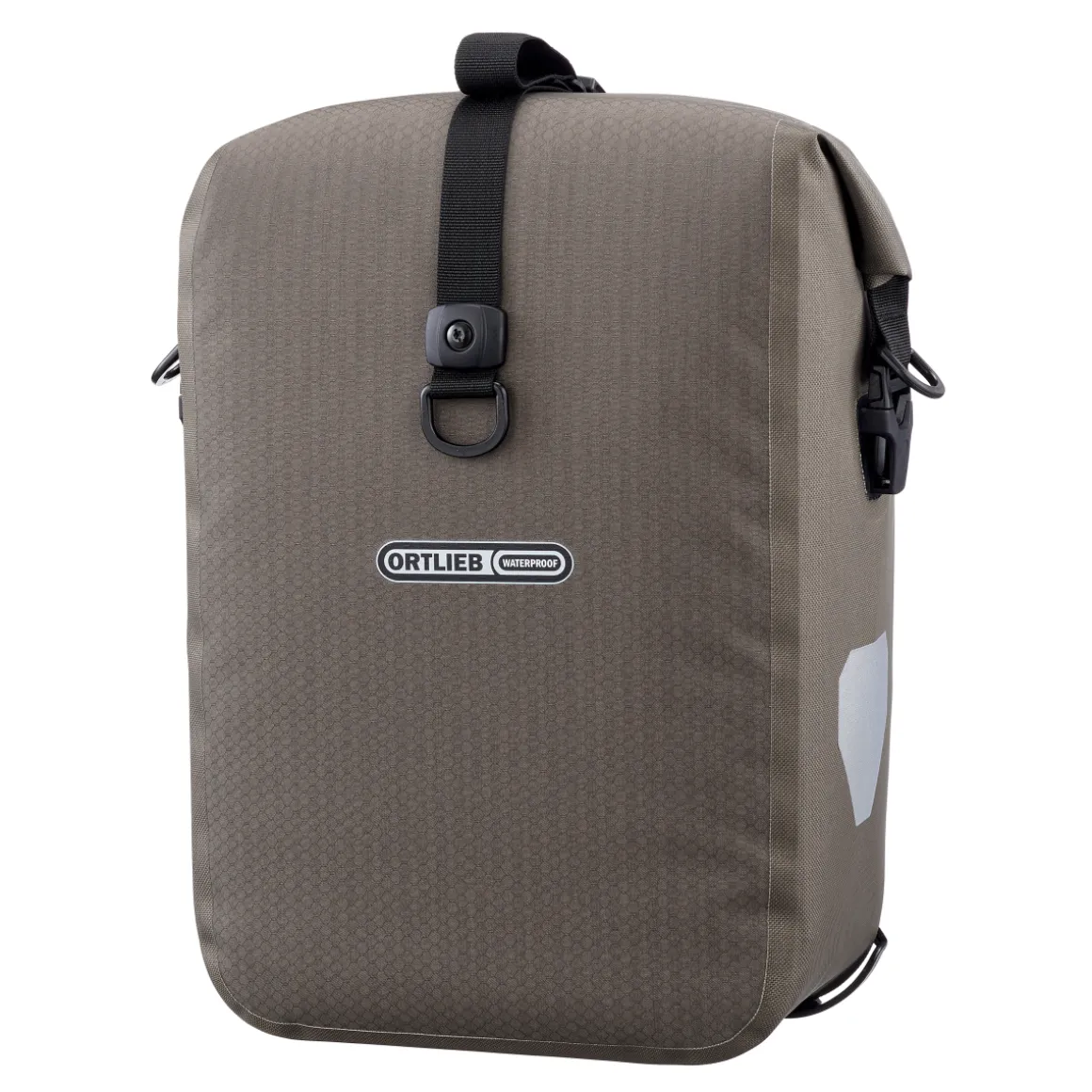

GRAVEL-PACK QL3.1 Pannier

The GRAVEL-PACK pannier from the ORTLIEB Bikepacking series comes with the practical QL3.1 attachment system. Once fitted, the main fastening elements of the mounting system remain directly on the rack for a smooth back of the bag and easy handling. If your luggage rack already has a holder for the QL3.1, attaching the bike bag is very easy. If not, you will also need the corresponding mounting set (optionally available under prod. code: 2256975).

This gravel bag is unbeatable for day tours and bikepacking adventures. The robust, waterproof and dustproof material protects up to 14.5 litres of equipment in the bag from dirt on uneven paths. Whether on the front or rear wheel – this pannier is multifunctional and ready for new routes!

Details:
• Compact and robust bike bag for the front or rear
• With QUICK-LOCK 3.1 suspension

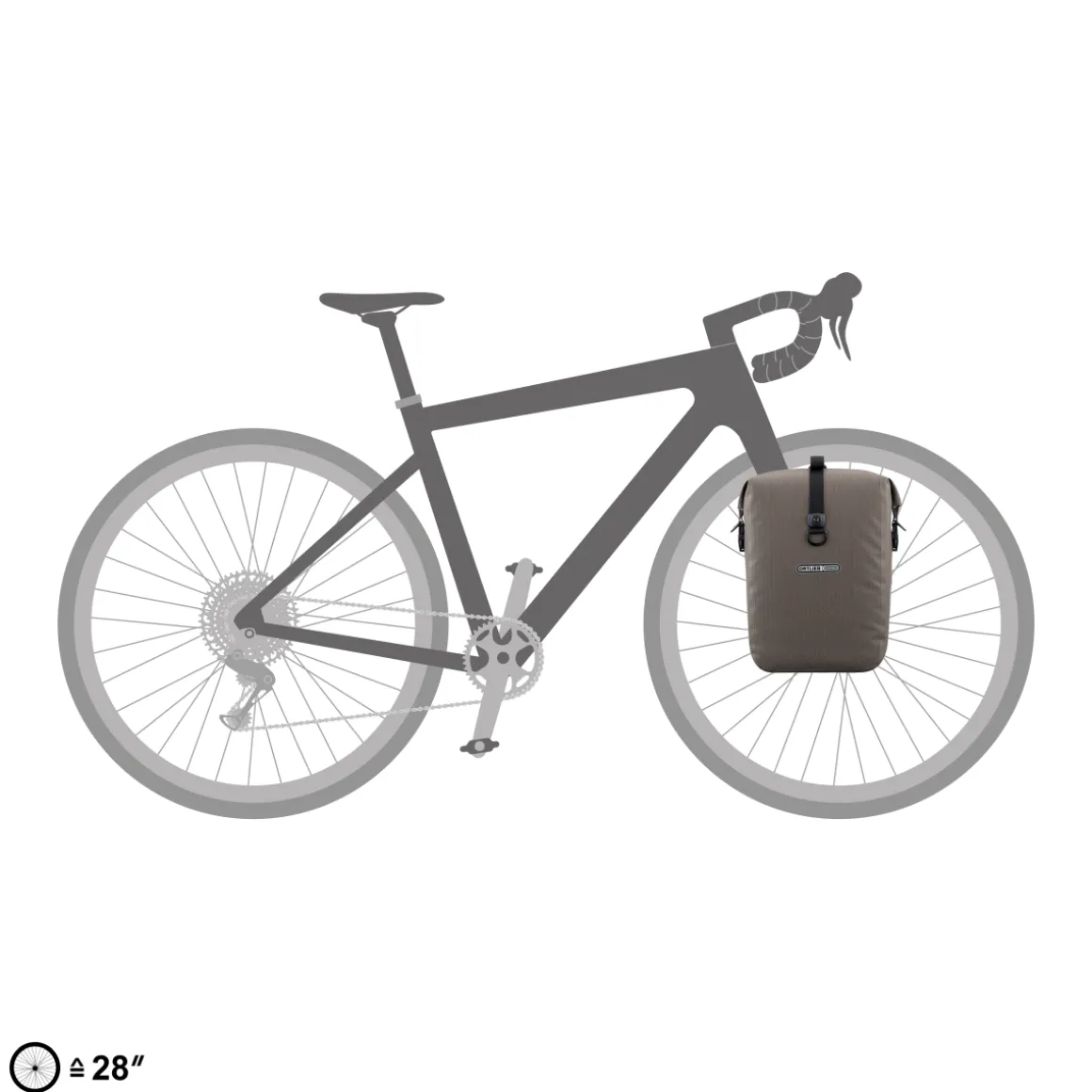

• For mounting on the rear wheel or front wheel carrier (lowrider)
• Attach and remove with just one hand
• With carabiners for attaching an optionally available carrying strap
• Dust and splash-proof in accordance with IP 64

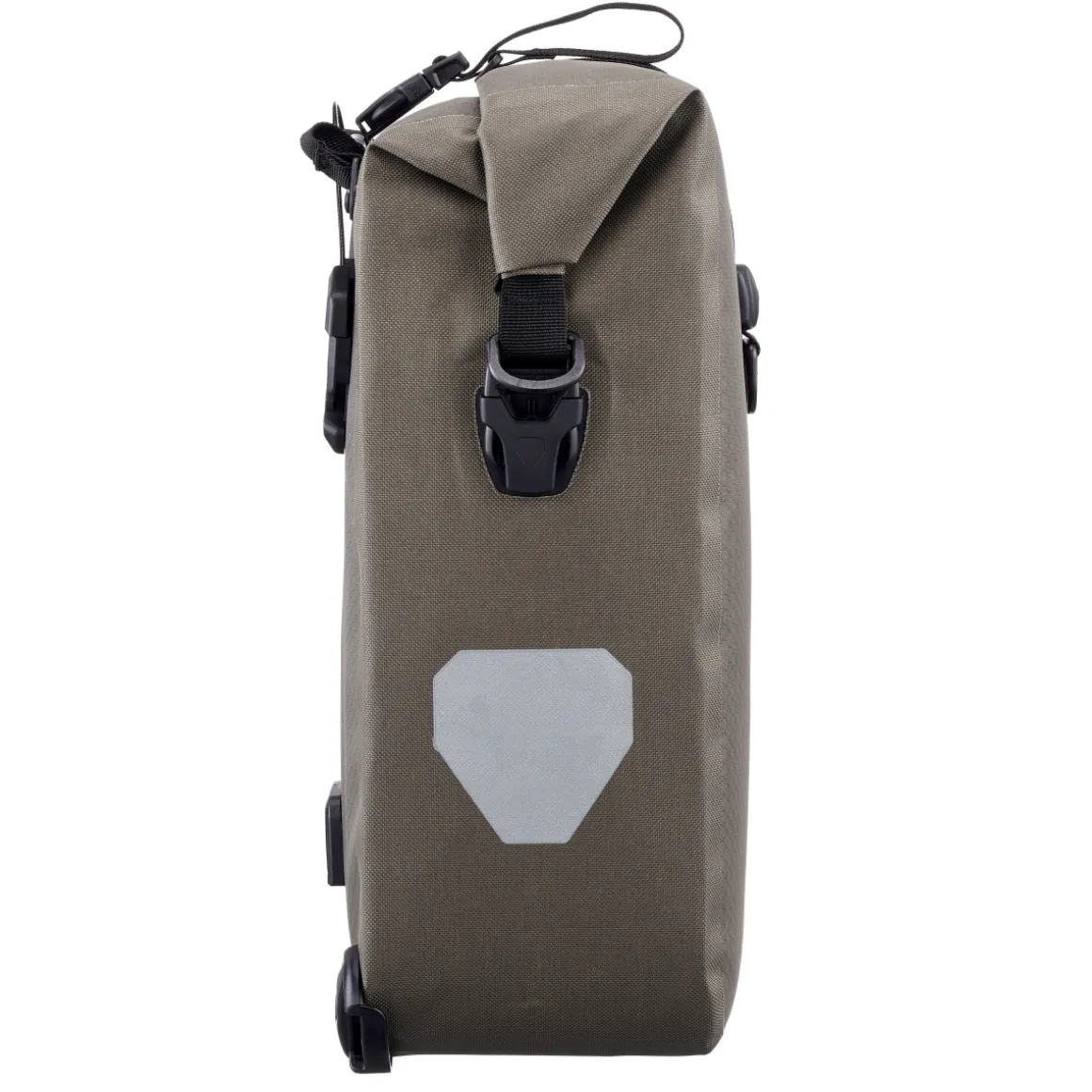

• Roll-top closure with plug-in fasteners for vertical fixation
• Practical carrying handle
• PVC- and PFC-free

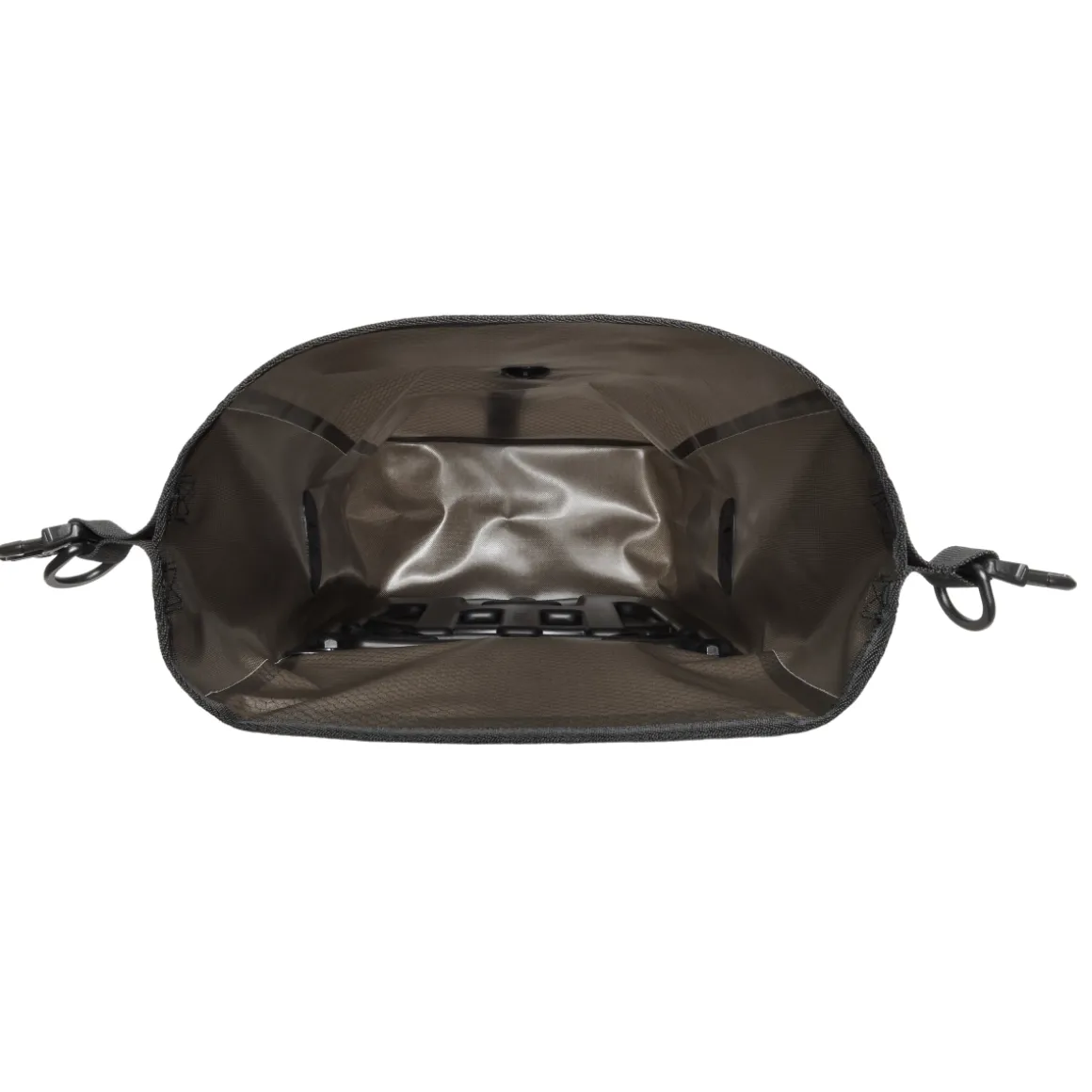

• Easy to clean inside
• Robust edge protection on the back
• Symmetric shape allows for use on the right or left side
• Reflective design elements

Technical details:
• Dimensions: approx. 37 x 26 x 16 cm (H x W x D)
• Volume: approx. 14.5 l
• Load capacity: max. 9 kg
• Protection category: IP64
• Weight: approx. 540 g

Note:
• Just one pannier included in the scope of delivery.
In order to reach protection standard IP64 (6=dustproof, 4=resistant to wheel spray coming from all directions) the roll-top closure must be folded down 3-4 times and fixed at the bottom.
• This bag is supplied without the QL3.1 mounting set, instead QL3.1 locking buttons are included. If your luggage rack is not equipped for QL3.1, you can order the mounting set under prod. code: 2256975 as an option.

In the box:
• 1 ORTLIEB GRAVEL-PACK Single Bikepacking bike bag (single bag)
• 1 ORTLIEB QL3.1 locking buttons set

Optional accessories (subject to availability):
• ORTLIEB PACKING CUBE Bundle (prod. code: 2332554)
• ORTLIEB PACKING CUBE size S or L (prod. code: 2332553)
• ORTLIEB COMMUTER INSERT FOR PANNIERS (prod. code: 2293515)
• ORTLIEB PANNIER STABILIZING INSERT for bike bags (prod. code: 2343700)
• ORTLIEB QL3.1 mounting kit for panniers (prod. code: 2256975)

Highlights & Technologies:

QUICK-LOCK3.1:

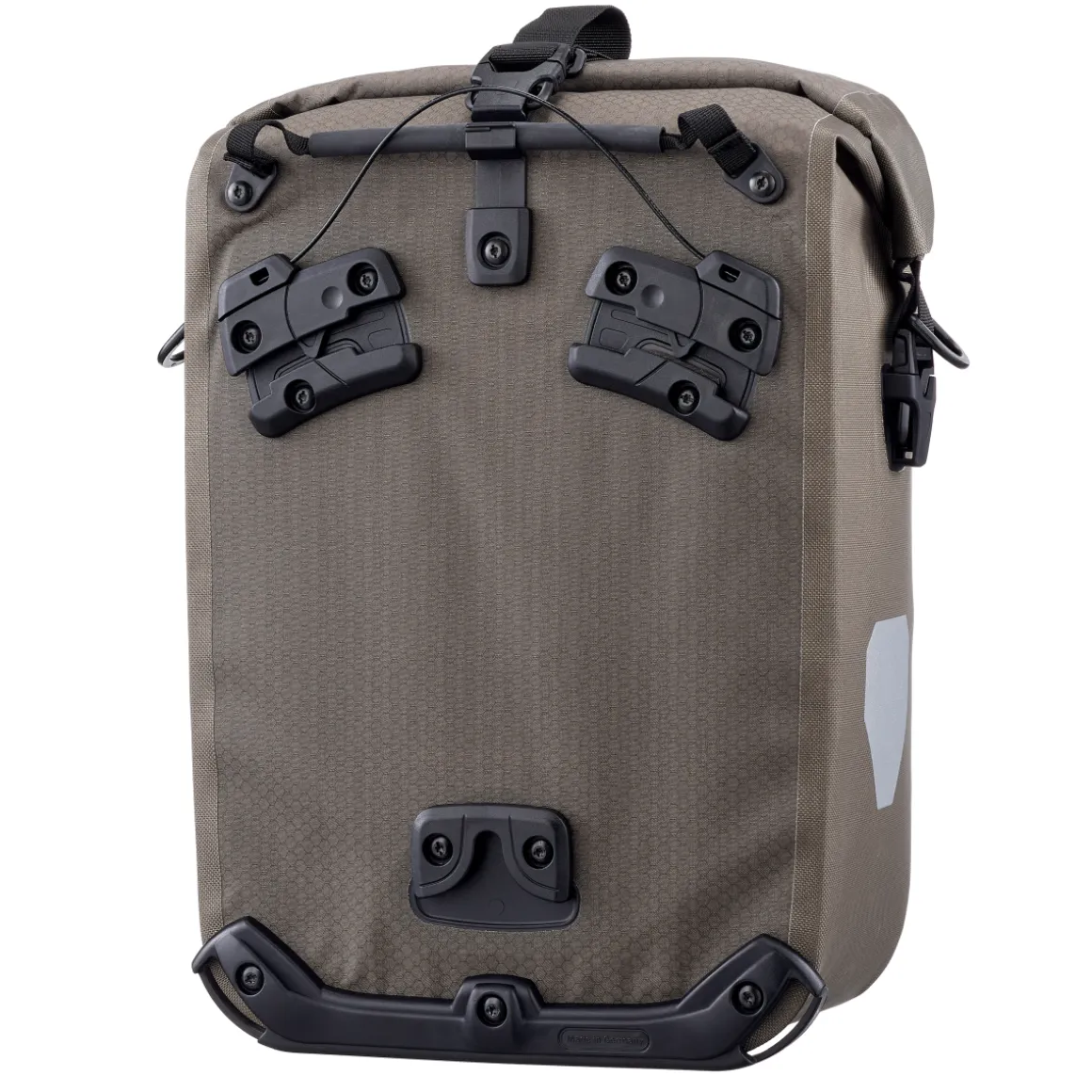

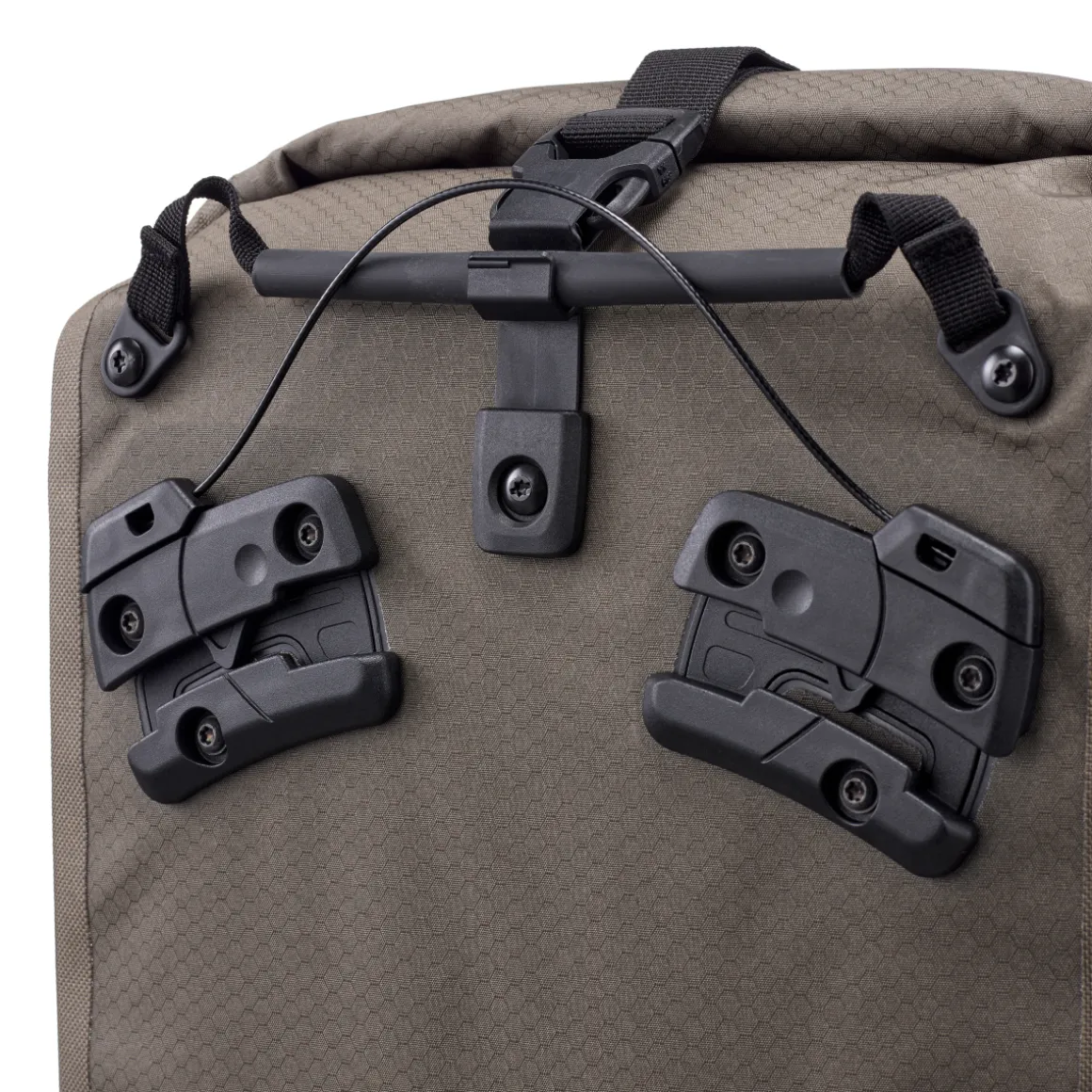

With this mounting system, the main supporting elements are fixed to the luggage rack. Thus, there are no large, protruding hooks on the back of the bag, which improves comfort.
The QL3.1 mounting system allows for quick and easy attachment of the pannier. Simply position the bag on the lower mounting point, move it towards the rack, swivel it in from the left or right and securely attach it to both mounts on top. Removing the bag is just as quick and easy: Simply lift the bag by the handle and simultaneously swing it either to the left or to the right, done!
• Comfortable single-handed operation
• Automatic locking and release of the hooks when lifting the bag by the carrying handle
• Direct mounting possible on luggage racks with integrated QL3/QL3.1 attachment

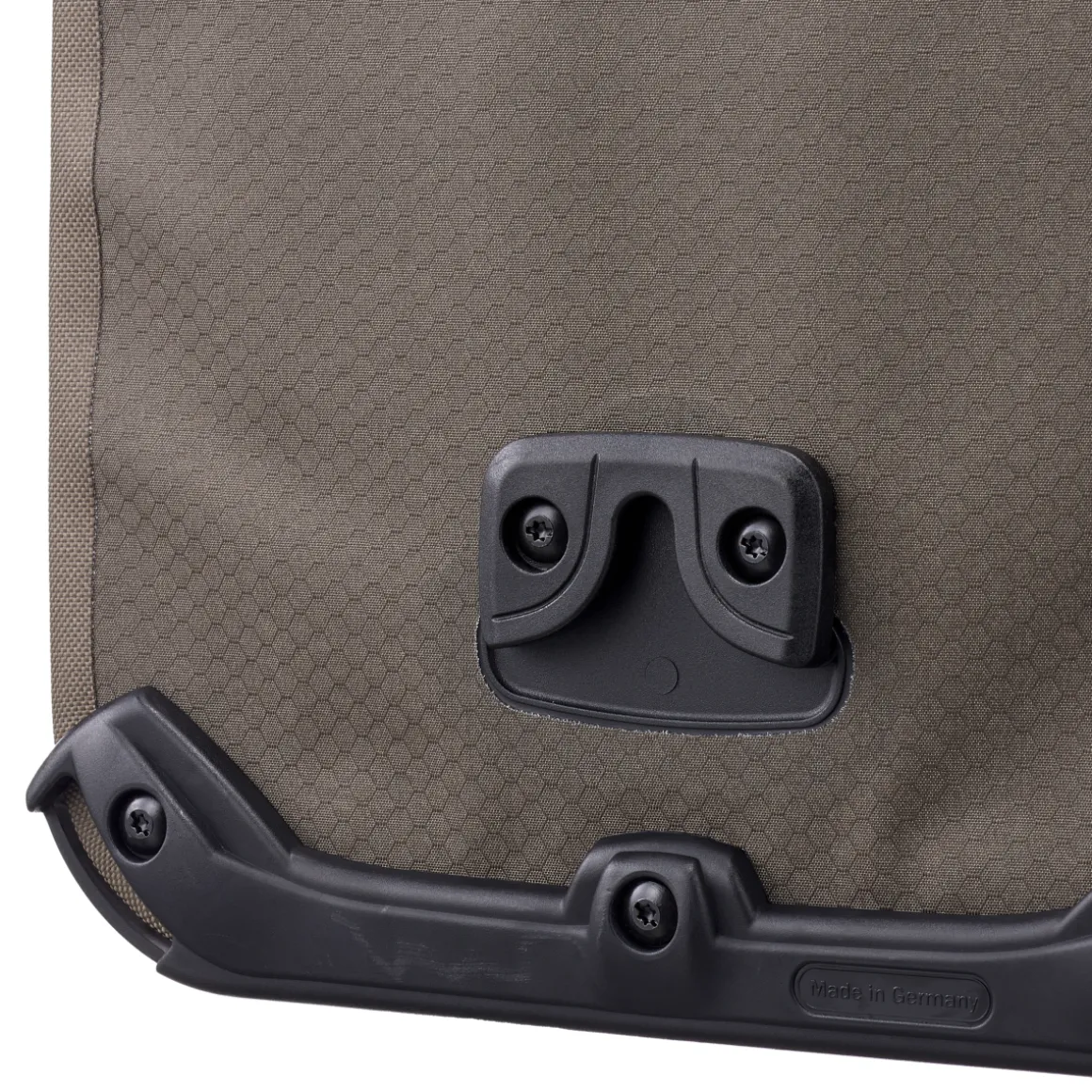

• Lower hook can be rotated 360 degrees (in 24 steps of 15 degrees each) for individual adaptation to a wide variety of luggage racks with tube diameters of up to 14 mm
• Horizontal rack top remains free for baskets, trunk bags etc.
• A separate mounting rail is required for luggage racks without an integrated QL3.1 device (optionally available under prod. code: 2256975 (subject to availability).

Note:
The reflective design elements attached as decorative elements do not represent a personal protective equipment as mentioned in EU regulation 2016/425. Thus, they are also not covered by the provisions of the regulation.
