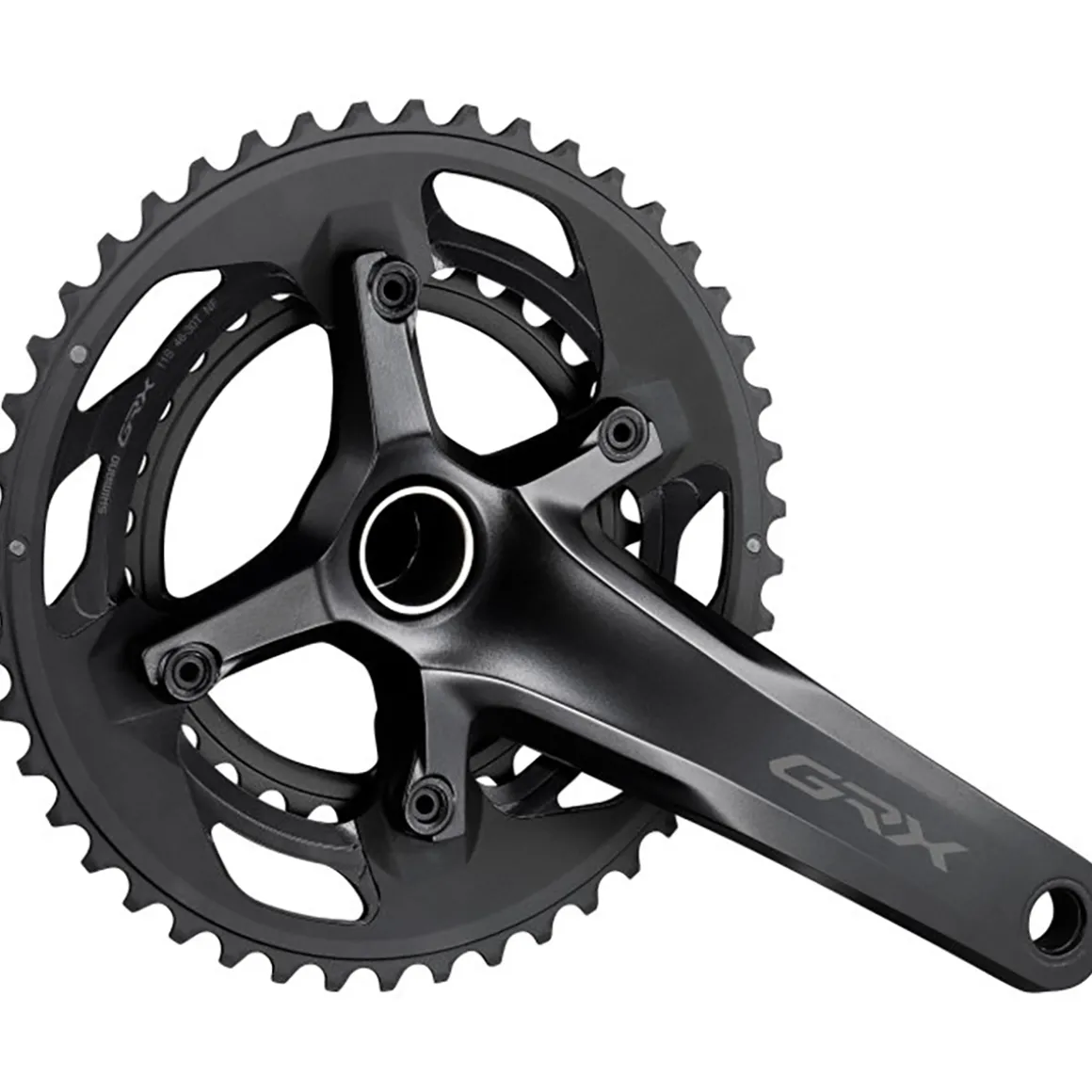

GRX FC-RX600 Hollowtech II Crankset 2×11

Explore beyond!
Discover the almost endless possibilities of modern road cycling with SHIMANO GRX components. The RX600 Series at 105 / SLX level represents the high-performance mid-range of the gravel- and cross-specific GRX groups.

While developing the GRX FC-RX600 crankset, SHIMANO’s developers have paid particular attention to the needs of modern cross, gravel and commuter bikes. Thus, the crankset for 2×11 speed drivetrains combines a 30-tooth chainring with a 46-tooth chainring – for a wider range of gears. A 2.5mm wider chainline compared to “traditional” SHIMANO road cranks provides space for large-volume tyres.

Details:
Wider range for long tours and unknown terrain
Optimal gear ratio for various requirements and riding styles

Specs:
Intended use: Gravel, Road, Cyclocross
Forged aluminium crank arms
Aluminium chainrings
Compatibility: 11-speed/double
Crankset with integrated BB axle
For a shell width of: 68 / 70 mm
Gear ratio: 46 – 30 teeth
Bolt circle: 110 mm/ 80 mm (asymmetric)
Chainline: 46.9 mm
Weight: approx. 816 g

Note:
Due to the chainline ONLY compatible with SHIMANO GRX front derailleurs!
SHIMANO GRX FD-RX815 front derailleur (product code: 2286344)

Available with:
170 mm crank arm length
172.5 mm crank arm length
175 mm crank arm length
Please make your choice.

In the box:
1x SHIMANO GRX FC-RX600 crankset (2×11 speed)
WITHOUT bottom bracket

Tip:
For the recommended BB-RS500 BSA bottom bracket cups, see product code: 2137335.
For BB-RS500 PressFit bottom bracket cups see product code: 2234045.
