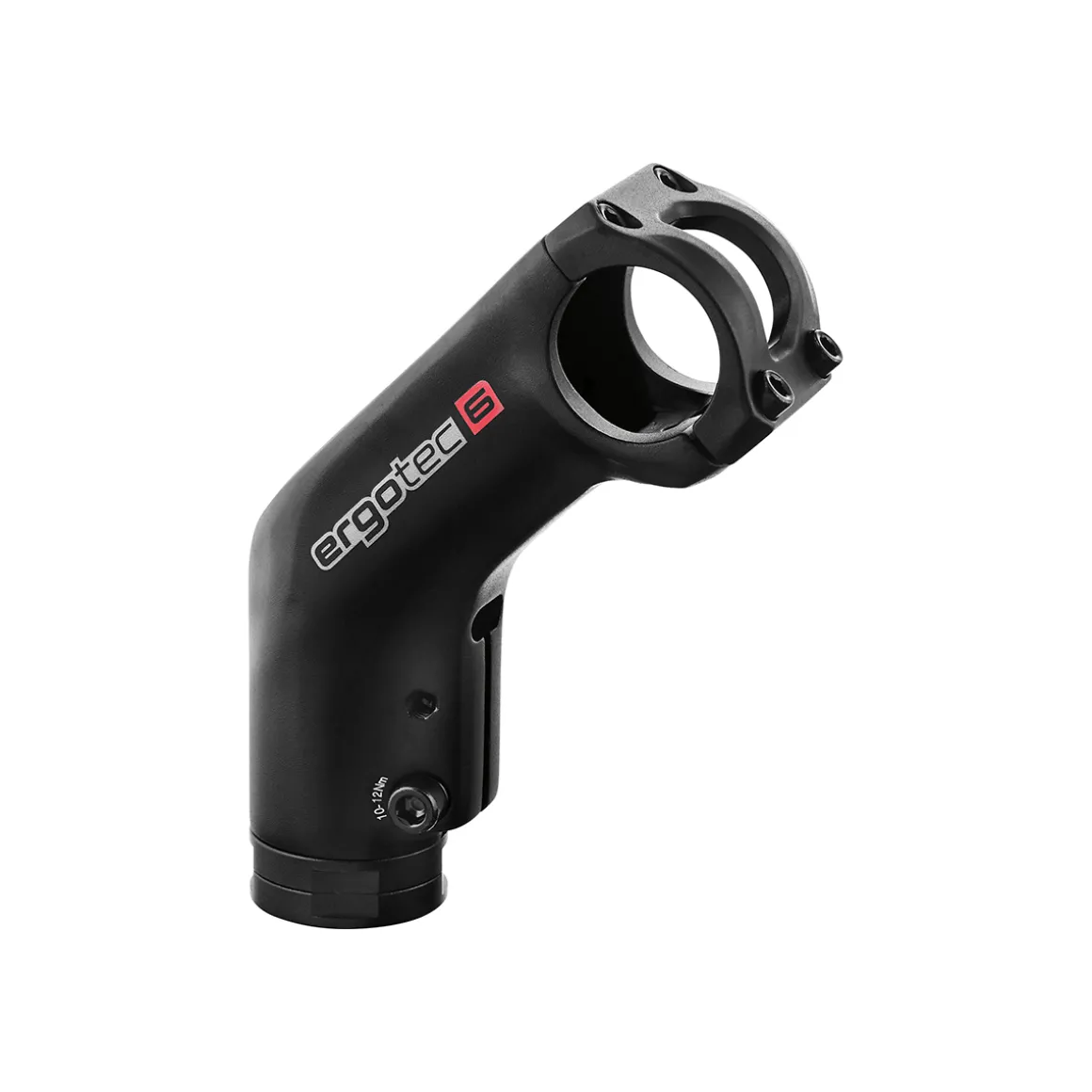

High Barracuda i Stem

Distinctive and purist: The design of the High Barracuda I stem by ergotec is inspired by the angular top tubes of modern bikes. So the stem perfectly blends in with the overall design of your bike. For a neat look, it allows for internal cable routing through the stem.

With a 45° rise, the ergotec High Barracuda stem allows for a relatively upright riding position. Since you can choose between a 90 mm and a 110 mm length, you can adjust your cockpit to perfectly suit your needs.

Details:
Robust Ahead stem for an upright riding position
Intended use: Urban/Touring
Integrated cable routing
ergotec Safety Level 6*

Specs:
Material: aluminium 6061 T6
4-bolt handlebar clamp with Ø 31.8 mm
Clamping height on steerer: 42+14 mm
Rise: 45°
For threadless forks with steerer outer Ø 28.6 mm
Length: approx. 90 mm/110 mm
Max. system weight (cyclist, bike and luggage): City/Touring (incl. e-bikes up to 25 km/h/15.5 mph) 180/160 kg, MTB/Race (incl. electric bikes) 120 kg
Weight: approx. 310 g (90 mm), approx. 340 g (110 mm)

In the box:
1x ergotec High Barracuda I stem

Tip:
The optionally available ergotec faceplate for Barracuda stems (product code: 2282158) allows you to fit a dynamo-powered front light directly to the stem.

*The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes. The ergotec Safety Level is always valid for the entire steering system. If stem and bars have a different safety level, the lower value will apply to the entire system.

ATTENTION:
Due to safety concerns, the manufacturer does NOT approve the use of the stem with carbon handlebars and/or carbon steerer tubes.
