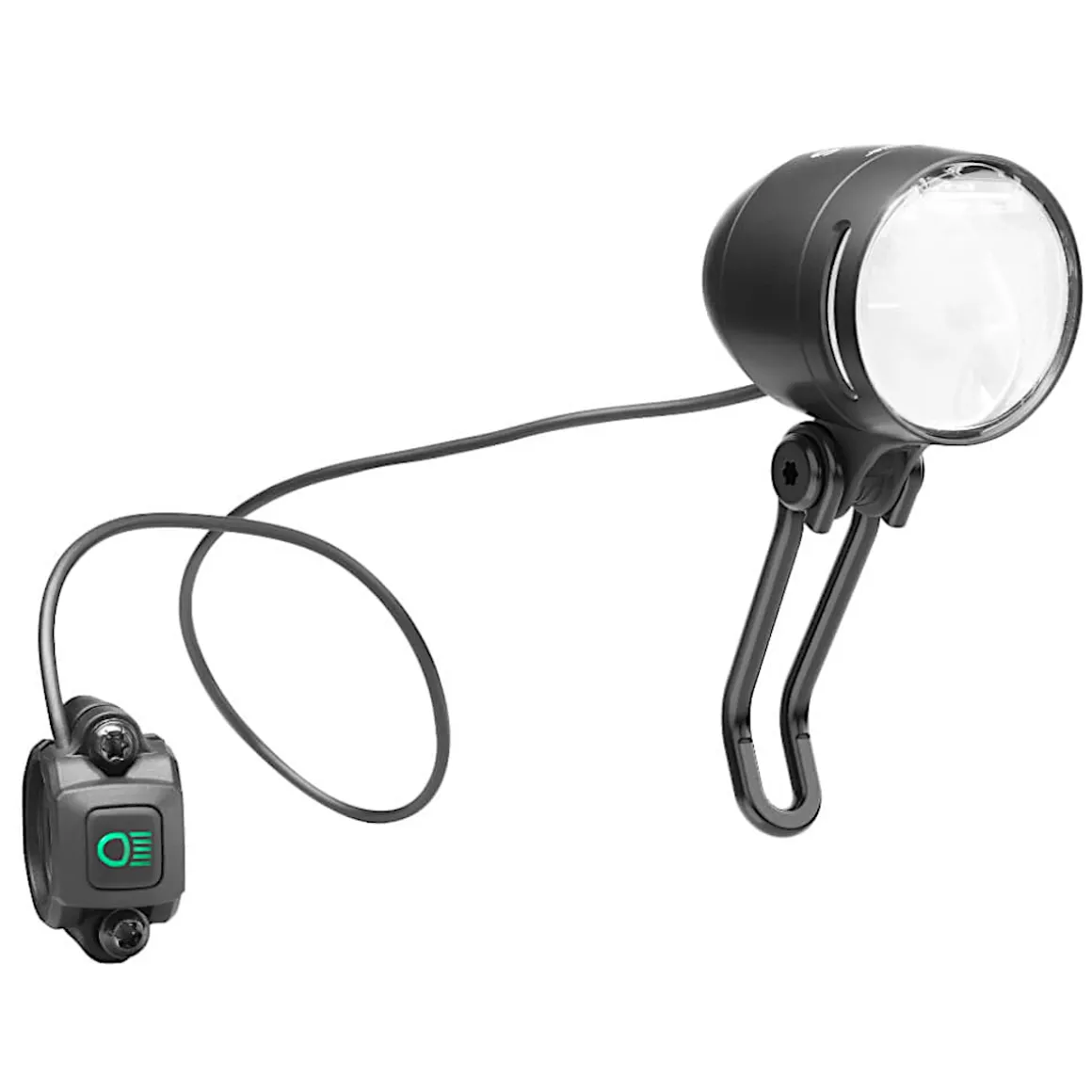

Lumotec IQ-XS E Highbeam E-Bike Headlight with High Beam Function

The tiny LUMOTEC IQ-XS E Highbeam headlight from Busch+Müller packs more light power than you might expect. Thanks to the switchable high beam, the powerful e-bike front light offers two different lighting settings for optimal vision in the dark.

The dipped beam ensures extremely bright and even road illumination. Just like any road-legal headlight, the IQ-XS E has an exact cut-off line when used in standard mode. By pushing the ergonomic handlebar button, the cut-off line is disrupted and a high beam is added for excellent long-range vision.

The high-quality aluminium housing and the filigree bracket turn the IQ-XS E into a real designer headlight. With its compact size, the front light also looks good on the cockpit. The optionally available aluminium handlebar bracket with prod. code 230755401 is suitable for handlebar installation.

Please note that the light outlet of your e-bike power supply must have a minimum power of 11 watts!

The LUMOTEC IQ-XS E Highbeam headlight by Busch+Müller is available in various versions with compatible plug-in connections for the motor to ensure correct connection to the on-board network (as of 2024):- Standard version for universal connection (e.g. to 12 volt Bosch, Shimano Steps, Brose)- Bosch eBike System 2 from 2013
– Bosch Smart System BES3 from 2021 (recognisable by System Controller, LED Remote or Purion 200 control unit)

Details:
Extremely powerful, compact e-bike front light
With high power LED
Handlebar button to activate high beam
Control diode for dipped beam mode (green) and high beam mode (blue)
Optimised LED cooling system
Overvoltage protection
IQ light technology for extremely large and even field of vision
Robust aluminium housing
Good lateral visibility thanks to two light strips
Protected against wheel spray and rain
Lamp holder for fork mounting made of coated stainless steel (can be rotated 180°)
Screw-on front reflector
According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h

Technical details:
Material: aluminium (housing), stainless steel (bracket), plastic
For e-bikes with light connection 9-48 volts direct voltage (DC)*
Cable length of control button for handlebar installation: approx. 55 cm
Light modes: dipped beam, full beam
Brightness dipped beam: 100 lux (7 watts)
Brightness full beam: 150 lux (11 watts)
Weight: approx. 120 g

*Tip:
The front light is compatible with a direct current power source (DC) of 9 to 48 volts. Some e-bikes can provide this, but NOT all do!
The light connection of the drivetrain system needs a minimum wattage rating of 11 W!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

In the box:
1 B+M LUMOTEC IQ-XS E Highbeam headlight (in selected version)
1 B+M high beam control button incl. cable

Note:
As the full beam shines straight ahead, they can cause glare for other drivers or cyclists. That’s why you should always dip your lights with oncoming traffic.
