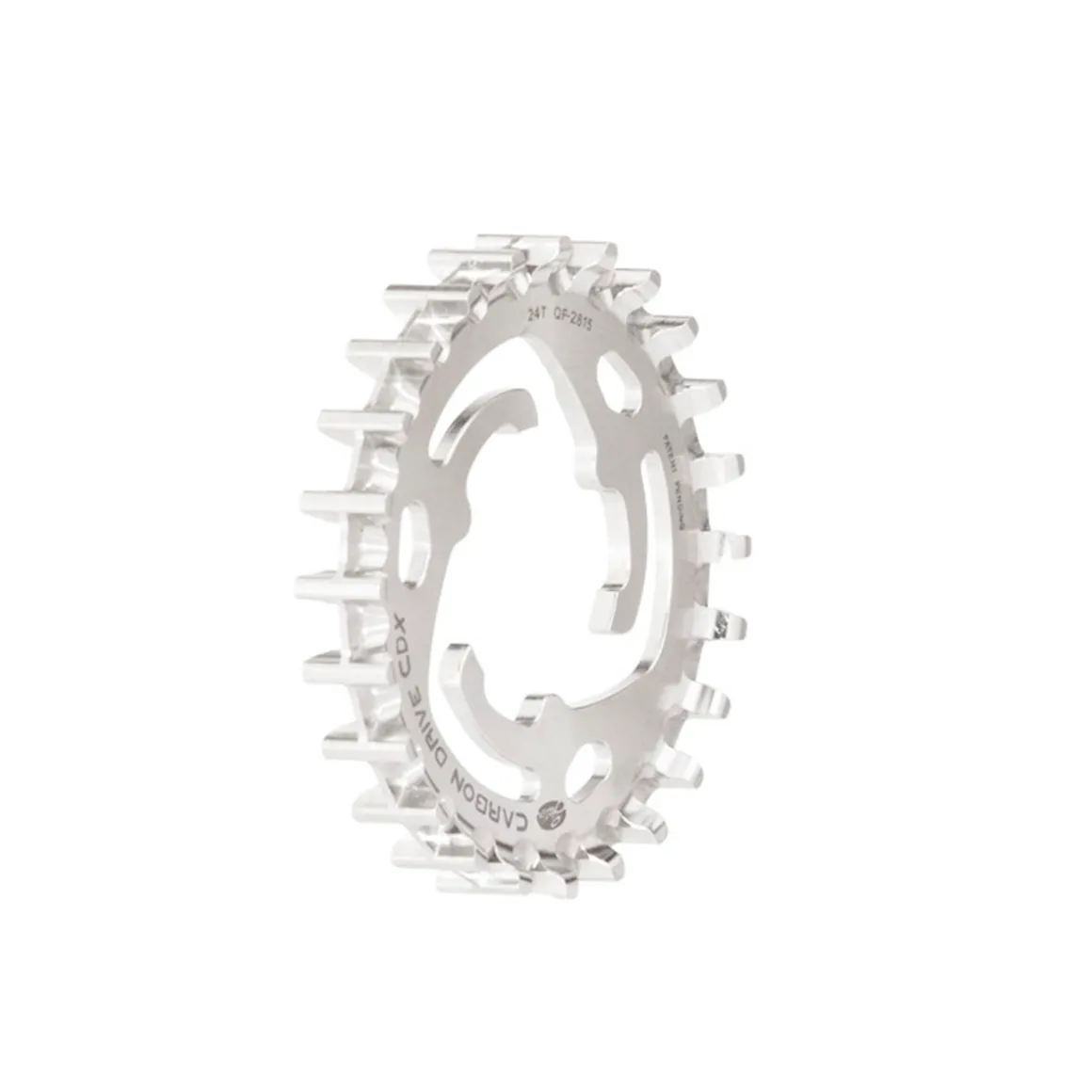

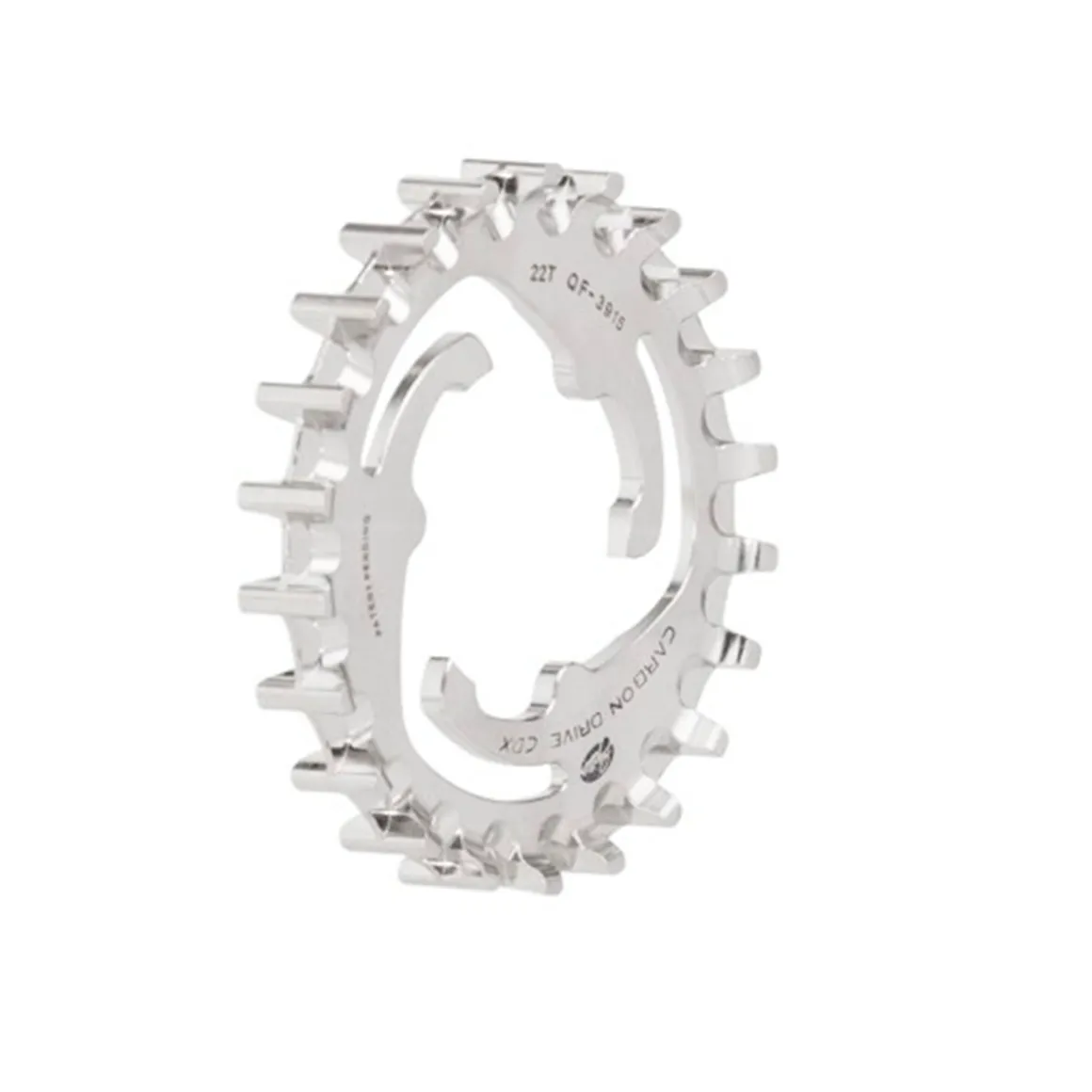

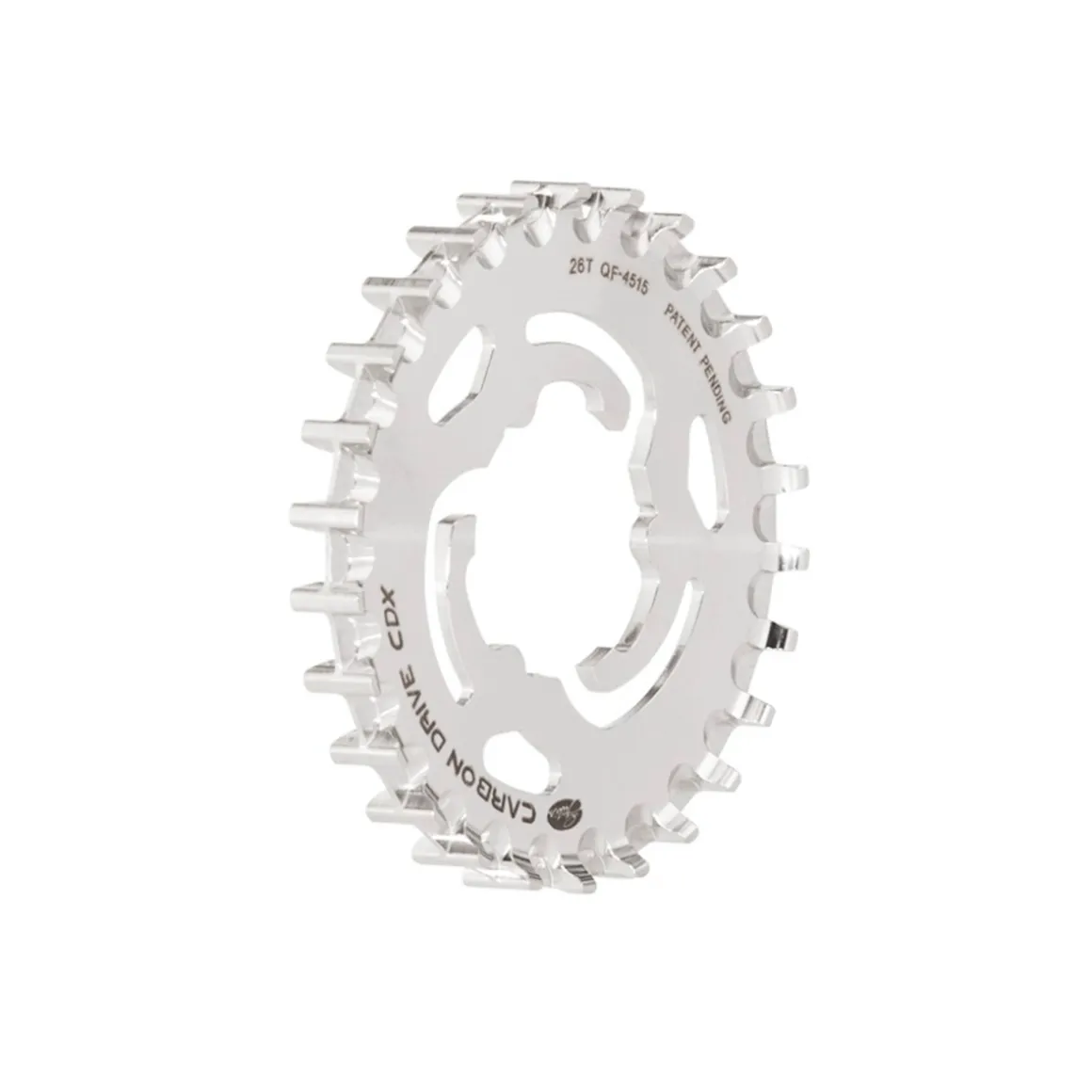

Rear Sprocket CDX CenterTrack Surefit Alfine/Nexus/SRAM

Being a bike drive system of a special kind, the Gates Carbon Drive belt system stands out for smooth running and low maintenance. For best belt drive performance, Gates offers special rear sprockets for the CDX system made from robust and stainless steel.
This version is suitable for installation on SHIMANO Alfine/Nexus and SRAM gear hubs.

Details:
• CDX version (high-end version for high loads and best performance)
• For mud, sand, snow and ice as well as for all road conditions
• Groove in the centre (CenterTrack)

Compatibility:
• SHIMANO Alfine 8 and 11 speed
• SHIMANO Nexus 3, 7 und 8 speed
• SRAM Automatix
• SRAM i-Motion 3
• Sturmey-Archer

Technical details:
• Intended use: mountain bikes, e-bikes (front, mid and rear drive motor) and touring bikes
• System Gates CDX
• Material: stainless steel
• Use: at the rear (sprocket)
• Mount: Surefit Interface (3-lobe mount)
• Belt line: approx. 43.7 mm
• Pitch: approx. 11 mm

Available in size:
• 22 teeth
• 24 teeth
• 26 teeth
Please indicate your choice.

In the box:
• 1 Gates Carbon Drive sprocket CDX Surefit Alfine/Nexus/SRAM (rear)

Tip:
For the Gates SureFit tool see product code: 1597050001.

Manufacturer: GATES CORPORATION, 1144 FIFTEENTH STREET SUITE 1400, CO 80202 Denver, USA, de.gatescarbondrive.com/
Responsible person: GATES GMBH, EISENBAHNWEG 50, 52068 Aachen, Deutschland
