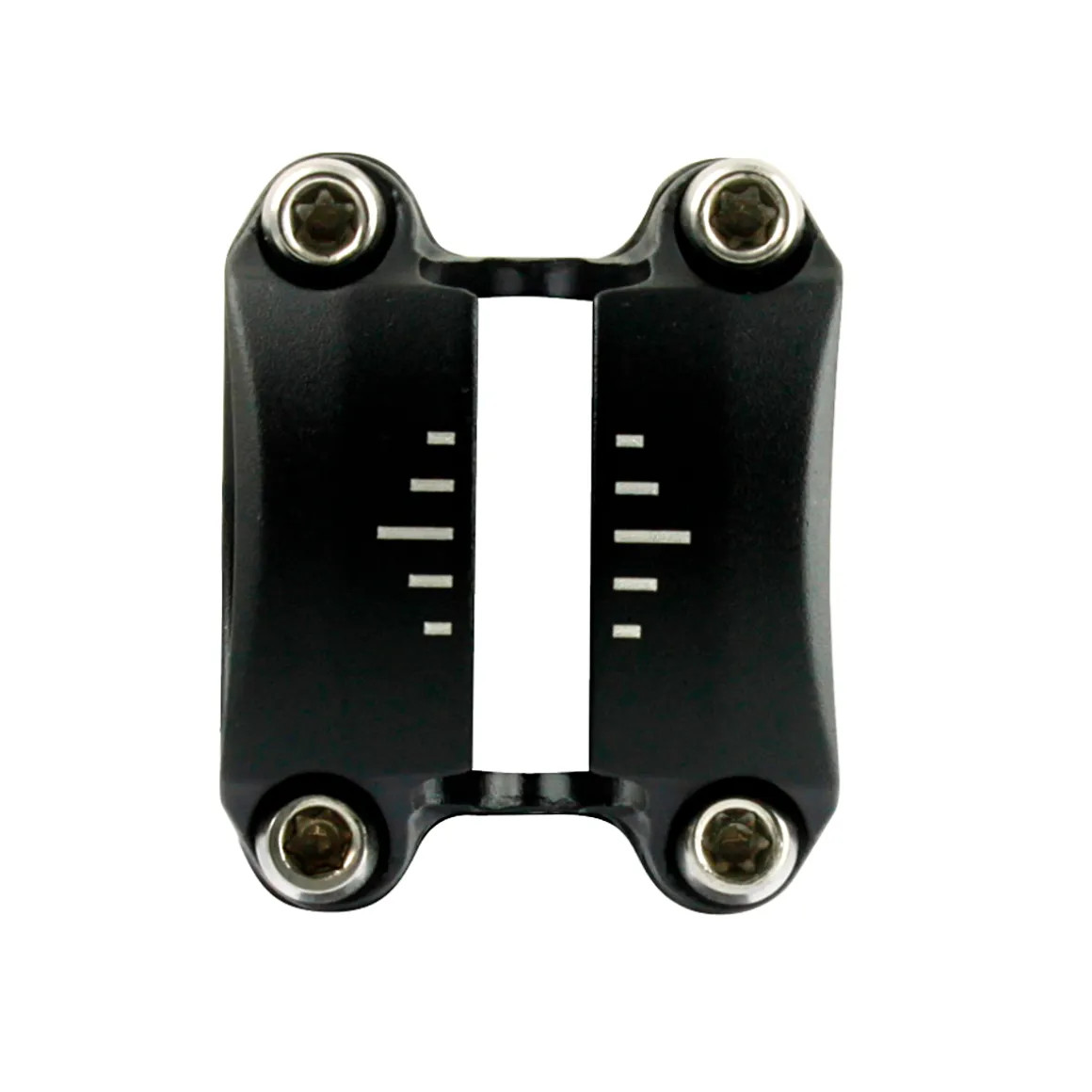

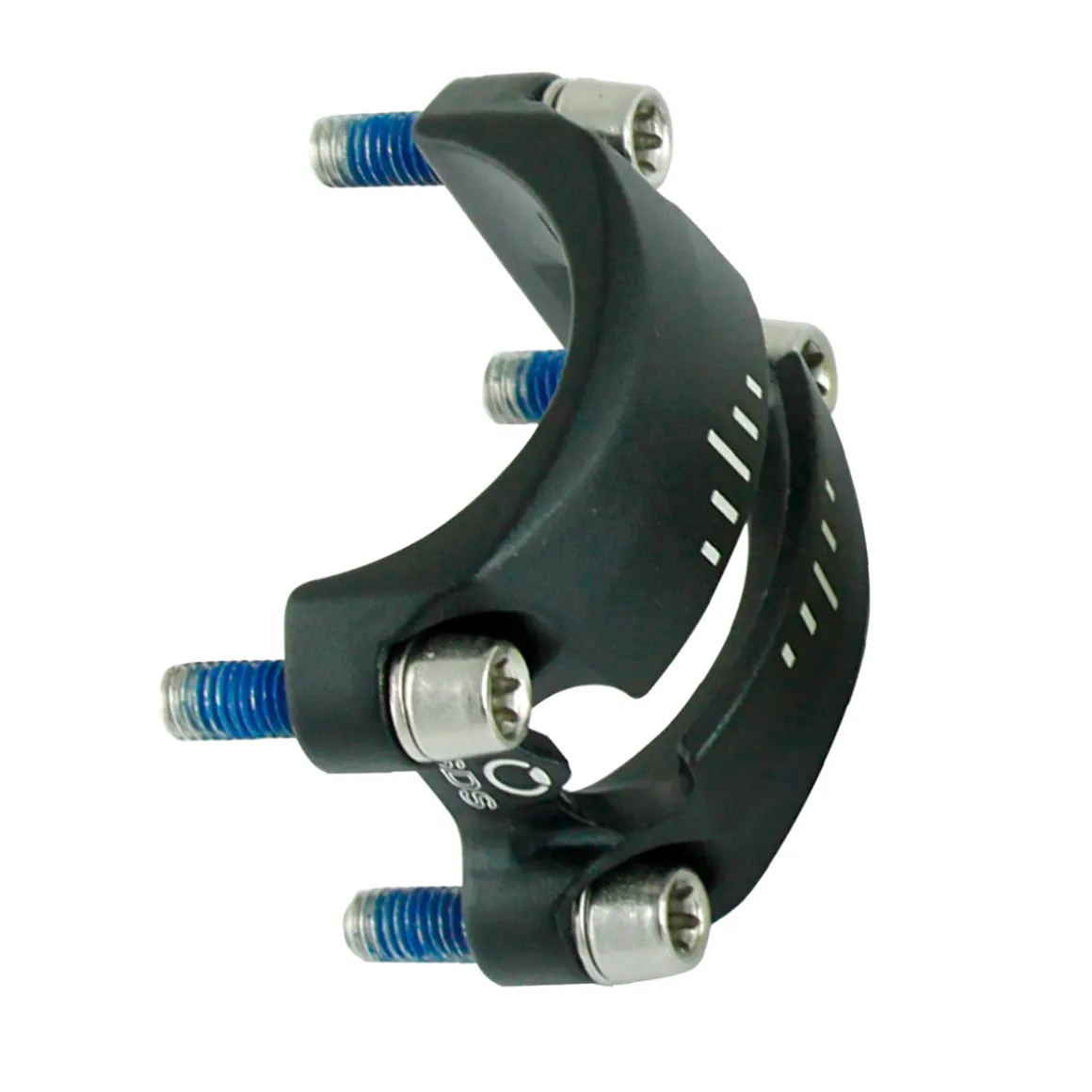

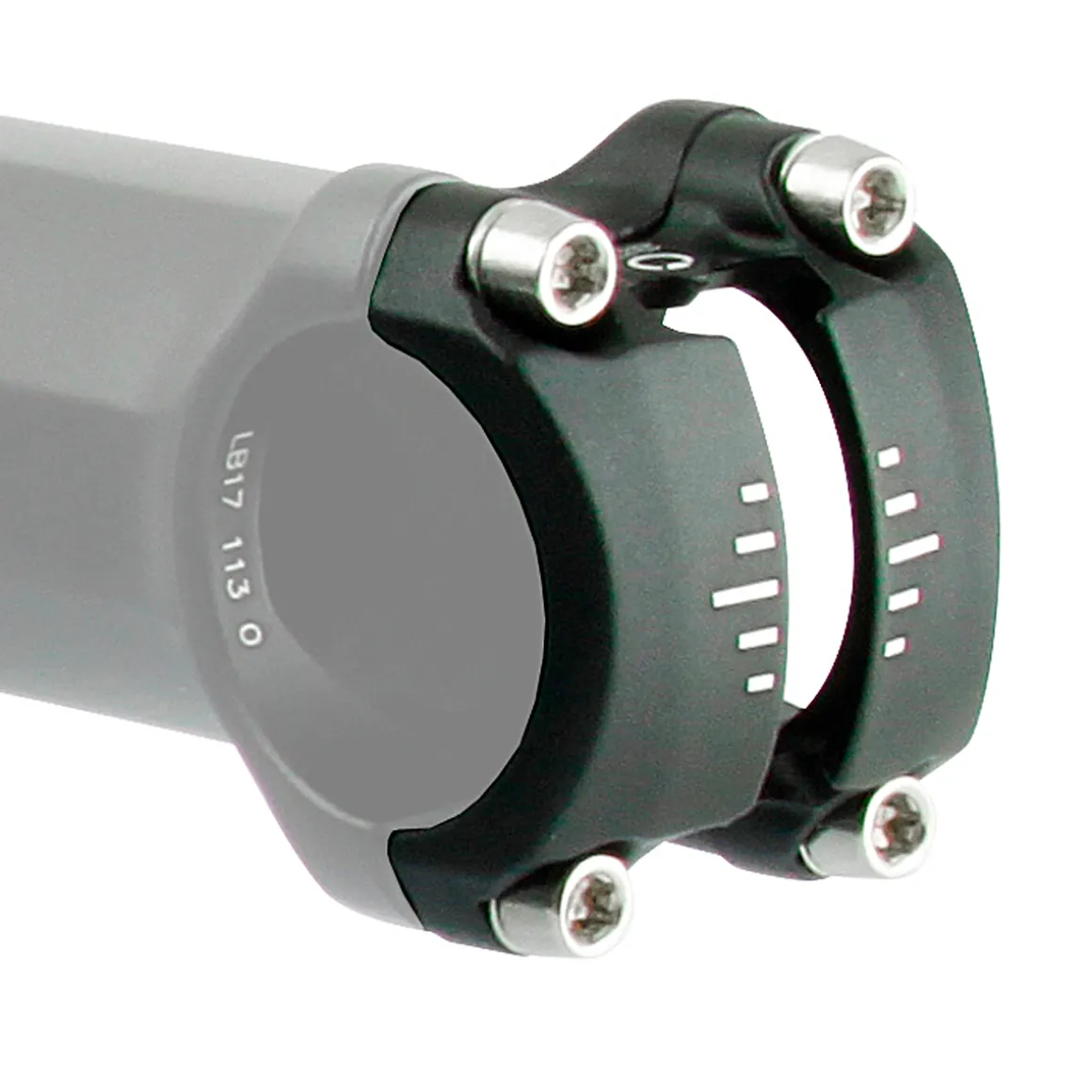

SDS front cap for 4-bolt stem adapter plate Ø 31,8 mm

Keep everything in view. The specially designed 4-bolt SDS clamping plate allows you to mount appropriate adapters with mounts for different accessories or parts. These mounts can be installed and positioned directly at the front cap. It’s not required to remove the handlebar to mount the SDS connectors. Instead, you can simply slide the adapter into the mount of the 4-bolt SDS front cap with the handlebar installed and fix it in the desired position.

This means you can easily mount and position accessories at the front cap. Thus, bottle cage, light, GPS device and other accessories will find their perfect place at the centre of the bar.
Last but not least, the adapter can also be easily mounted on oversized stems with the same bolt spacing.

Details:
SDS stem adapter plate
For installation of the SDS Basic adapter
4-bolt
Bolt spacing: 40 / 27 mm
Handlebar clamp: Ø 31,8 mm
Material: forged aluminium, anodized

Note: Compatible with by.Schulz Stem, Twist and other oversized stems with the same bolt spacing.
