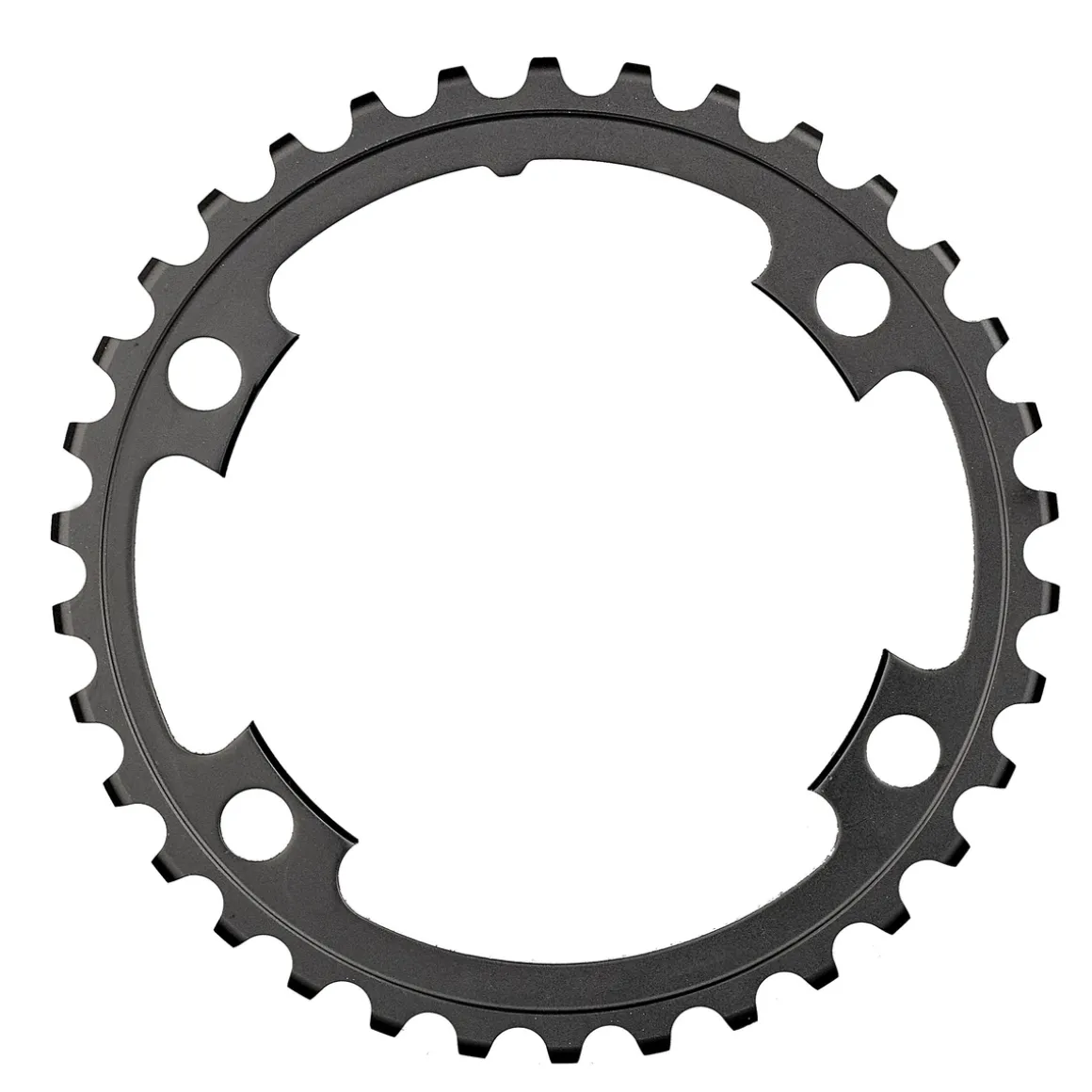

Tiagra FC-4700 chainring

SHIMANO TIAGRA double/10-speed chainring suitable for TIAGRA FC-4700 crankset (product code 2137645).

SHIMANO part #: Y-1RC34000
No. of teeth: 34 teeth (for 50 teeth)
Bolt circle Ø: 110 mm
Label: MK
Material: aluminium, anodized

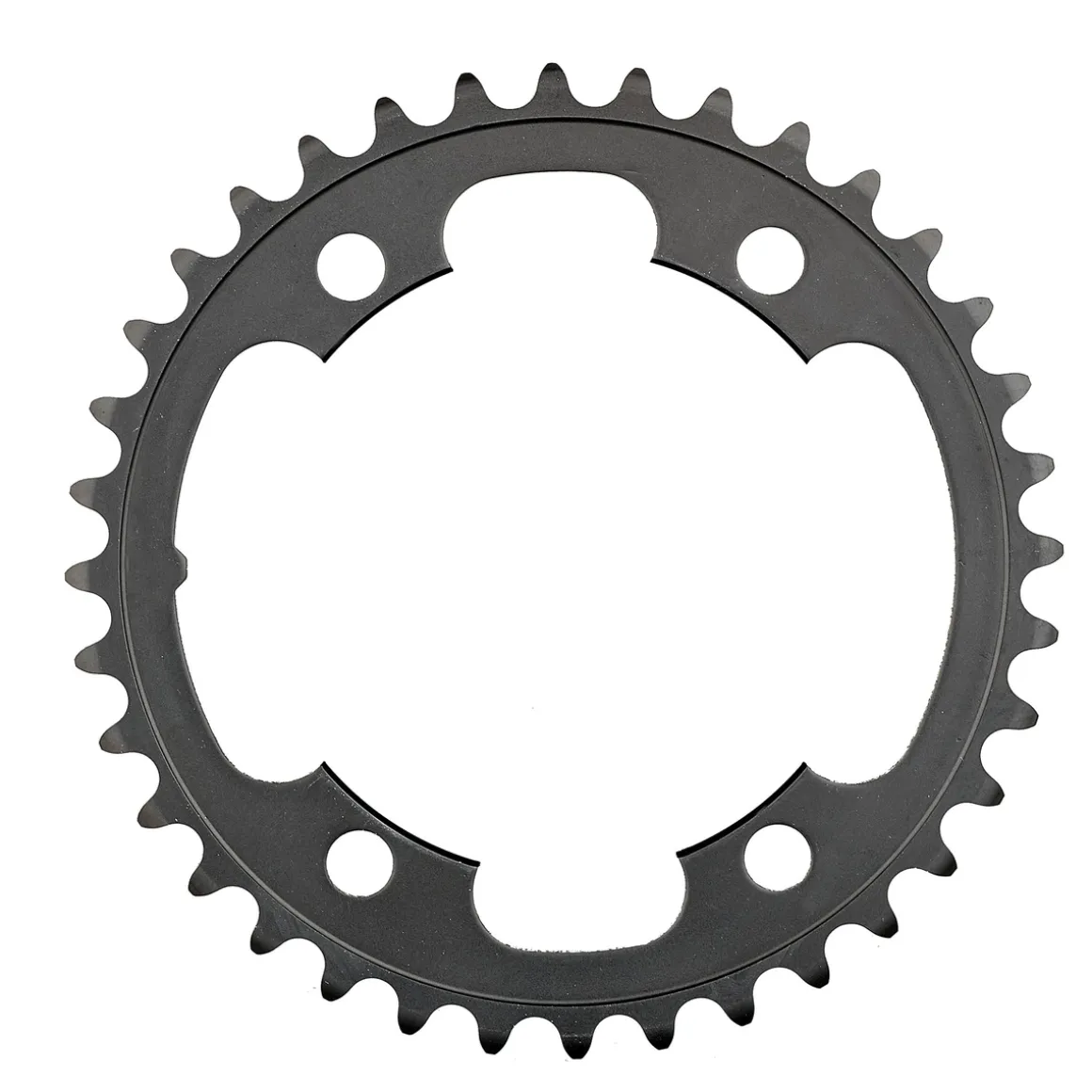

SHIMANO part #: Y-1RC36000
No. of teeth: 36 teeth (for 52 teeth)
Bolt circle Ø: 110 mm
Label: ML
Material: aluminium, anodized

SHIMANO part #: Y-1RC98050
No. of teeth: 48 teeth (for 34 teeth)
Chain lifters for best shifting performance
Bolt circle Ø: 110 mm
Label: MK
Material: aluminium composite

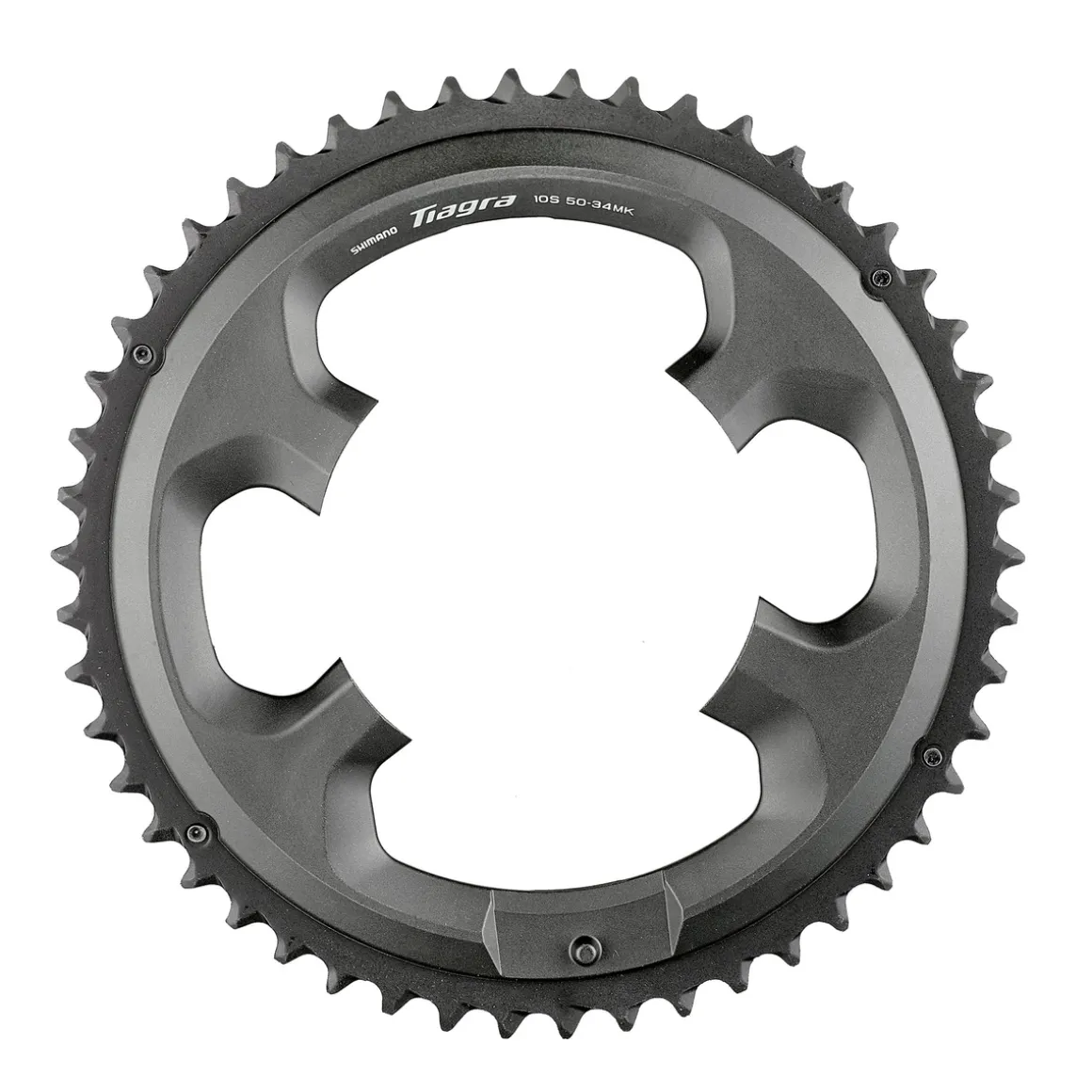

SHIMANO part #: Y-1RC98050
No. of teeth: 50 teeth (for 34 teeth)
Chain lifters for best shifting performance
Bolt circle Ø: 110 mm
Label: MK
Material: aluminium composite

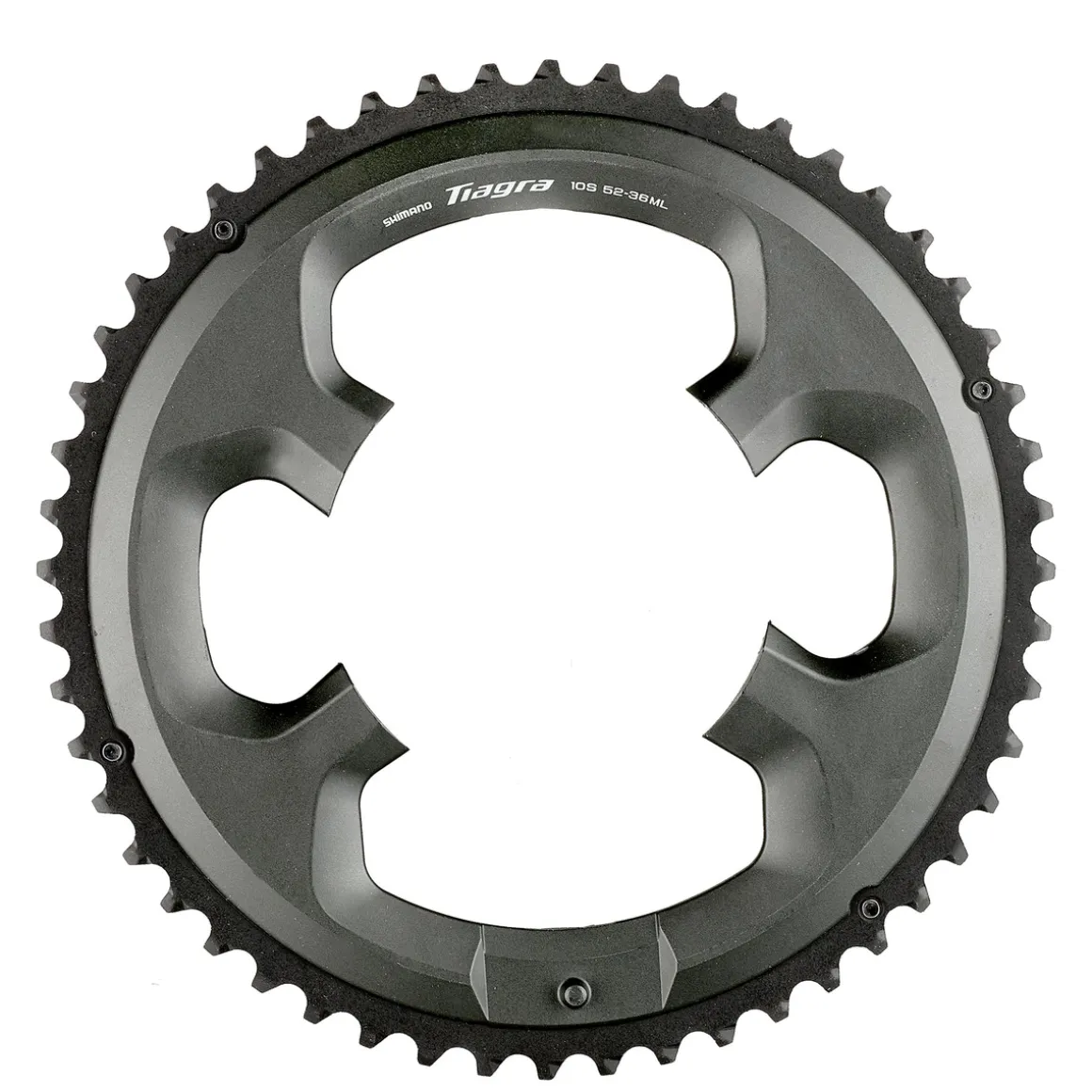

SHIMANO part #: Y-1RC98060
No. of teeth: 52 teeth (for 36 teeth)
Chain lifters for best shifting performance
Bolt circle Ø: 110 mm
Label: ML
Material: aluminium composite

In the box:
1 SHIMANO TIAGRA FC-4700 Chainring
