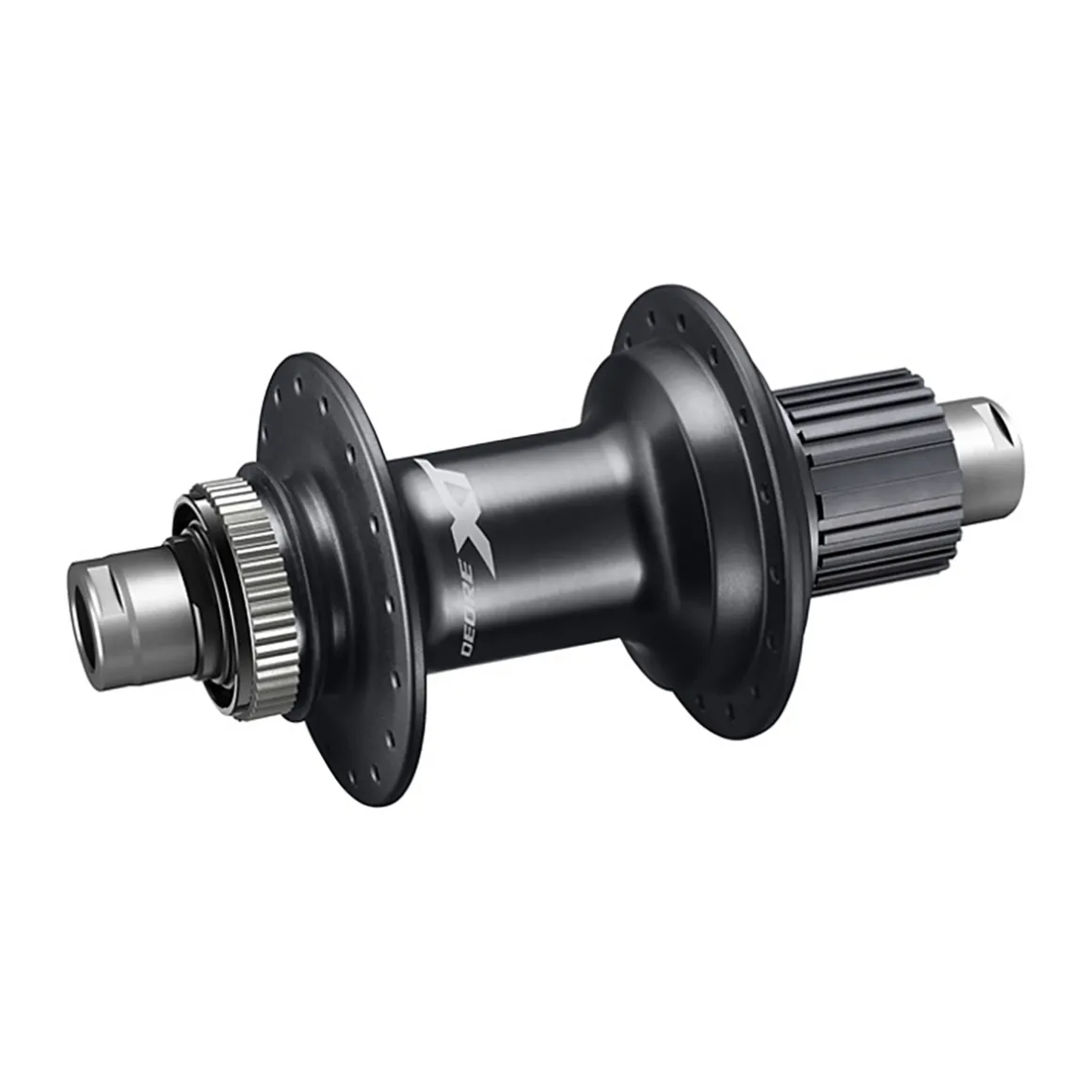

XT FH-M8110-B Disc Boost Micro Spline Rear Hub

SHIMANO brings 12 speed compatibility to Deore XT level and equips the XT FH-M8110-B BOOST rear hub for disc brakes with the special MICRO SPLINE freehub body. This allows you to fit SHIMANO 12-speed cassettes that offer an enormous gear range when used with a small 10-tooth sprocket.
Instead of classic pawls, SHIMANO uses a robust star ratchet hub as freehub technology. This freehub impresses with 7° engagement. This means less free travel and more direct power transfer.

Details:
SHIMANO MICRO SPLINE freehub body
Freehub technology with star ratchet system (Ratchet System, max. engagement 7°)
Special CBN precision machining process (Cubic Boron Nitride) of the cone races for low rolling friction and high durability

Specs:
Micro Spline cassette mount for SHIMANO 12-speed cassettes
Brake disc mount: Center Lock
For 12 mm thru axle (E-Thru System)
Hub width: 148 mm (BOOST)
32 hole
Bearings: sealed with labyrinth and contact sealing
Hub body, axle and freehub body: anodised aluminium
Flange Ø: 68.8 / 69.8 mm
Flange spacing: 62.16 mm
Offset: 6.6 mm
Pitch Circle Ø (P.C.D.): 60 / 61 mm
Weight: approx. 307 g

ATTENTION:
Only compatible with SHIMANO Micro Spline 12-speed cassettes.
In the box:
1x SHIMANO Deore XT FH-M8110-B rear hub (BOOST)
